For Russian electrical engineers, the choice of a current transformer is not only the choice of the right ratio. In real projects, engineers are often in the cabinet with limited space, thick cables or rails, different load currents and the need for a reliable connection of meters, analyzers or protective devices. For low voltage switches, distribution plates, power control cabinets and industrial appliance systems, HEYI MSQ-60 offers a convenient KT solution for current measurement, performance monitoring and appliance protection.

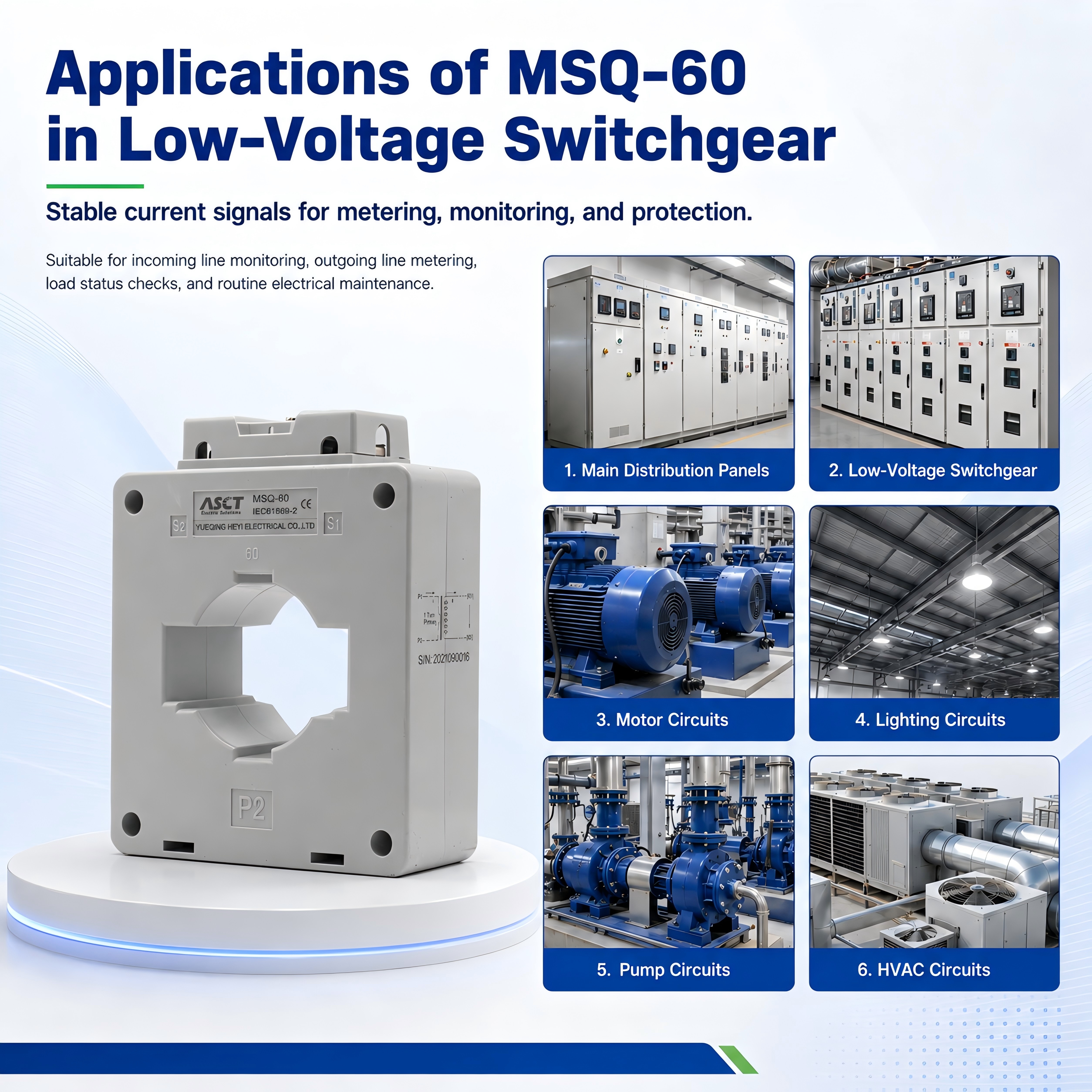

1. How can the MSQ-60 support low voltage applications?
Low voltage switches are widespread in Russian factories, commercial buildings, facilities and infrastructure projects. These cabinets typically include inputs, outputs, lighting lines, motors, pumps and air conditioners.
For projects that require a compact current transformer for switchgear, the MSQ-60 helps ensure stable current signals for meters, analyzers and protection relays. It can be used to monitor the input power supply, to measure the output circuit, to check the state of charge and for daily electrical maintenance.
Typical applications are:
Main distribution cabinets
low voltage switch
training schemes
Lighting schemes
pump schemes
HVAC systems

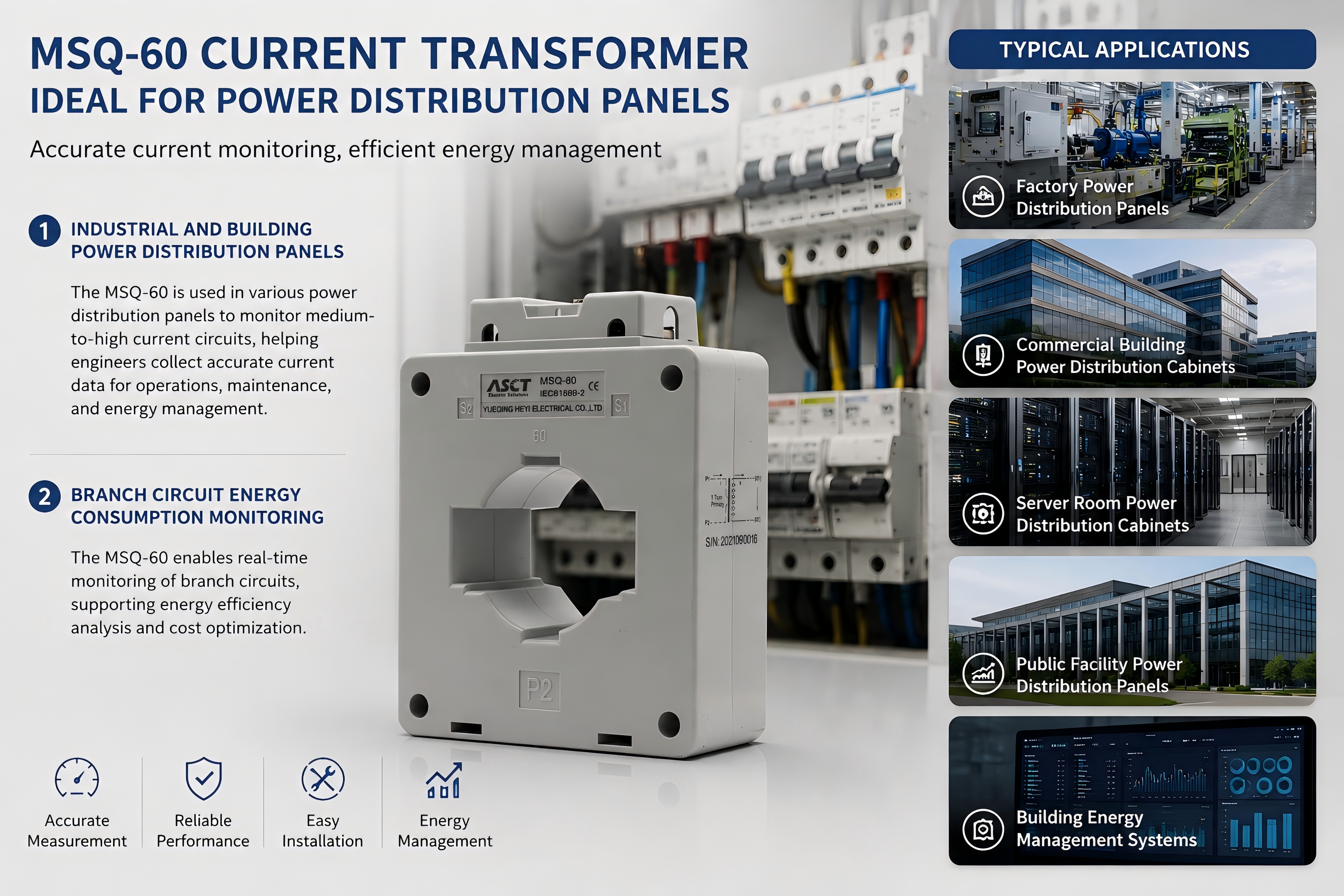

2. Why is MSQ-60 suitable for power distribution panels?
2.1 Factory and building distribution plates
Electricity distribution panels are widespread in Russian factories, workshops, office buildings, shopping centers, public buildings and industrial parks. These panels distribute energy for lighting systems, elevators, air conditioners, pumps, production facilities and other electrical loads.
The MSQ-60 can be used as a low voltage current transformer for distribution panel applications It helps engineers control medium and high electrical circuits and gather up-to-date data for operation, maintenance and energy management.
2.2 Energy monitoring of the branch scheme
In commercial and industrial buildings, engineers often have to check different schematics separately. For example, lighting systems, air conditioners, pumping systems and production facilities may require independent current measurement.
By connecting the MSQ-60 to power meters or controllers, engineers can better understand energy consumption in different areas and energy management. Improve.
Typical applications are:
Factory distribution plates
Commercial construction electrical cabinets
Distribution cabinets
Electric panels of public objects
Building energy supply systems

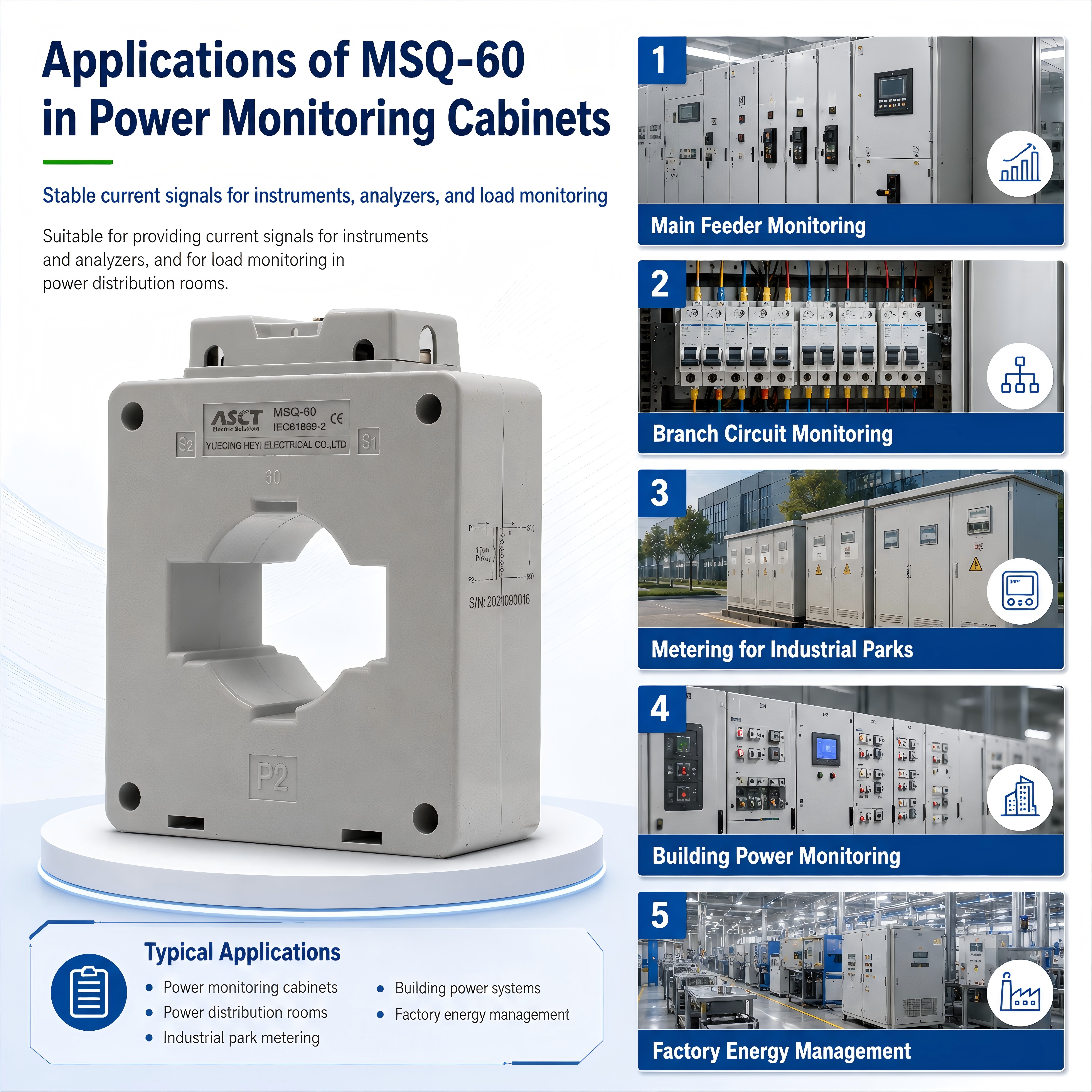

3. How does the MSQ-60 work in control cabinets for power monitoring?
3.1 Current signals for meters and analyzers
Power monitoring cabinets are used to obtain electrical data from energy meters, power meters, multifunction meters, performance analyzers and energy management systems. In these systems, KT is important because measuring devices require stable secondary current signals.
The MSQ-60 can be used as a current transformer for power monitoring cabinet applications. It offers a standard 5A output and several ratio variants, making it easy to compare different circuit currents with conventional electrical appliances.
3.2 Electrical space load monitoring
Electrical spaces in factories, commercial buildings and public objects often require permanent monitoring of a major scheme. In case of current variation, engineers can use the monitoring data to check if the load is too high, too low or unstable.
MSQ-60 is suitable for:
Monitoring of main memory
Supervision of subsidiaries
Message from industrial parks
Monitoring the performance of buildings
Energy management of the facility

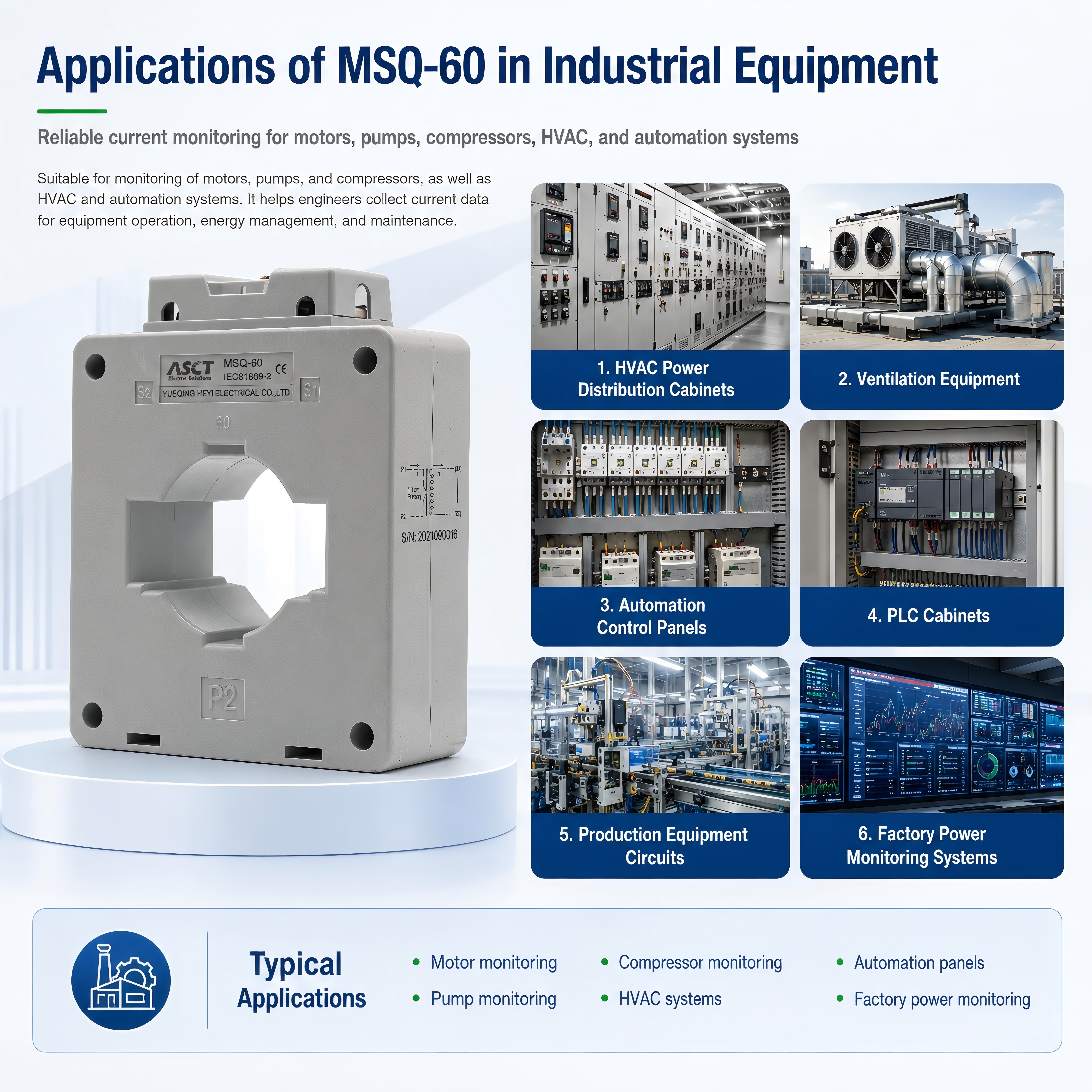

4. Where can MSQ-60 be used in industry?
4.1 Engine, pump and compressor monitoring
In Russian industrial enterprises, engines, water pumps, air compressors, conveyors and production technology are often used. These loads can operate over a long period of time and may be different current conditions during start-up, normal operation, overload or error conditions.
The MSQ-60 can be used as a current transformer for industrial power monitoring in motor control cabinets, pump control fields, air compressor cabinets and factory distribution systems are used. Continuous monitoring helps engineers understand equipment load status and detect divergent operating conditions earlier.
4.2 Air conditioning and automation systems
Air conditioning and automation systems are widespread in factories, commercial buildings, facilities and public buildings. Fans, pumps, air conditioning equipment, ventilation systems, PLK cabinets and control panels require stable electrical work.
The MSQ-60 current transformer can provide current signals for surveillance devices and protection systems and help engineers build a more visible and reliable electrical system.
Typical applications are:
HVAC distribution cabinets
Ventilation equipment
Automation control
Cabinets PLC
Production facilities
Facility performance monitoring systems
5. Why choose HEYI MSQ-60 for Russian projects?
HEYI MSQ-60 is suitable for distributors, distribution plates, power control cabinets, industrial automation systems, drive systems, pump systems, compressor cabinets, HVAC systems and building energy control projects.
It supports several ratios from 250/5A to 1600/5A, making it suitable for various medium and high current schemes in low voltage distribution systems.
Please send us your application scenario, base current range, cable or rail size, connected meter type and installation requirements. HEYI helps you choose the MSQ-60 current transformer model suitable for your Russian electrical project.
Compay: WENZHOU HEYI ELECTRICAL CO.,LTD
Brand: HEYI/ASCT
Contact: Bethy
E-mail: heyi@heyiele.com
Tel: 86-13968747975
