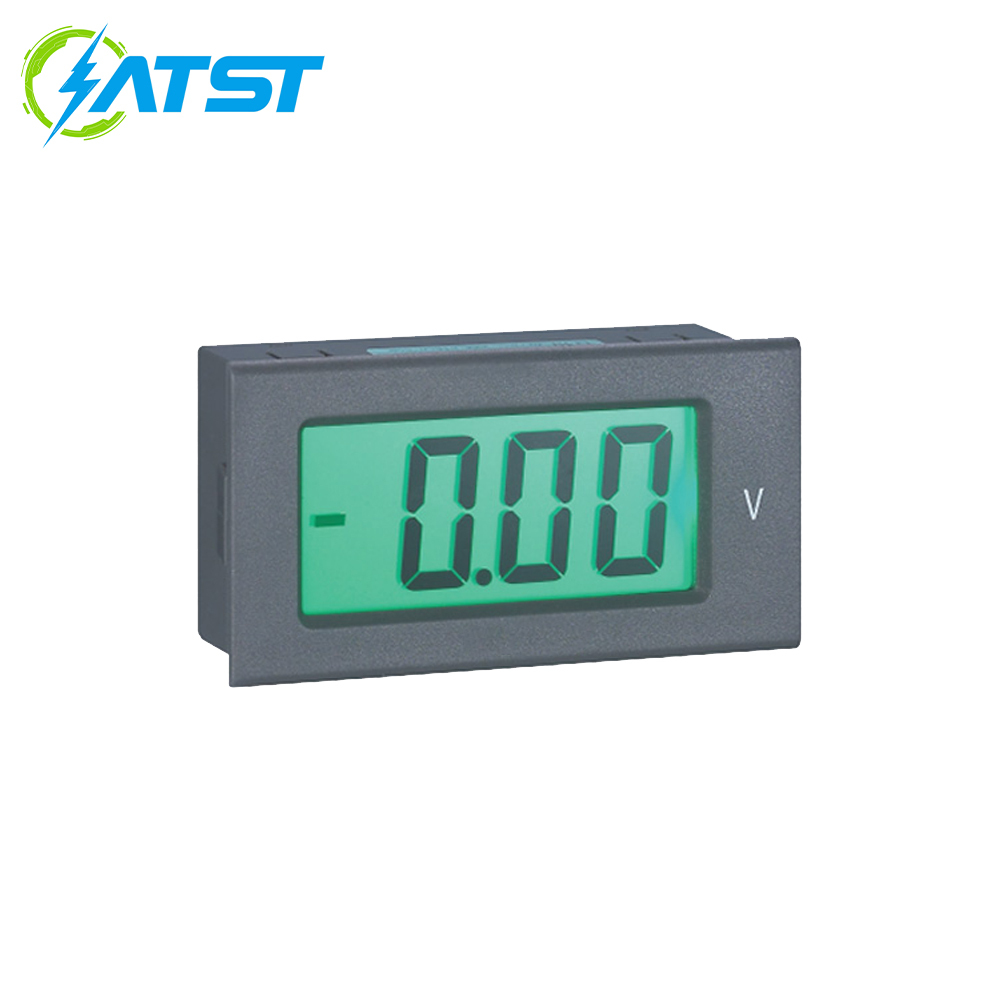

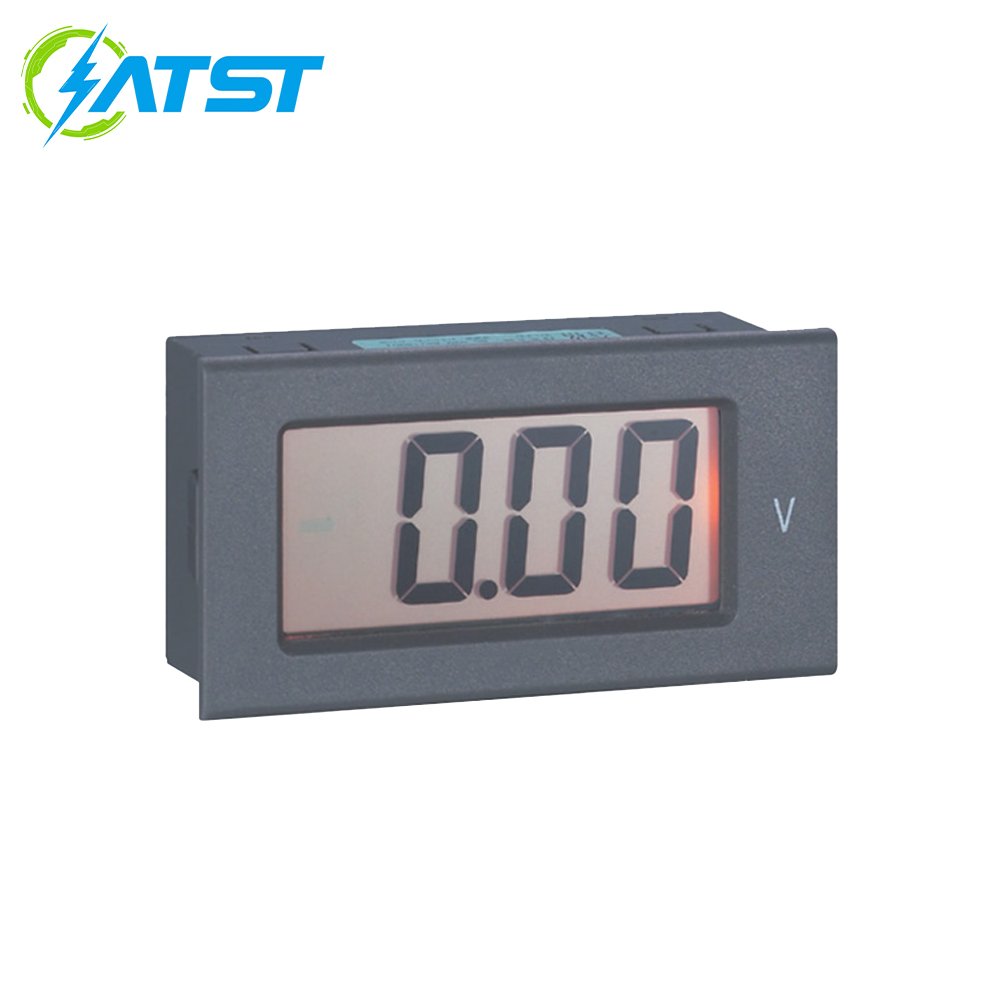

AT5035 Series 3½-Digit LCD Digital Display Meter

Name: AT5035 Series 3½-Digit LCD Digital Display Meter
Brand: MY SHOP

• High accuracy: ±0.5% ±5 digits (AC), ±0.2% ±2 digits (DC).
• Screw-type pluggable terminals for convenient connection.
• Wide measurement range, strong anti-interference capability, and clear display.
• Features data hold function, large-screen LCD display with controllable backlight, rich display effects, and flush-mount installation for a refined and aesthetic appearance.
• High accuracy: ±0.5% ±5 digits (AC), ±0.2% ±2 digits (DC).
• Screw-type pluggable terminals for convenient connection.
• Wide measurement range, strong anti-interference capability, and clear display.
• Features data hold function, large-screen LCD display with controllable backlight, rich display effects, and flush-mount installation for a refined and aesthetic appearance.

GET A QUOTE

Description

Technical Specifications

• Maximum Display: 3½-digit LCD (1999)
• Maximum Input Overload Capability: Current: 1.2 × Rated Value (Continuous); 10 × Rated Value (10 seconds) / Voltage: 1.2 × Rated Value (Continuous); 1.5 × Rated Value (10 seconds)
• Measurement Accuracy: ±0.2% of Full Scale ±2 Digits (DC); ±0.5% of Full Scale ±5 Digits (AC)
• Auxiliary Power Supply: AC 110V/220V ±10%, 50Hz or 60Hz; DC 5V; AC/DC 12–220V ±10% (Isolated)
• Measurement Mode: Dual-slope integration
• Input Mode: Single-ended input
• Sampling Time: Approximately 0.3 seconds (Standard)
• Operating Temperature Range: 0°C to 50°C (Non-condensing)
• Over-range Display: The first digit displays "1" or "-1"; the remaining three digits are blank.
• Polarity Display: Automatic polarity switching
• Noise Suppression Ratio: Common Mode Rejection Ratio (CMRR) > 86dB at 50/60Hz.
• Power Consumption: ≤ 1VA (AC); ≤ 0.5W (DC)
• Dielectric Strength: AC 4kV for 1 minute (between internal terminals and the enclosure).

Product Selection

Product Appearance	Model	Operating Power Supply	Display Character Height	Display Color

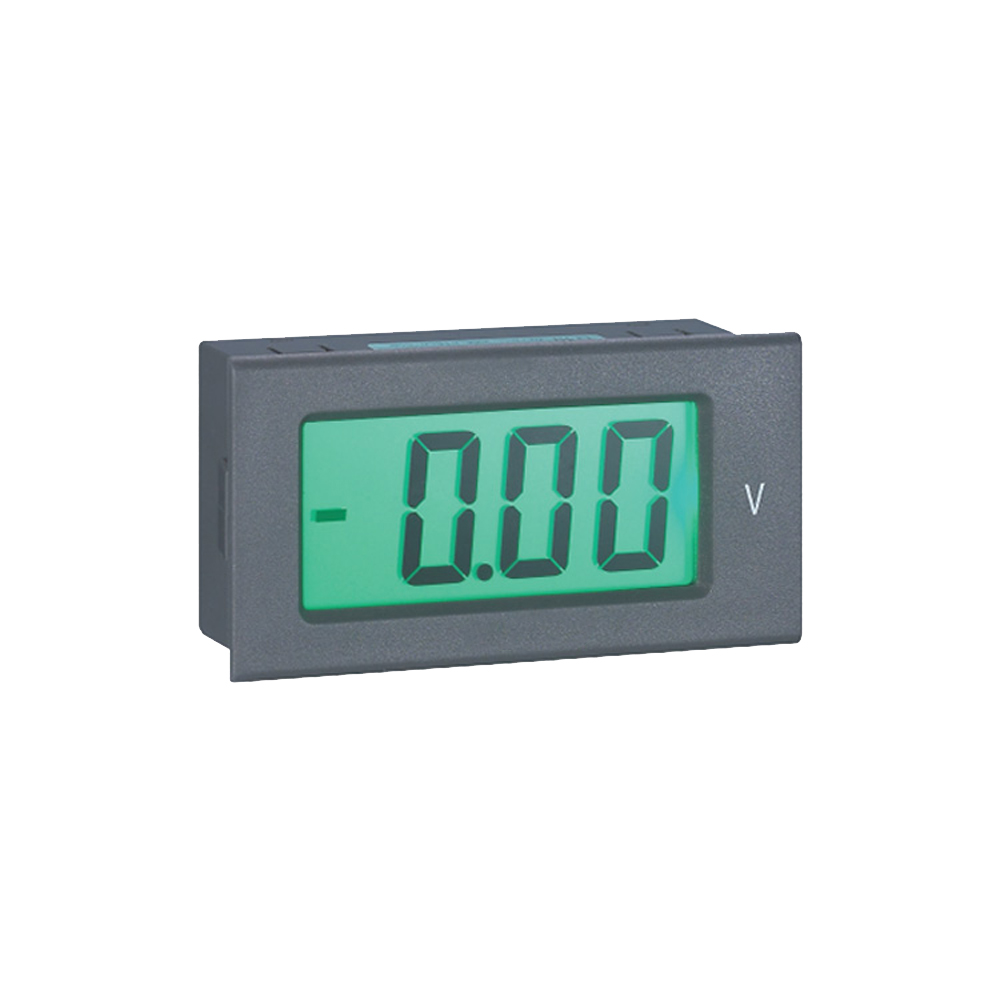

	AT5035A - G	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Emerald Backlight
	AT5035A - W	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	White Backlight Optional Negative Display with White Text

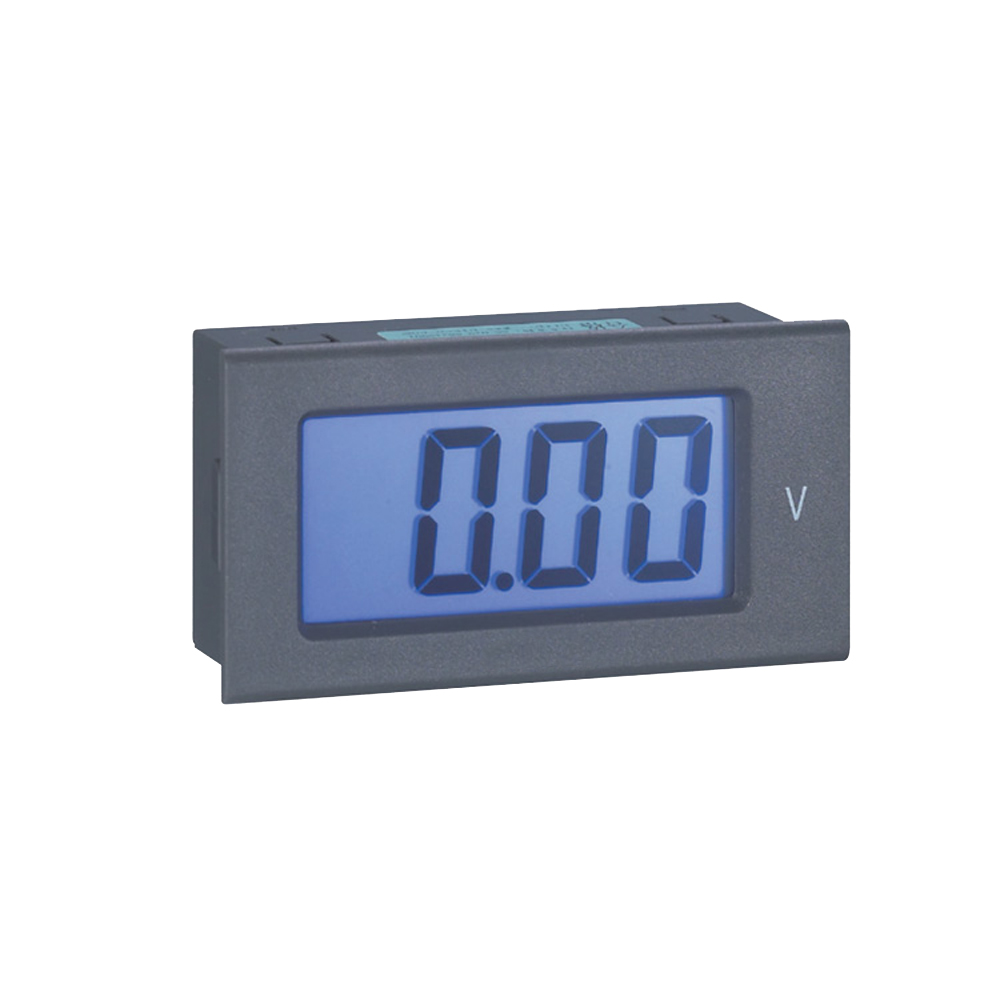

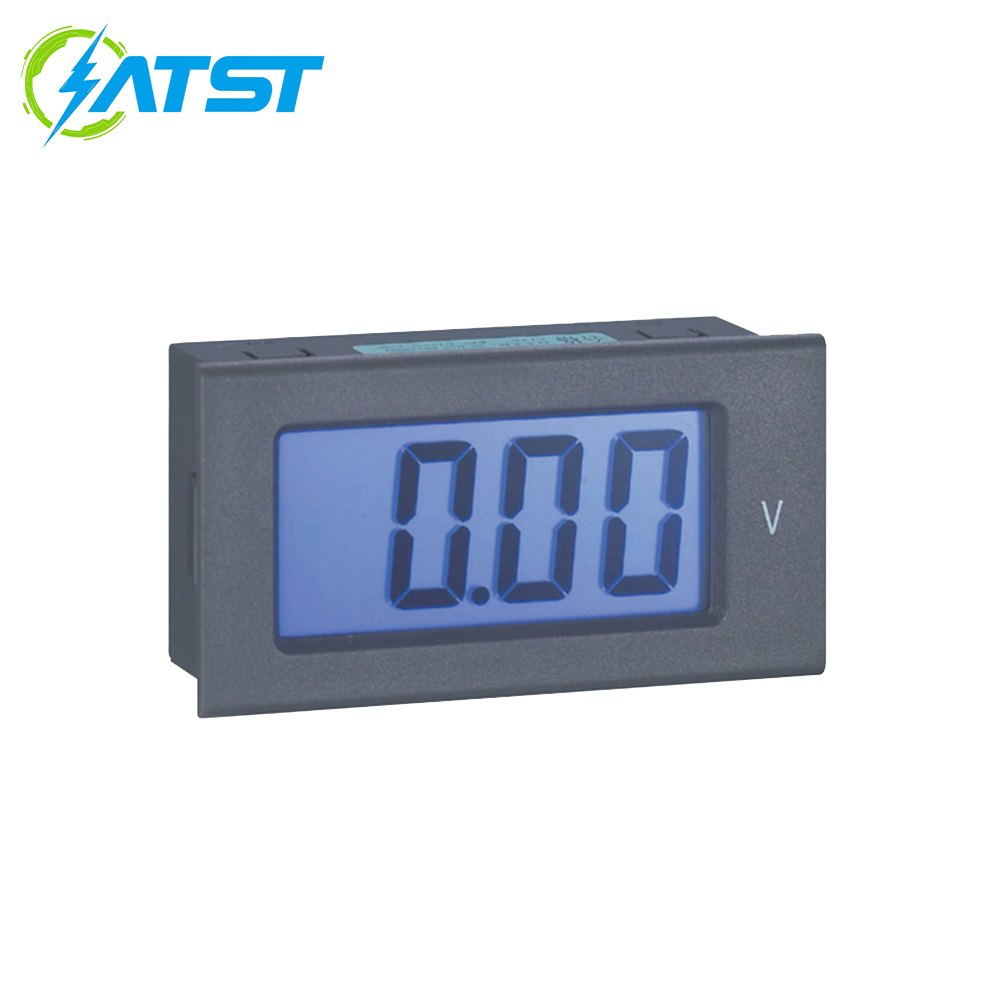

	AT5035A - S	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Blue Backlight Optional Negative Display with Blue Text

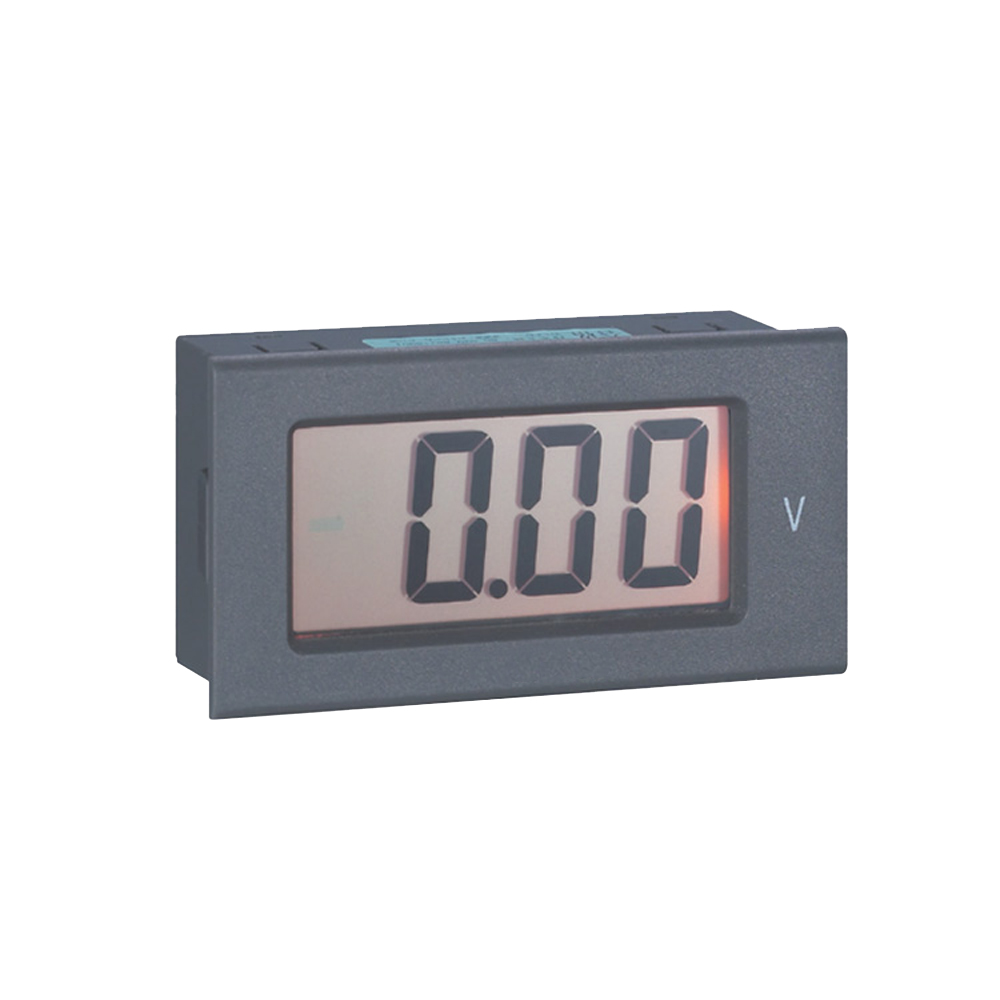

	AT5035A - OR	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Orange Backlight Optional Negative Display with Orange Text
	AT5035A - R	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Red Backlight Optional Negative Display with Red Text

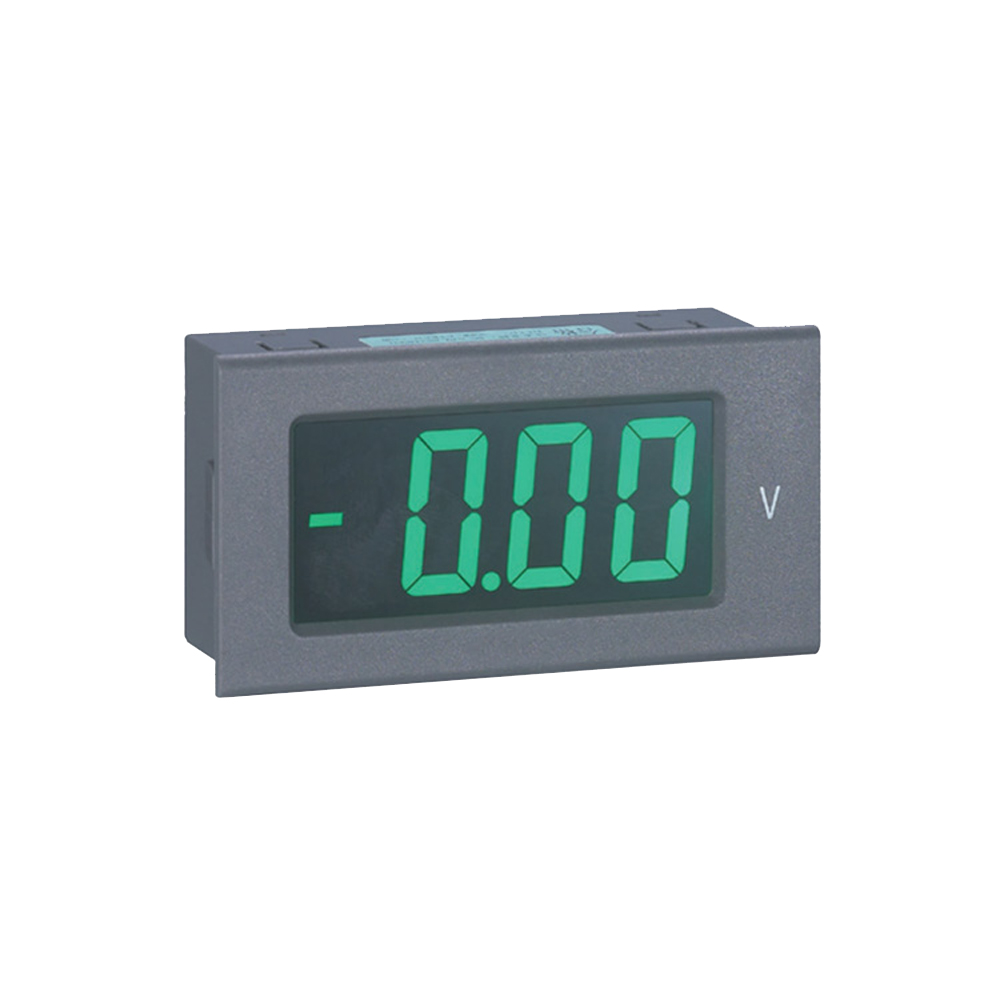

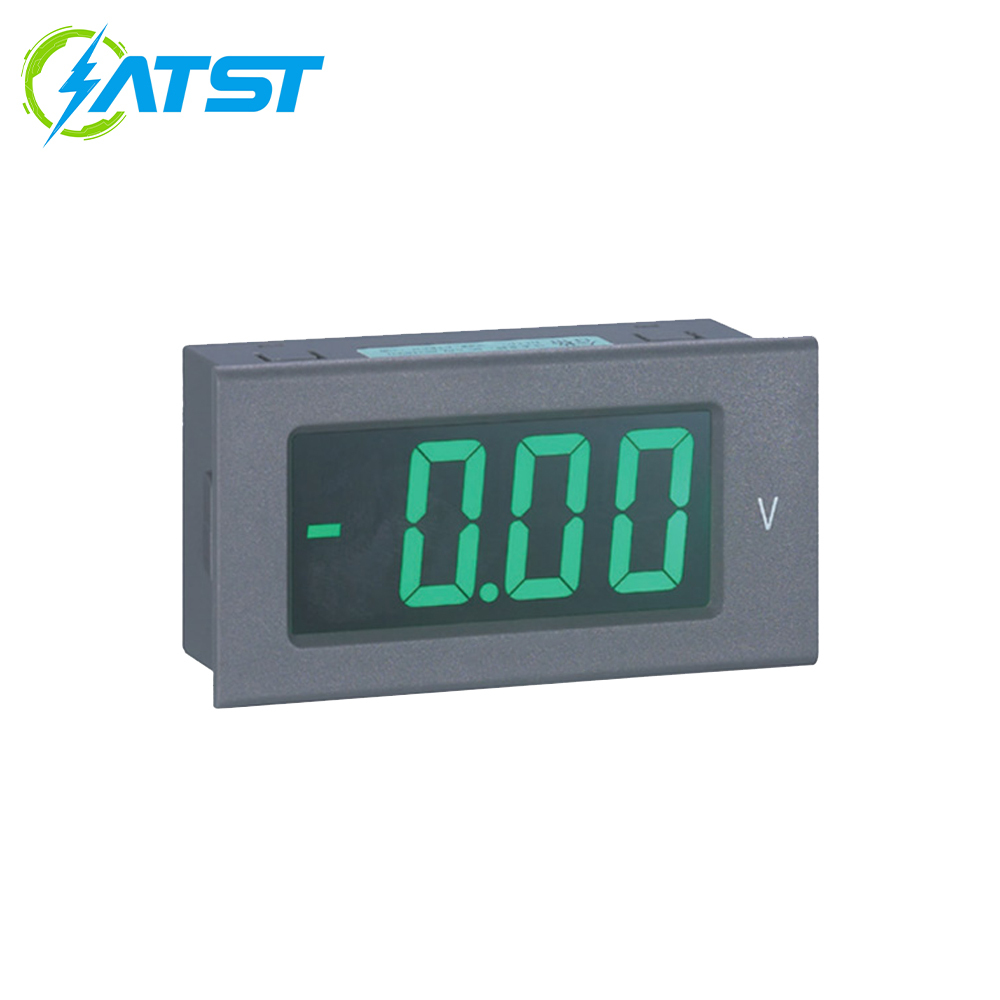

	AT5035A - NG	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Negative Display with Emerald-Green Text
	AT5035B - NG	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Negative Display with Emerald-Green Text
	AT5035B - NW	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Negative Display with White Text Optional White Backlight
	AT5035B - NS	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Negative Display with Blue Text Optional Blue Backlight
	AT5035B - NOR	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Negative Display with Orange Text Optional Orange Backlight
	AT5035B - NR	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Negative Display with Red Text Optional Red Backlight
	AT5035B - G	DC5V±5%≤15mA AC/DC9V - 12V、AC/DC24V	20 × 10 mm LCD Display	Emerald Green Backlit Letters
