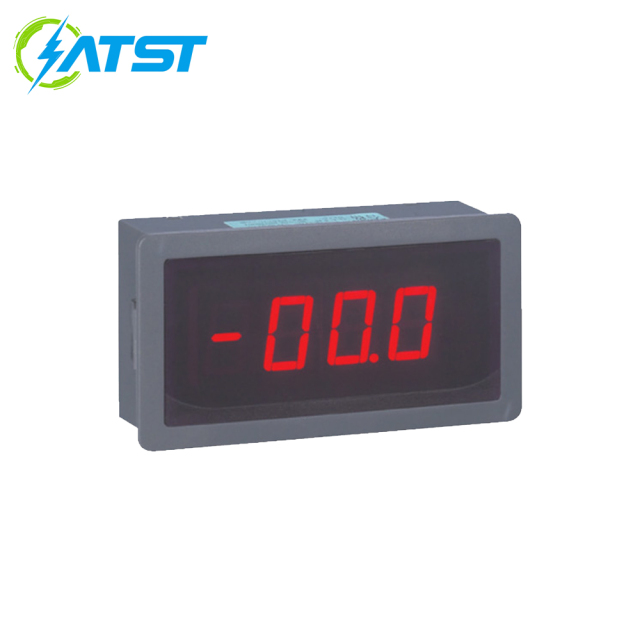

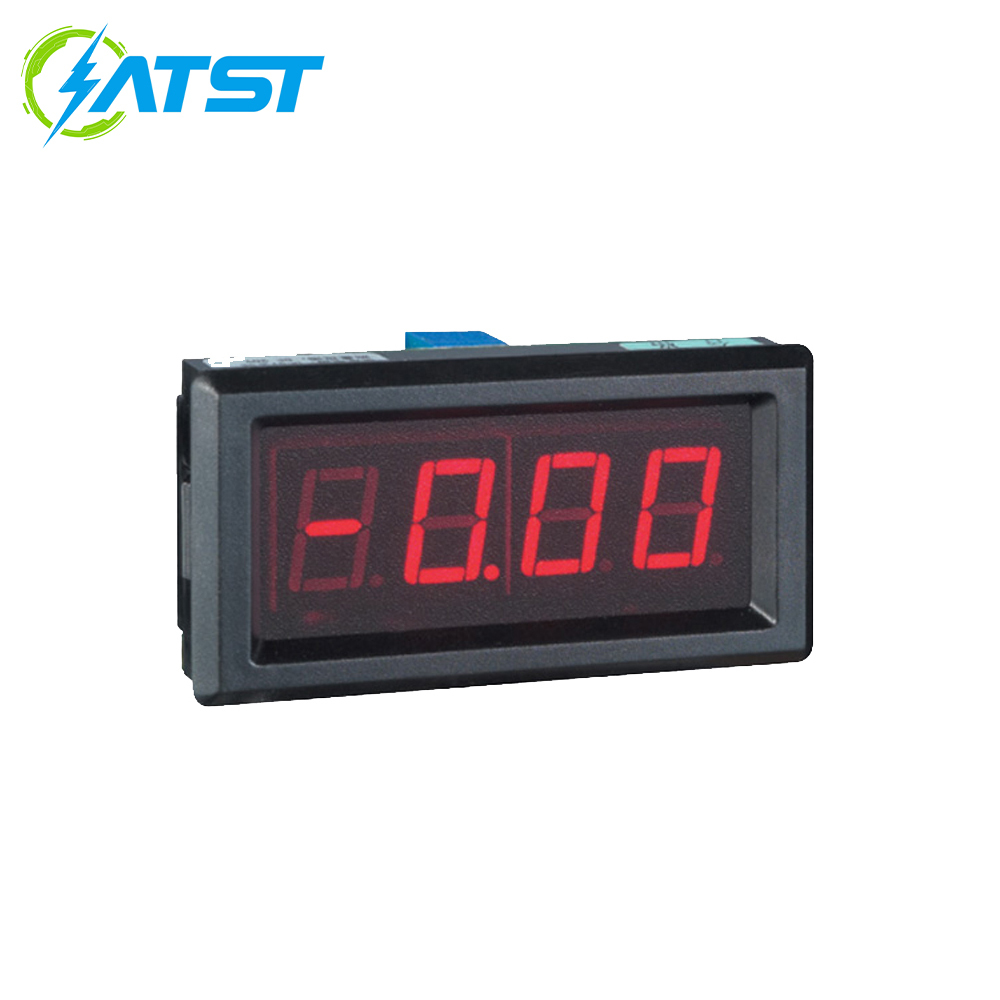

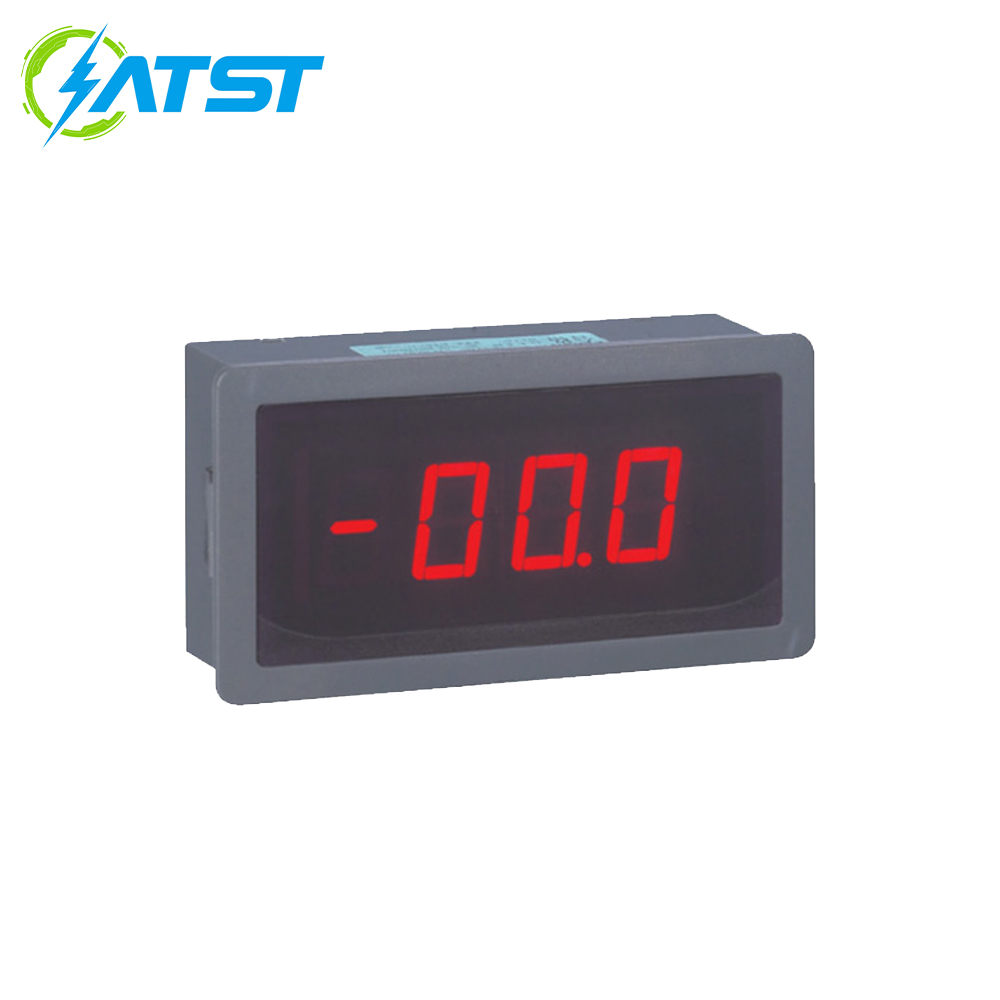

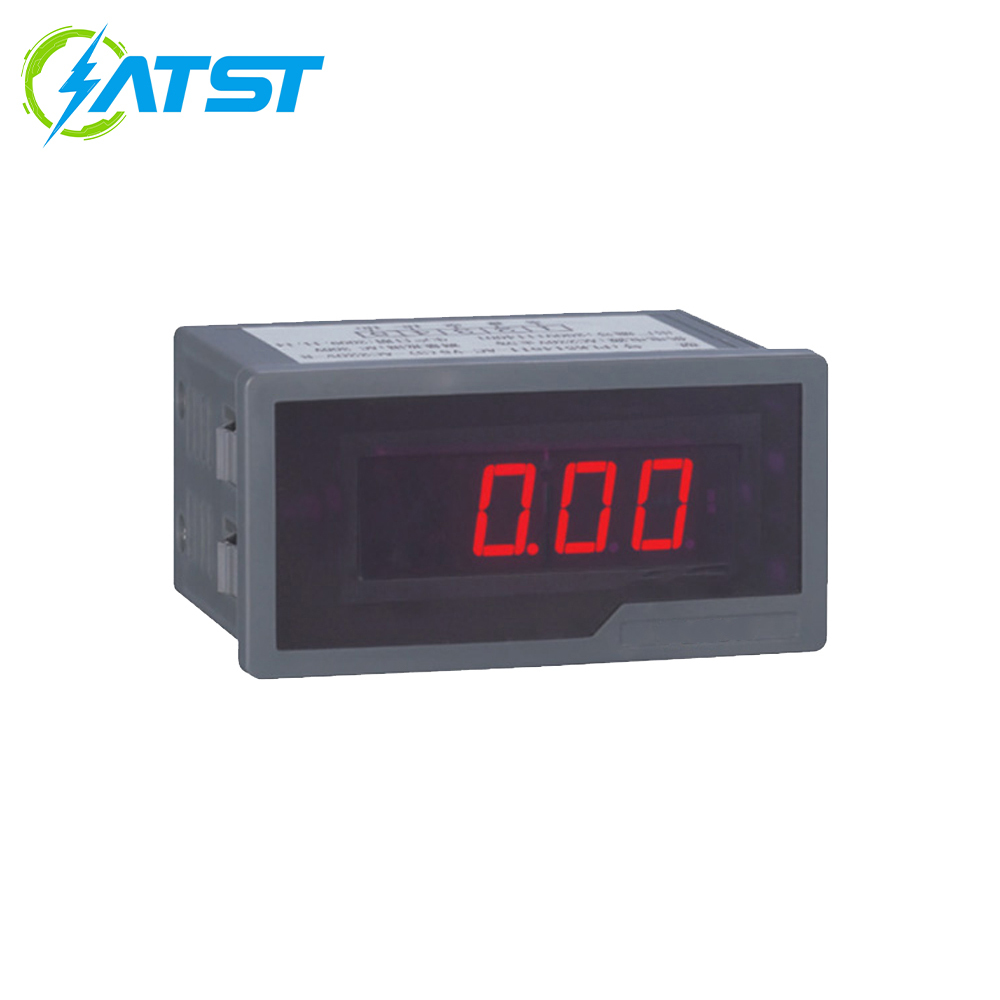

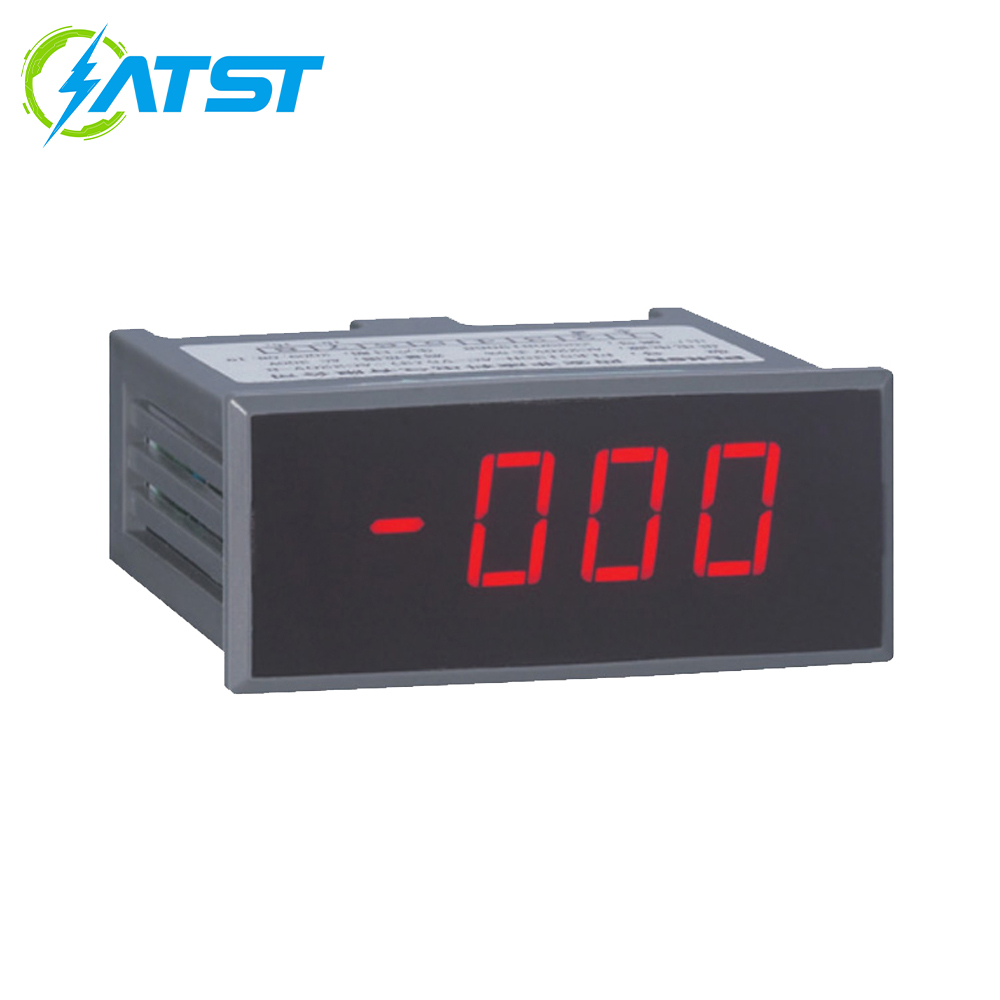

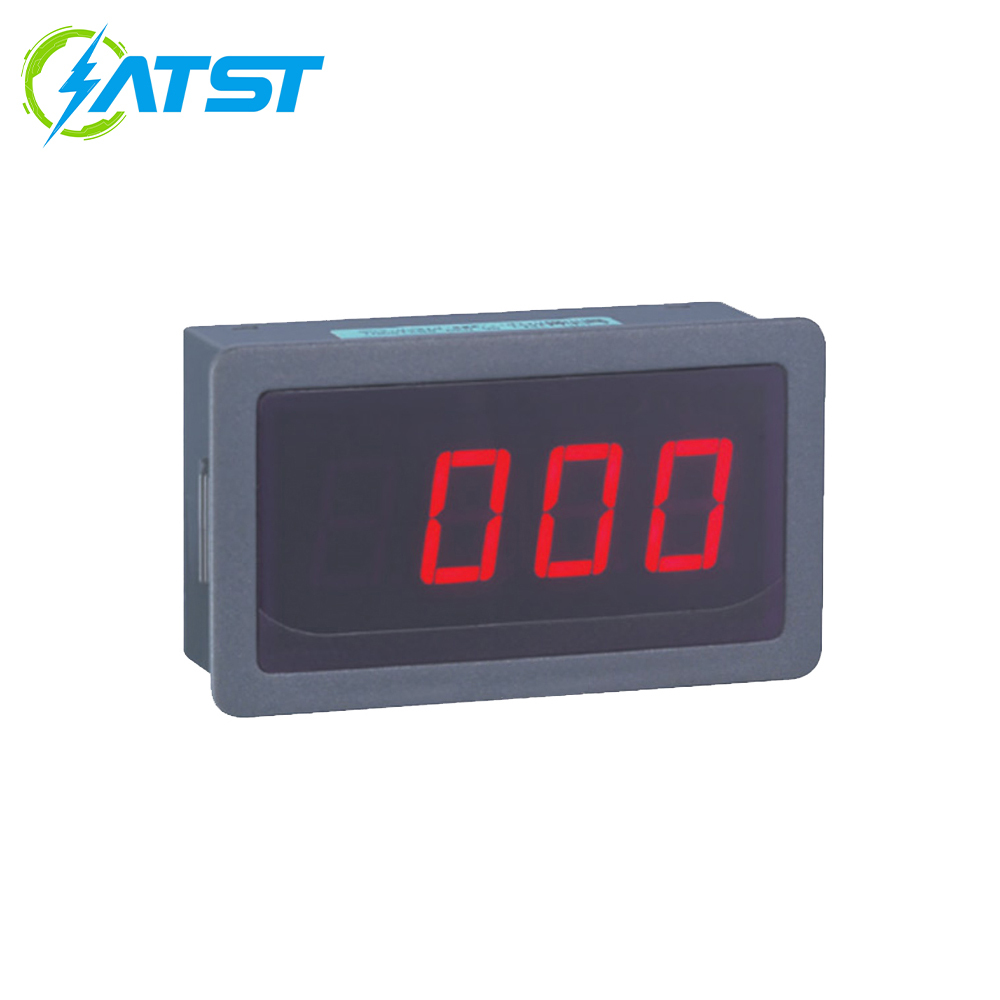

Name: AT5135 Series 3½-Digit LED Digital Display Meter
Brand: MY SHOP

Description

Technical Specifications

• Maximum Display: 3½ digits (1999 counts), 0.56 inches (14.2 mm) high.
• Maximum Input Overload Capability: Current: 1.2× rated value (continuous), 10× rated value (10 seconds); Voltage: 1.2× rated value (continuous), 1.5× rated value (10 seconds).
• Measurement Accuracy: ±0.2% of full scale ±2 digits (DC); ±0.5% of full scale ±5 digits (AC).
• Auxiliary Power Supply: AC 110V/220V ±10%, 50Hz or 60Hz; DC 5V; AC/DC 12–220V ±10% (Isolated).
• Measurement Mode: Dual-slope integration.
• Input Mode: Single-ended input.
• Sampling Time: Approximately 0.3 seconds (Standard).
• Frequency Range: 45–400Hz (AC), True RMS range.
• Operating Temperature Range: 0°C to 50°C; Storage Temperature Range: -5°C to 60°C.
• Operating Humidity: <85% RH.
• Operating Conditions: Altitude ≤ 2000 meters; environments free from corrosive gases.
• Over-range Display: The first digit displays "1" or "-1"; the remaining three digits are blank.
• Polarity Display: Automatic polarity switching.
• Noise Suppression: Common Mode Rejection Ratio (CMRR) > 86dB at 50/60Hz.
• Power Consumption: ≤ 2VA (AC); ≤ 1W (DC).
• Dielectric Strength: AC 4kV for 1 minute (between internal terminals and the enclosure).

Product Selection

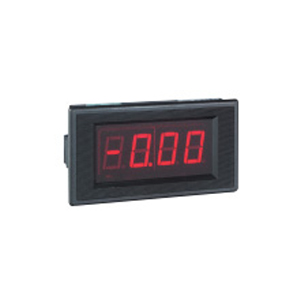

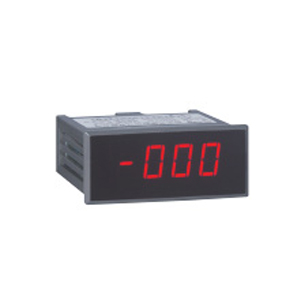

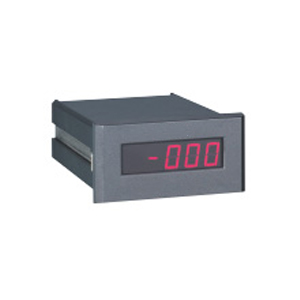

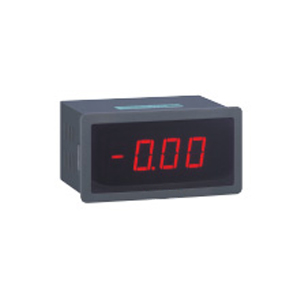

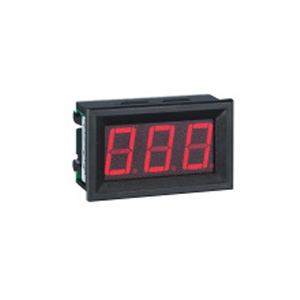

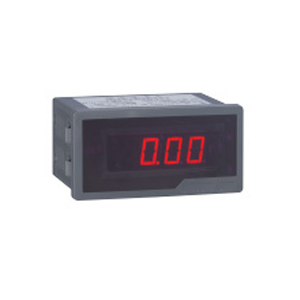

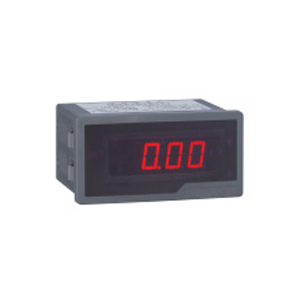

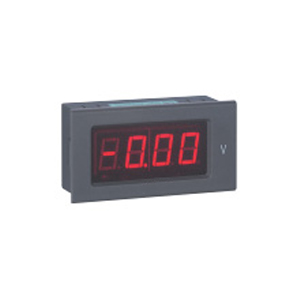

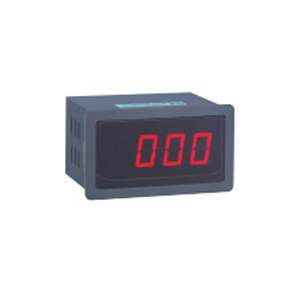

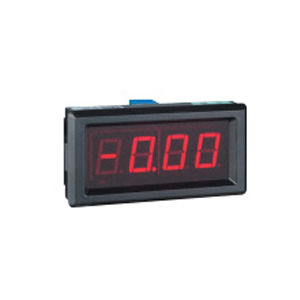

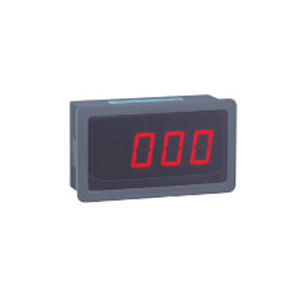

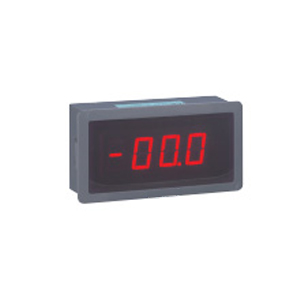

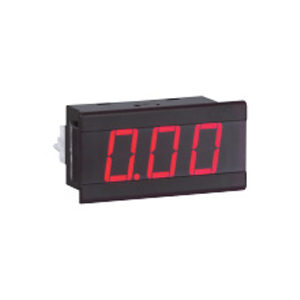

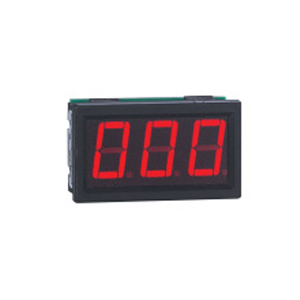

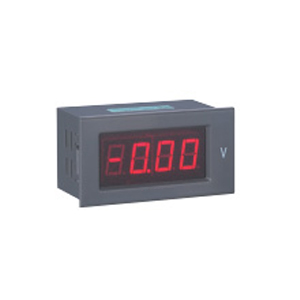

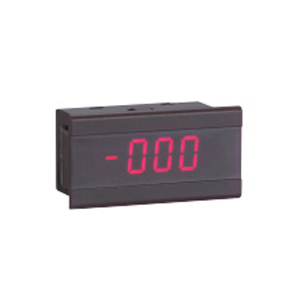

Product Appearance	Model	Operating Power Supply	Display Character Height	Display Color
	AT5135A	DC5V±5% ≤ 100mA AC/DC9V-12V AC/DC24V-48V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135B	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135C	DC5V±5% ≤ 100mA AC/DC9V-12V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135D	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135E1	DC5V±5% AC/DC9V-12V AC/DC24V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135E2	DC5V±5% ≤ 100mA	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135E3	DC5V±5% AC/DC9V-12V AC/DC24V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135E4	DC5V±5% ≤ 100mA	0.36-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135F	DC5V±5% ≤ 100mA AC/DC9V-12V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135G	DC5V±5% ≤ 100mA AC/DC9V-12V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135H	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135I1	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135I2	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135J	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135K	DC5V±5% ≤ 100mA AC/DC9V-12V AC/DC24V-48V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
	AT5135L	DC5V±5% ≤ 100mA AC/DC9V-220V AC110-220V	0.56-inch Red LED	Available in green, yellow, or blue (optional).
