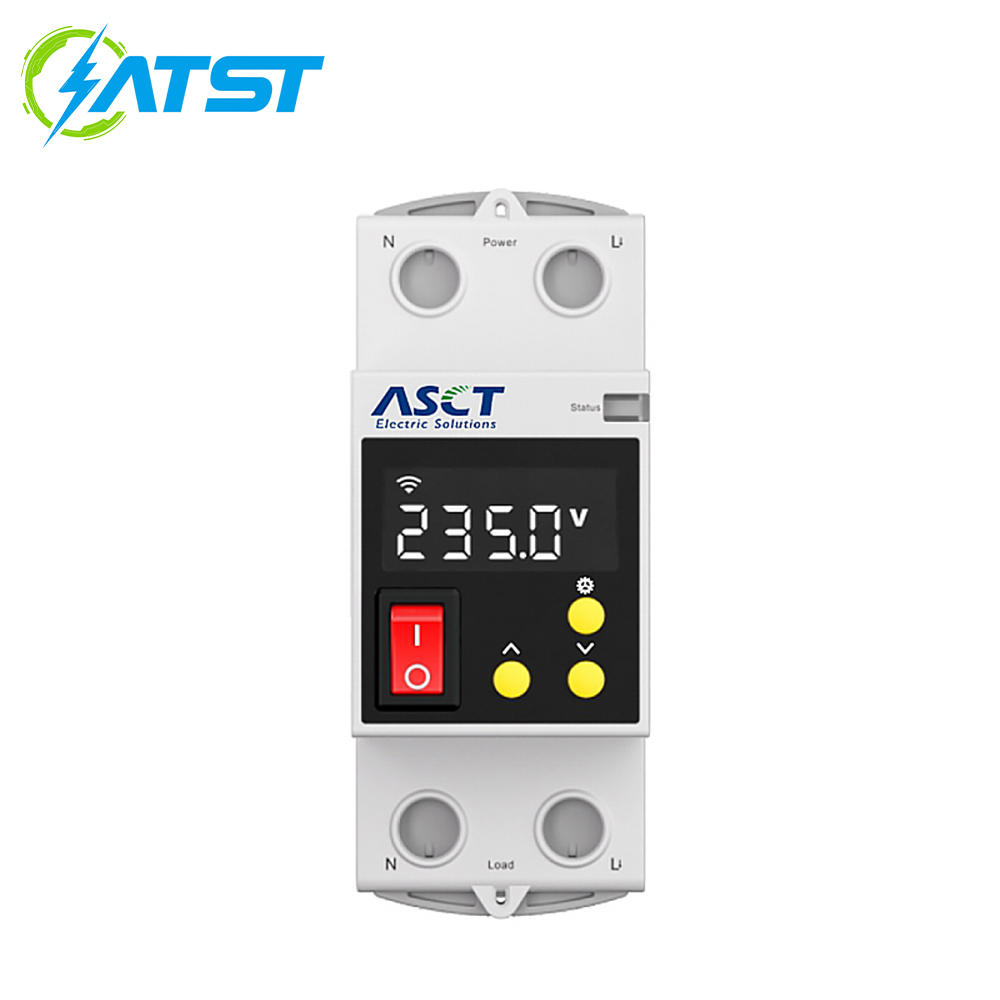

Name: A1-R-V2 Intelligent Protection Switch
Brand: MY SHOP

Description

Product Overview

A1-R-V2 adopts a 2P modular design and is compatible with standard DIN rail installation. It is a new generation of intelligent protection switch for the mid-range single-phase distribution market. The product is equipped with a high-performance microprocessor, which retains basic protection functions such as overload, short circuit, and leakage, while adding real-time voltage and current monitoring and RS485 communication capabilities. It can be connected to local energy management systems for centralized monitoring. Its simple operation design and stable performance meet the basic needs of users for intelligent upgrading of single-phase distribution systems, helping users improve distribution management efficiency and electricity safety at a lower cost.

Main Features

1. Precise single-phase protection system
Optimizing the protection curve for single-phase load characteristics, it has three core functions: overload inverse time protection, short-circuit instantaneous protection, and leakage classification protection. It supports custom action thresholds and delays, effectively balancing protection sensitivity and system stability; The power-off memory function ensures that parameters are not lost and automatically operates according to the original strategy after power is restored.
2. Real time status monitoring
Equipped with high-precision current and voltage sensors, real-time collection of key parameters such as voltage, current, and power, with a data update frequency of once per second, providing data support for energy efficiency analysis and fault prediction of the distribution system.
3. Multi level alarm mechanism
Support dual mechanisms of local sound and light alarms and remote platform alarms. When a fault occurs, the alarm is immediately triggered and the fault type and location information are uploaded, making it easier for operation and maintenance personnel to respond in a timely manner.
4. Industrial grade reliability
Adopting UL94 V-0 flame retardant shell, capable of withstanding high temperatures up to 1300 ℃; The contact system has undergone 50000 mechanical life tests and has an IP20 protection level. It supports operation in a wide temperature range of -10 ℃ to 50 ℃, meeting the stable operation requirements of general commercial and civilian scenarios.
5. Lightweight intelligent upgrade
No need to modify the original distribution architecture, simply replacing traditional circuit breakers can achieve intelligent upgrading, compatible with mainstream energy management system protocols, and reduce the time and capital cost of user intelligent transformation.

Application Scenarios

1. Commercial stores and chain supermarkets
Applied to single-phase load distribution circuits such as store lighting, cash register systems, refrigeration equipment, etc., achieving precise protection and status monitoring, timely warning of abnormal situations such as overload and short circuit, and ensuring the normal operation of the store.
2. Smart homes and villas
As the core protection terminal of the household power distribution system, it realizes remote status monitoring and fault alarm, improving the safety and convenience of household electricity consumption.
3. Small office spaces
Used for the distribution circuit of single-phase loads such as office lighting, computers, printers, etc., to achieve centralized monitoring and fault warning, improve office efficiency and electrical safety.
4. Education and training institutions
Provide precise protection and status monitoring for single-phase loads such as classroom lighting, teaching equipment, multimedia systems, etc., to ensure the continuity of teaching activities.
5. Medical clinics and community service centers
Used for distribution circuits of single-phase loads such as medical equipment, lighting systems, air conditioning, etc., to achieve remote monitoring and fault alarm, and improve the safety and reliability of medical services.

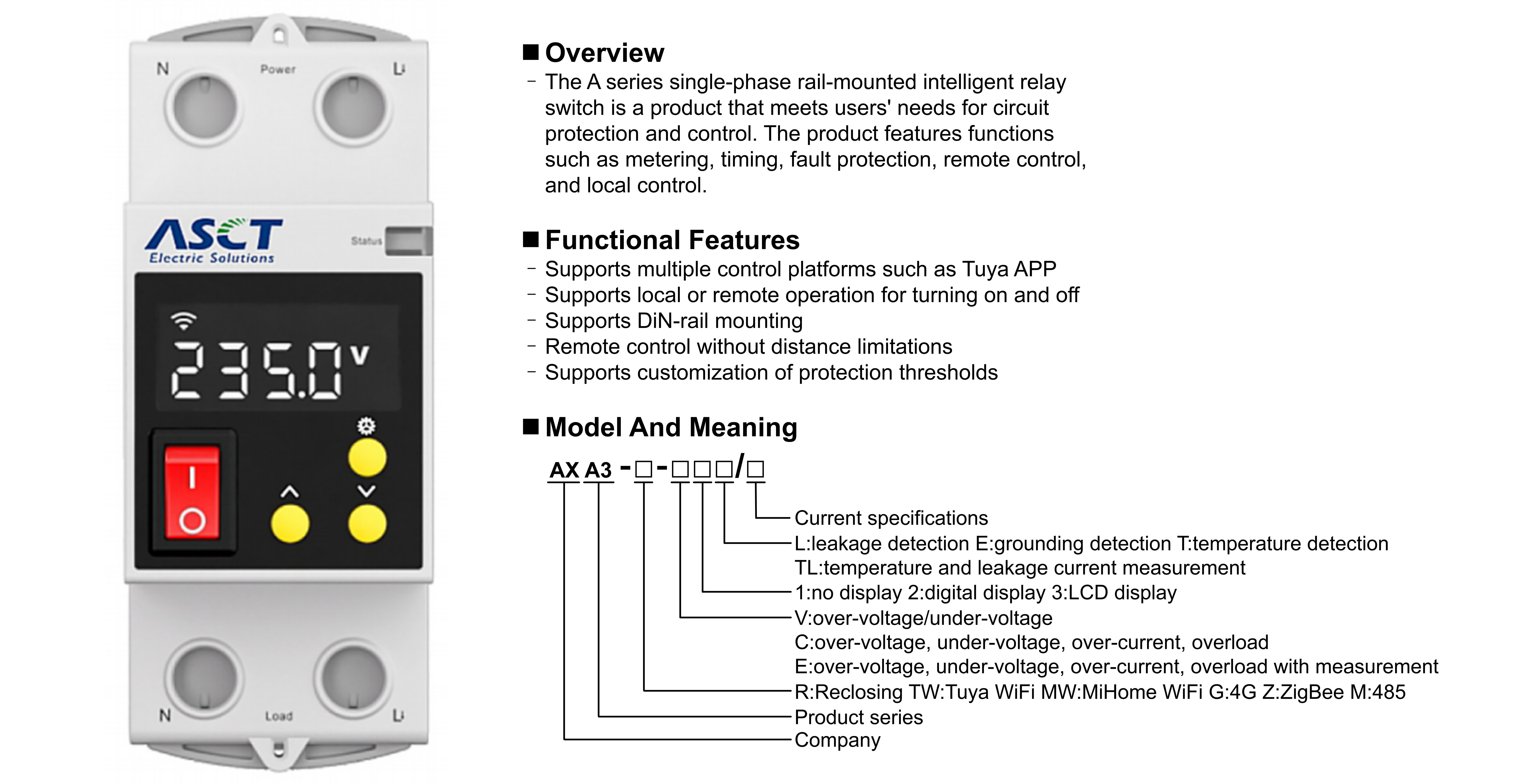

Product Introduction

Technical Parameters

Reference voltage	220V、230V
Specified operating voltage	90%Un-110%Un
Extended operating voltage	80%Un-115%Un
Current specification	6-63A
Frequency range	(50-60)Hz
Power consumption	Voltage circuit:≤1.5W
Communieation	Tuya WIFI	□
Operating temperature	-20℃~70℃
Operating humidity	≤95%
Dustproof and waterproof	Ip20
Product size	91.3mm36mm65.5mm
Measurement Accuracy	Voltage and current accuracy:1%
	Energy accuracy: 2%
Display	LCD
Voltage accuracy	Class 2.0(with energy metering funetion Class 1.0)
Current accuracy	Class 2.0(with energy metering function Class 1.0)
Active power accuracy	Class 2.0
Overvoltage protection	Protection switch: overvoltage value;	☑
Overvoltage protection	recovery value; judgment and recovery time.	☑
Undervoltage protection	Protection switch: undervoltage value;	☑
Undervoltage protection	recovery value; judgment and recovery time.	☑
Overcurrent protection	Protection switch: overcurrent value;	□
Overcurrent protection	judgment time.	□
Overpower protection	Protection switch: over power value;	□
Overpower protection	judgment time.	□

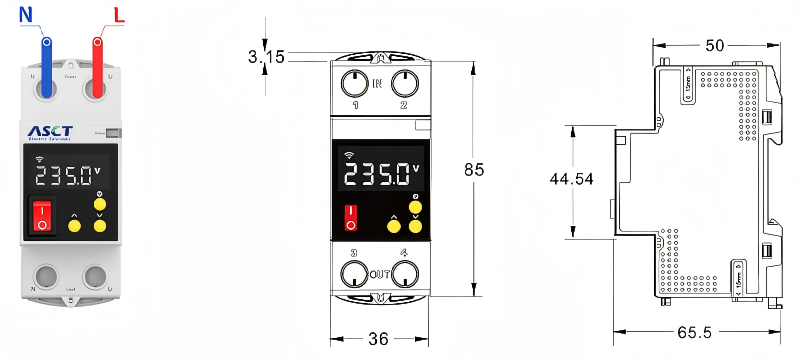

Product Wiring And Dimensional Diagram

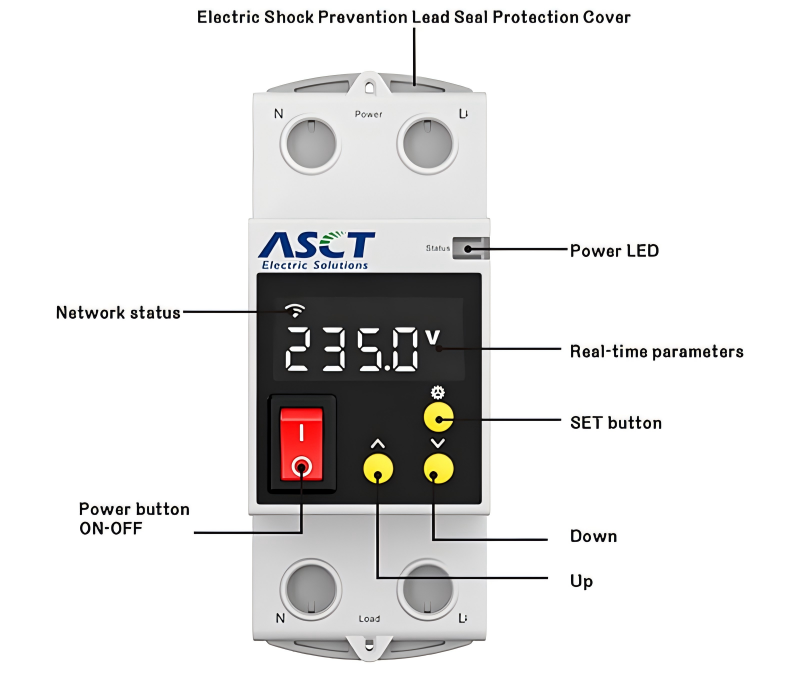

Panel Diagram
