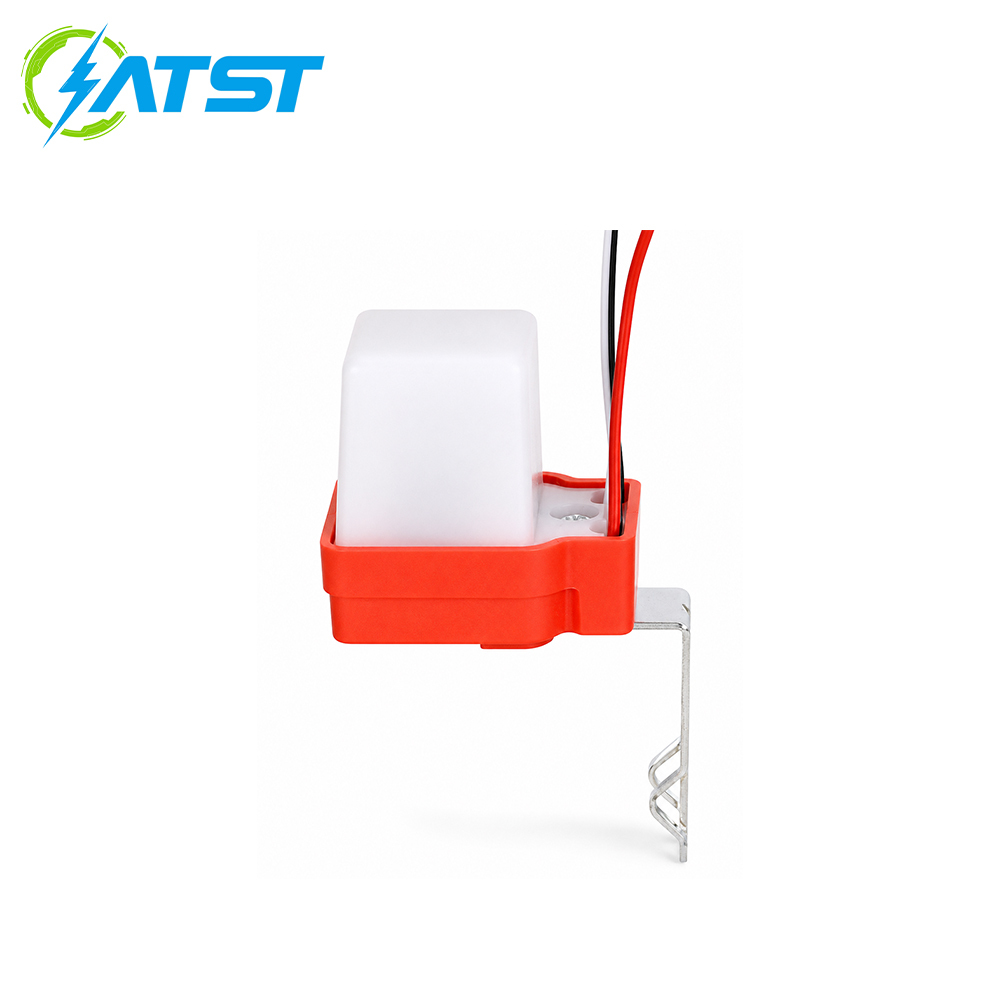

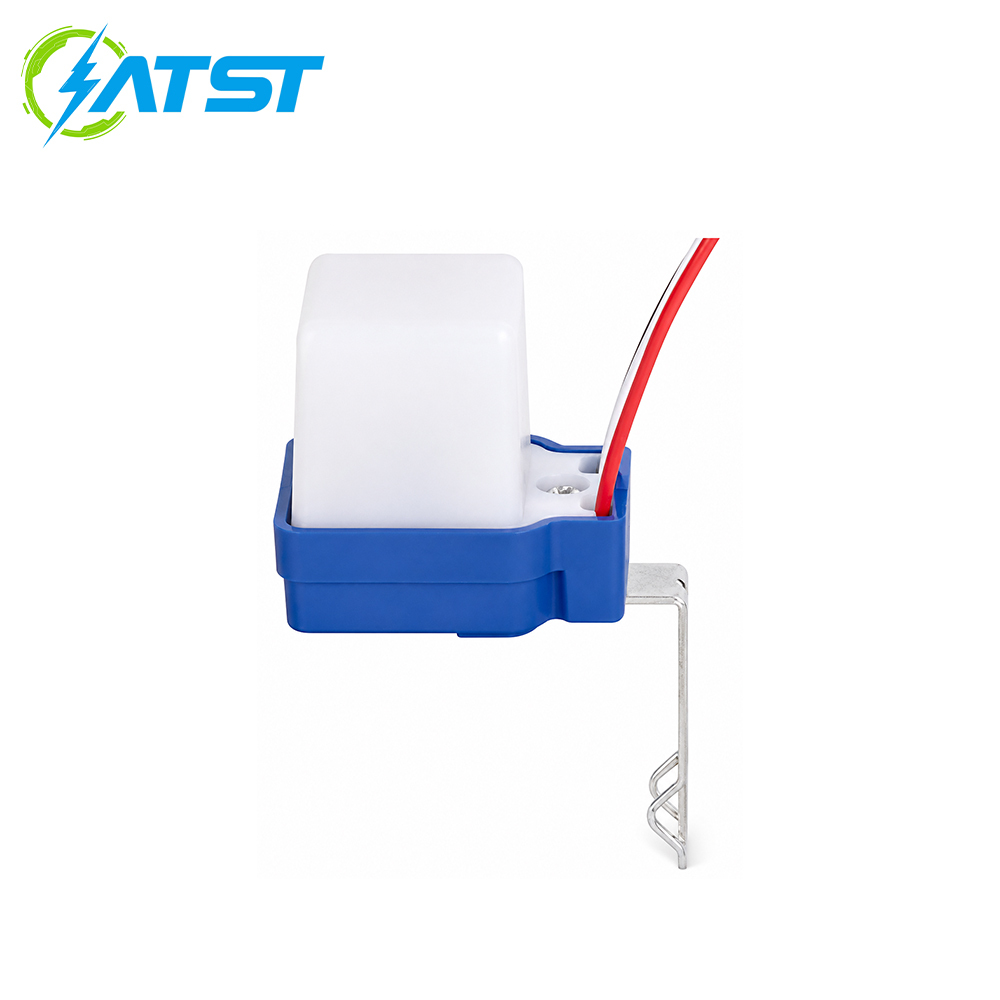

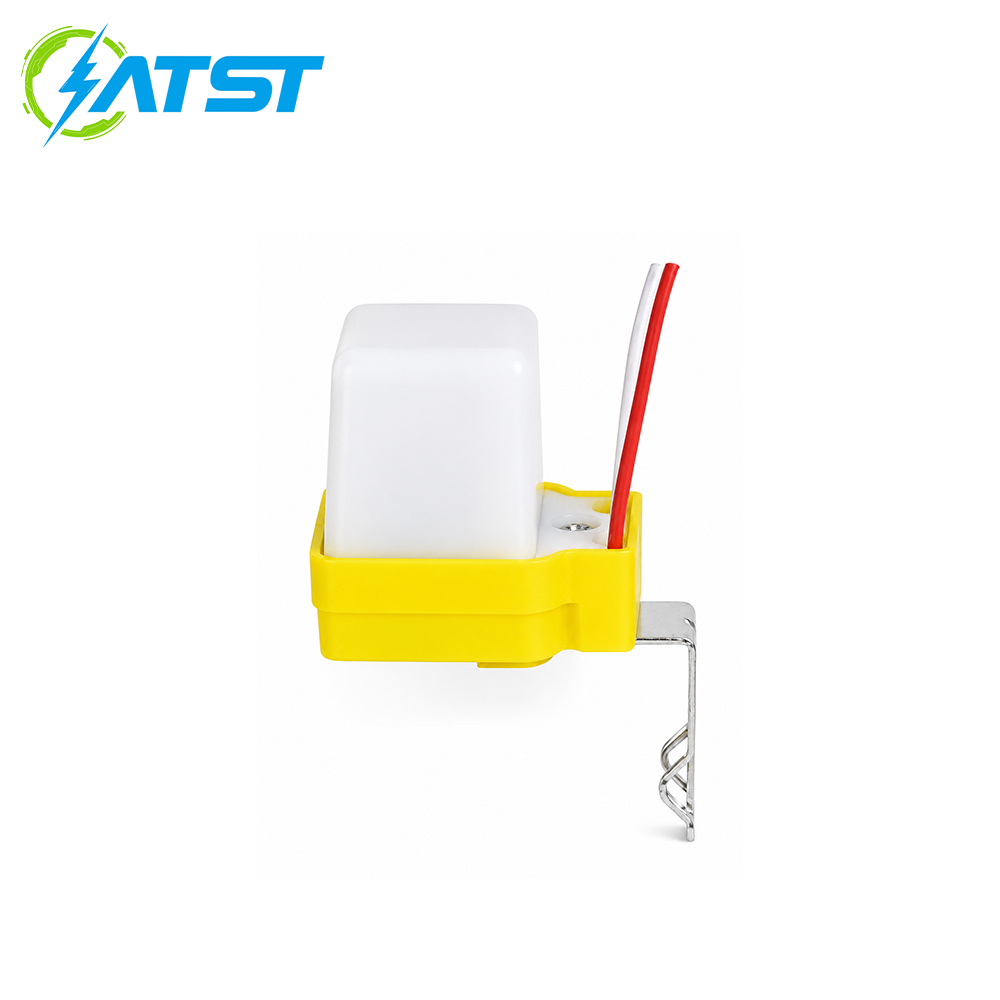

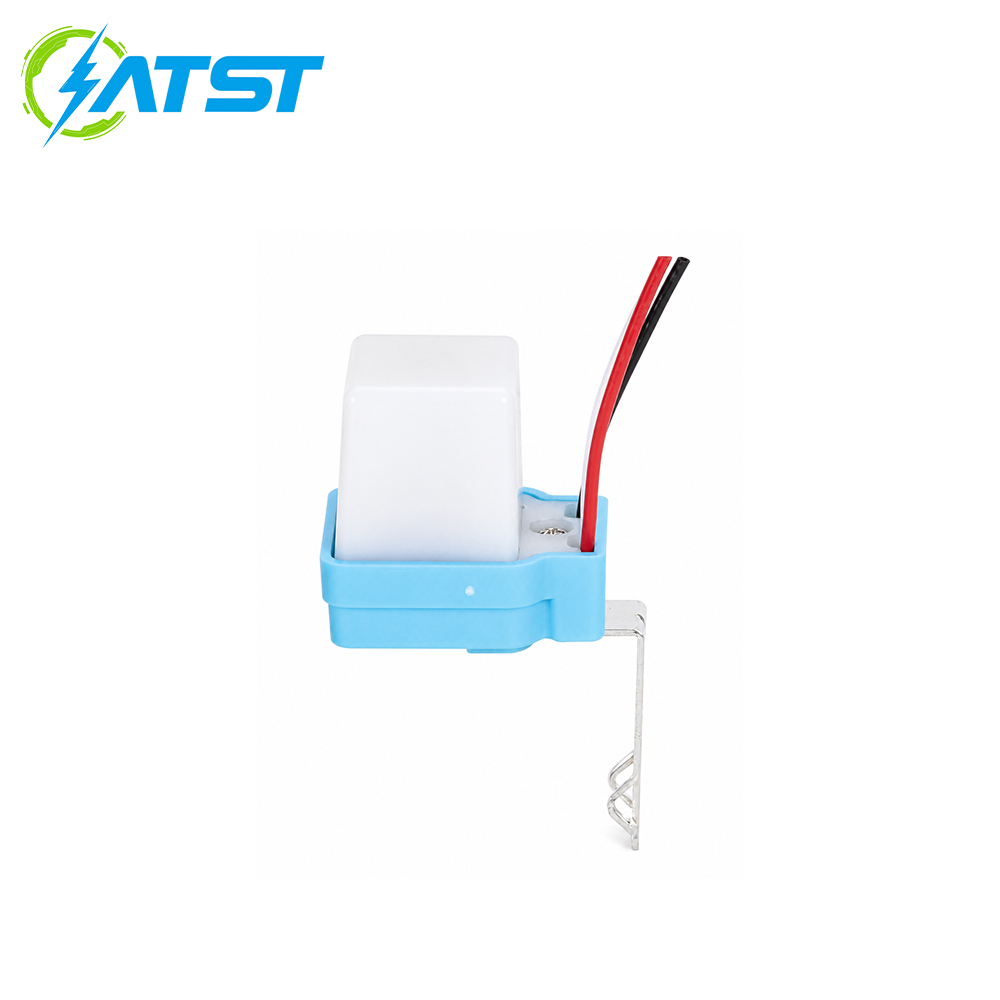

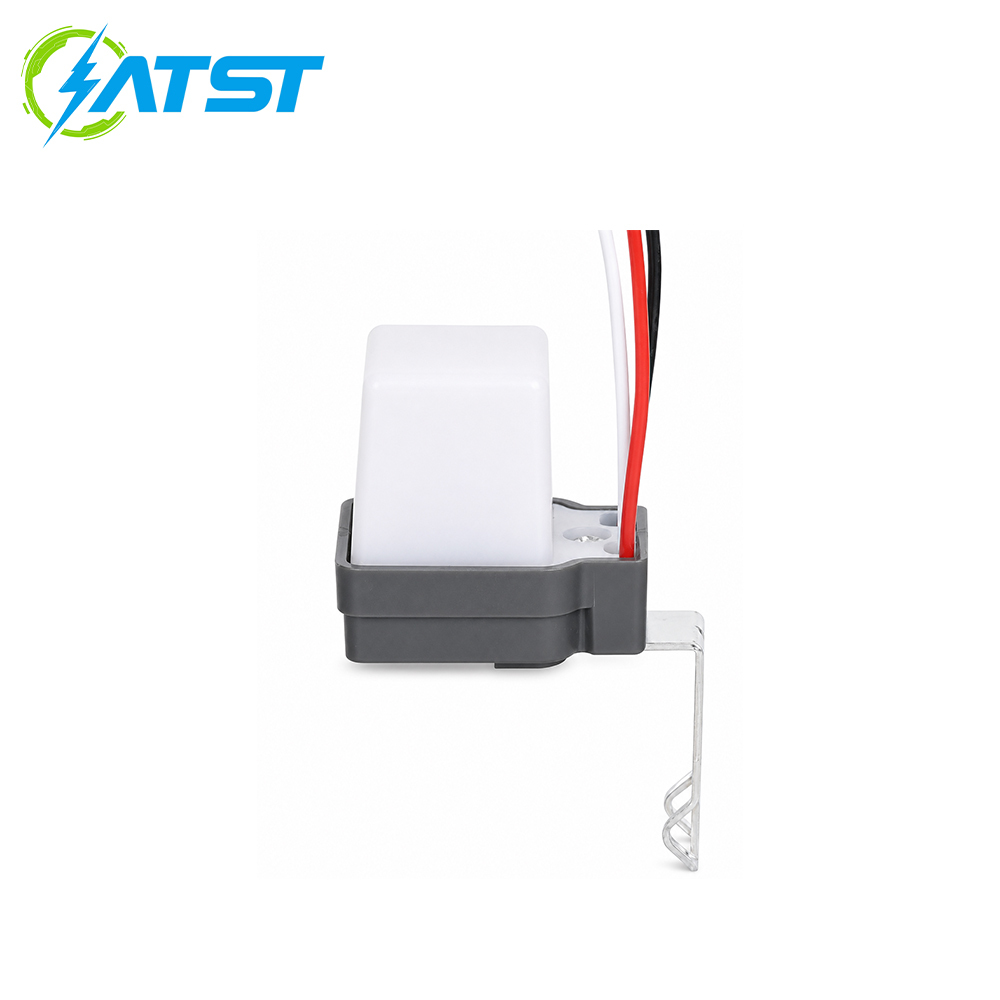

AS-2203A, 6A, 10A Light-controlled Switch

Product Overview

Based on ATST Electric’s core concept of “Precise Control, Safe and Reliable”, AS-2203A, 6A, 10A Light-controlled Switch is designed for automatic lighting control in outdoor and public electrical systems. By detecting the change of ambient light intensity, the product can automatically switch the lighting circuit ON at night and OFF during the day.​

Compared with manual lighting control, AS-2203A helps reduce labor operation, avoid unnecessary daytime power consumption and improve lighting management efficiency. With 6A and 10A current options, it is suitable for small and medium lighting loads in residential, commercial, municipal and garden lighting projects.​

The product adopts a compact structure, PC flame-retardant housing and weather-resistant design. Its anti-interference delay function helps reduce false operation caused by short-time light changes, making it suitable for long-term use in outdoor lighting control environments.​

Main Features

1. Automatic light sensing control: The switch automatically detects ambient brightness and controls the lighting circuit according to day and night changes.​

2. 6A and 10A current options: Two current specifications are available for different small and medium lighting control requirements.​

3. Rain and dust proof design: Suitable for outdoor lighting applications where the product may be exposed to rain, dust and changing weather conditions.​

4. Anti-interference delay function: Built-in delay design helps prevent incorrect switching caused by lightning, vehicle headlights or temporary light changes.​

5. Wide voltage adaptability: Supports AC/DC 12V, 24V, 36V, AC 110V and AC 220V, making it suitable for different electrical systems and regional power standards.​

6. Flame-retardant PC housing: The shell uses PC flame-retardant material to improve safety and durability in electrical installation environments.​

7. Easy installation: Compact design and simple wiring structure make installation convenient for electricians in lighting control projects.​

Application Scenarios

1. Street lighting control: Used for automatic ON/OFF control of street lamps in communities, roads, industrial parks and public areas.​

2. Garden and courtyard lighting: Suitable for villas, residential gardens, parks, landscape areas and courtyard lighting systems.​

3. Outdoor billboard lighting: Applied in shop signs, advertising boards and commercial display lighting requiring automatic night operation.​

4. Public facility lighting: Used in schools, parking lots, hospitals, warehouses and outdoor public spaces for automatic lighting management.​

5. Residential outdoor lighting: Suitable for home entrance lights, wall lights, garden lights and perimeter lighting control.​

6. Commercial exterior lighting: Applied in hotels, shopping malls, office buildings and storefront lighting systems to improve energy-saving control.​

7. Small lighting control projects: Ideal for lighting systems that require simple, low-cost and reliable automatic control without complex programming.

Technical Date

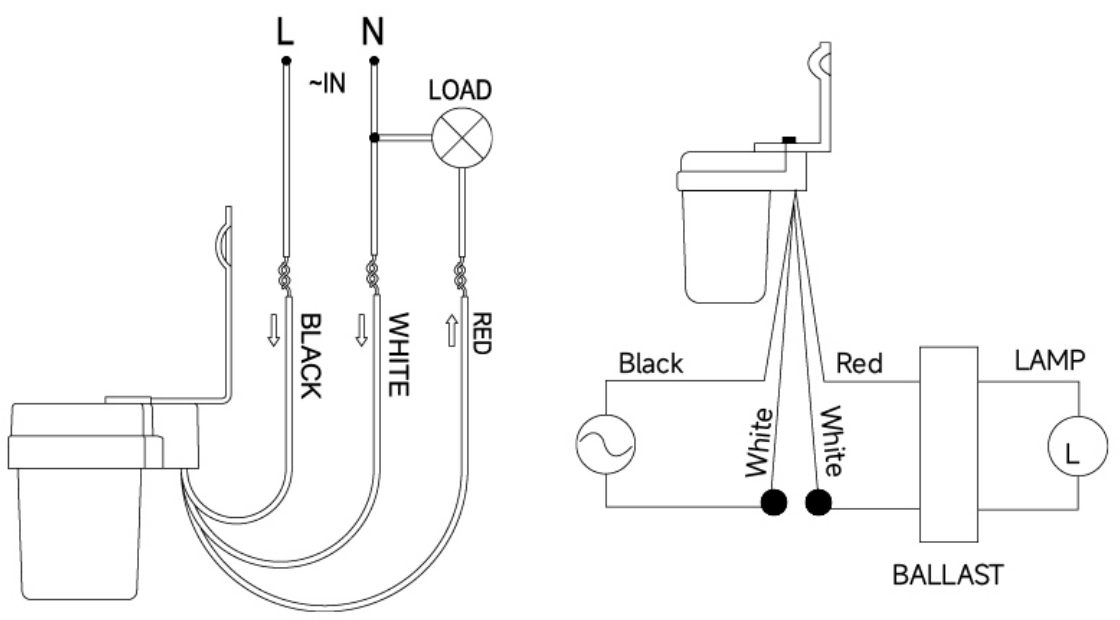

Wiring Diagram

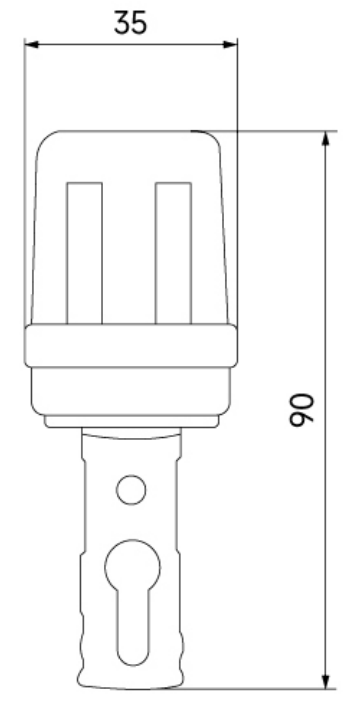

Dimensions
