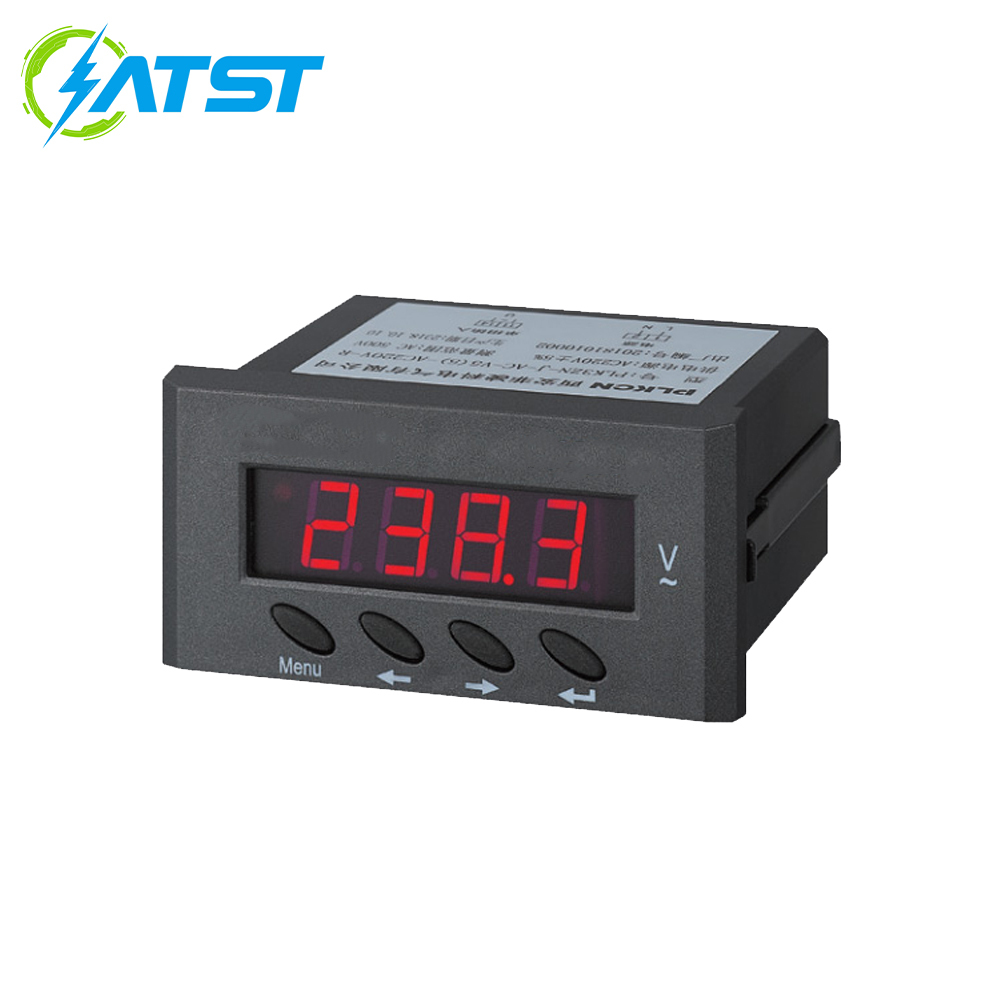

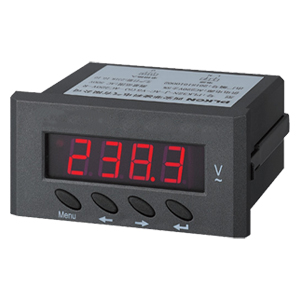

This series of instruments employs AC sampling technology to independently measure circuit parameters such as current, voltage, and frequency, with scaling factors configurable via panel switches. They feature an RS-485 communication interface supporting the Modbus-RTU protocol; additionally, they can convert electrical signals into standard DC analog signals for transmission output, or incorporate functions such as dual-channel relay alarm outputs.
• AC Voltage Signal Input AC: 500V, 100V, 10V, □□ /100V • DC Voltage Signal Input DC: 500V, 100V, 10V • AC Current Signal Input AC: 5A, 1A, □□ A/5A, □□ A/1A • DC Current Signal Input DC: 5A, 1A, □□ A/75mV • Selectable multi-stage digital filtering for effective interference suppression • Supports alarm, transmission output, and control output functions • Relay Contact Capacity: AC 220V / 3A • Relay Contact Lifetime: 10⁵ cycles • Transmission Output Accuracy: 0.8% (12-bit)
PLK3ZN-J1 Power Supply: AC 220V
Dimensions (W × H × D mm): 96 × 48 × 75
Measurement Accuracy: ±0.2% of Full Scale ±2 Digits (DC); ±0.5% of Full Scale ±5 Digits (AC)
