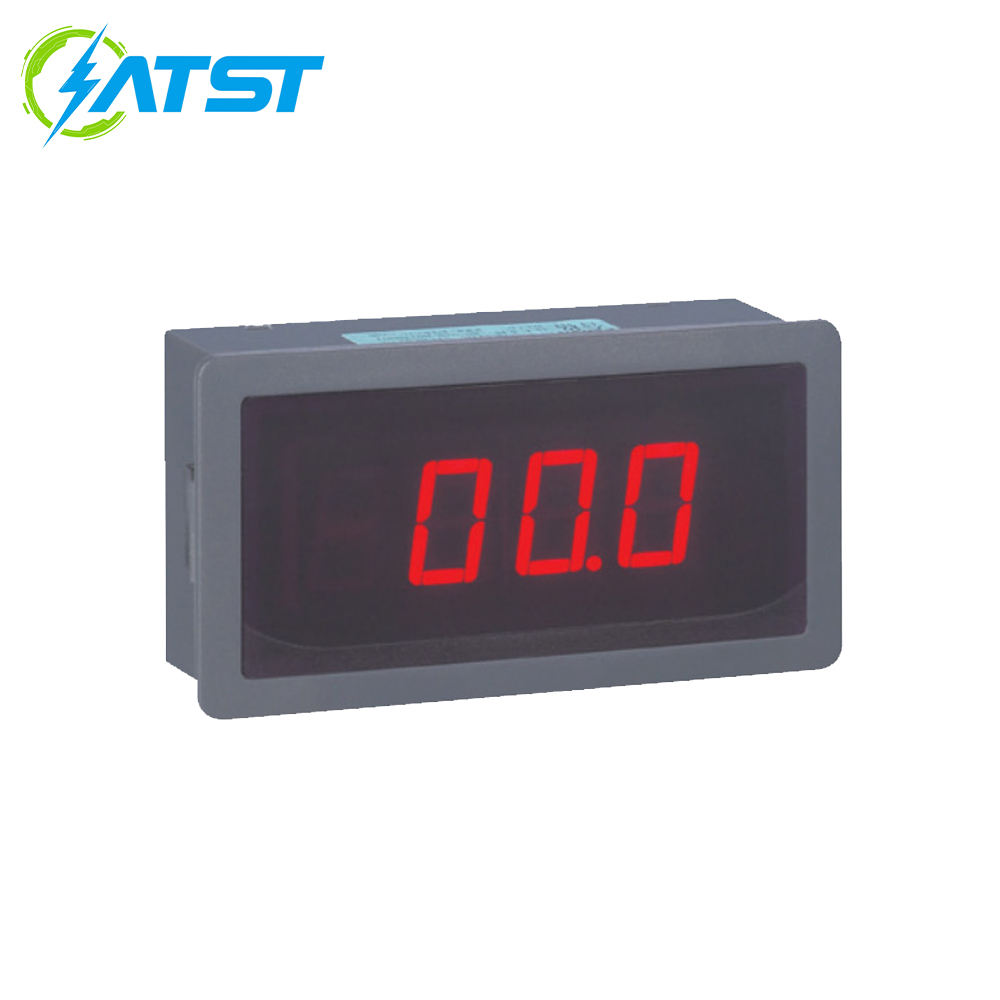

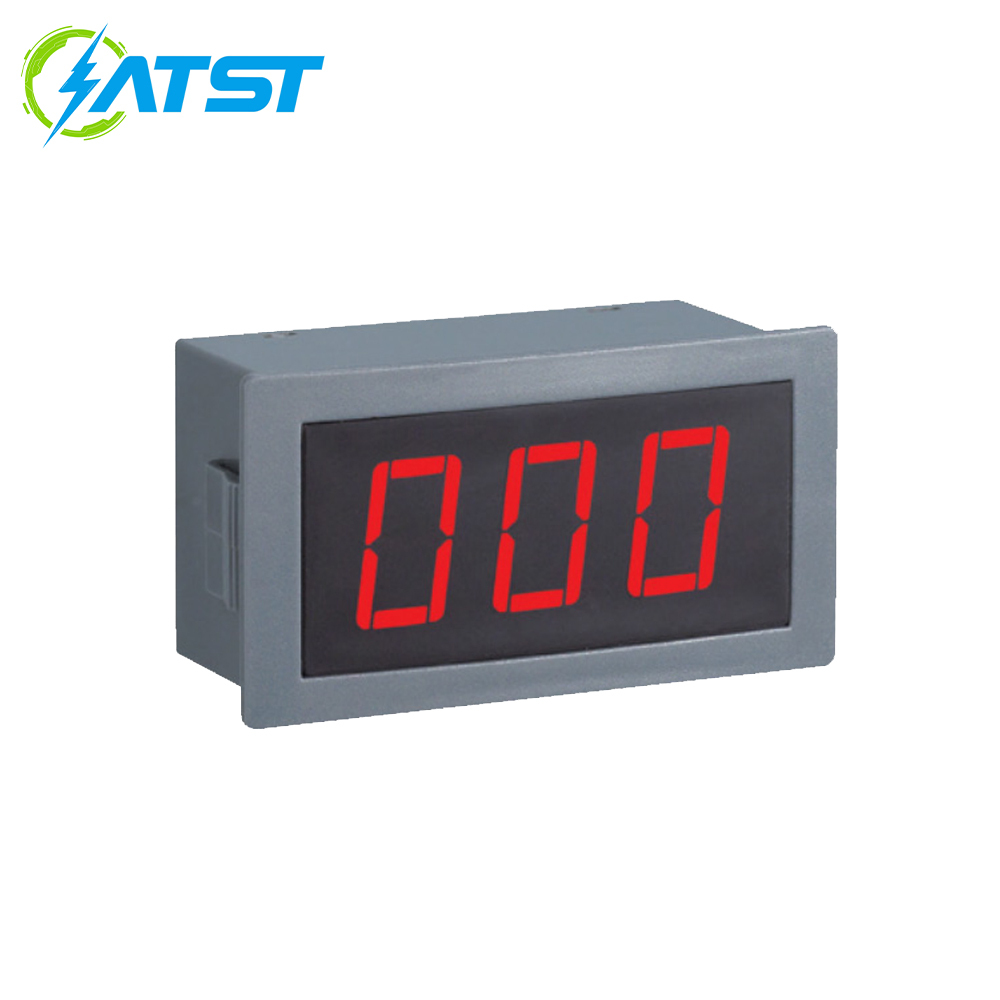

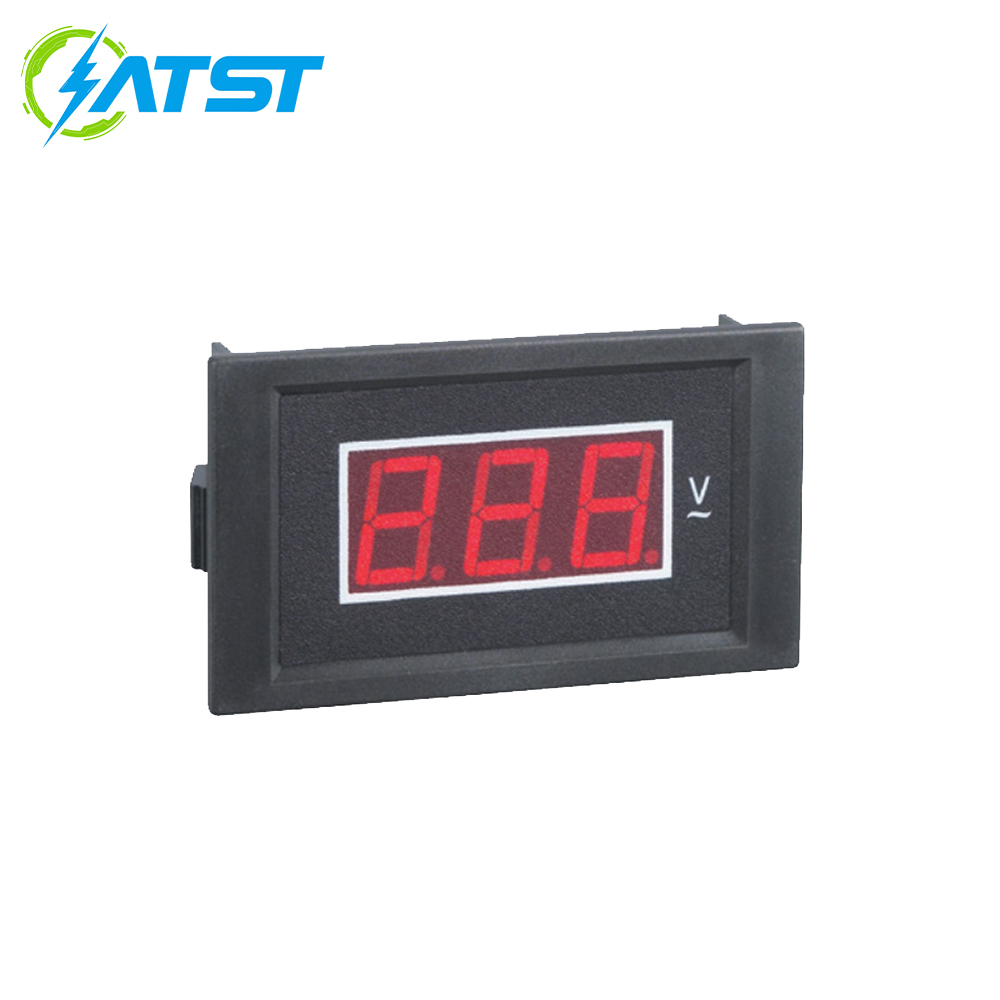

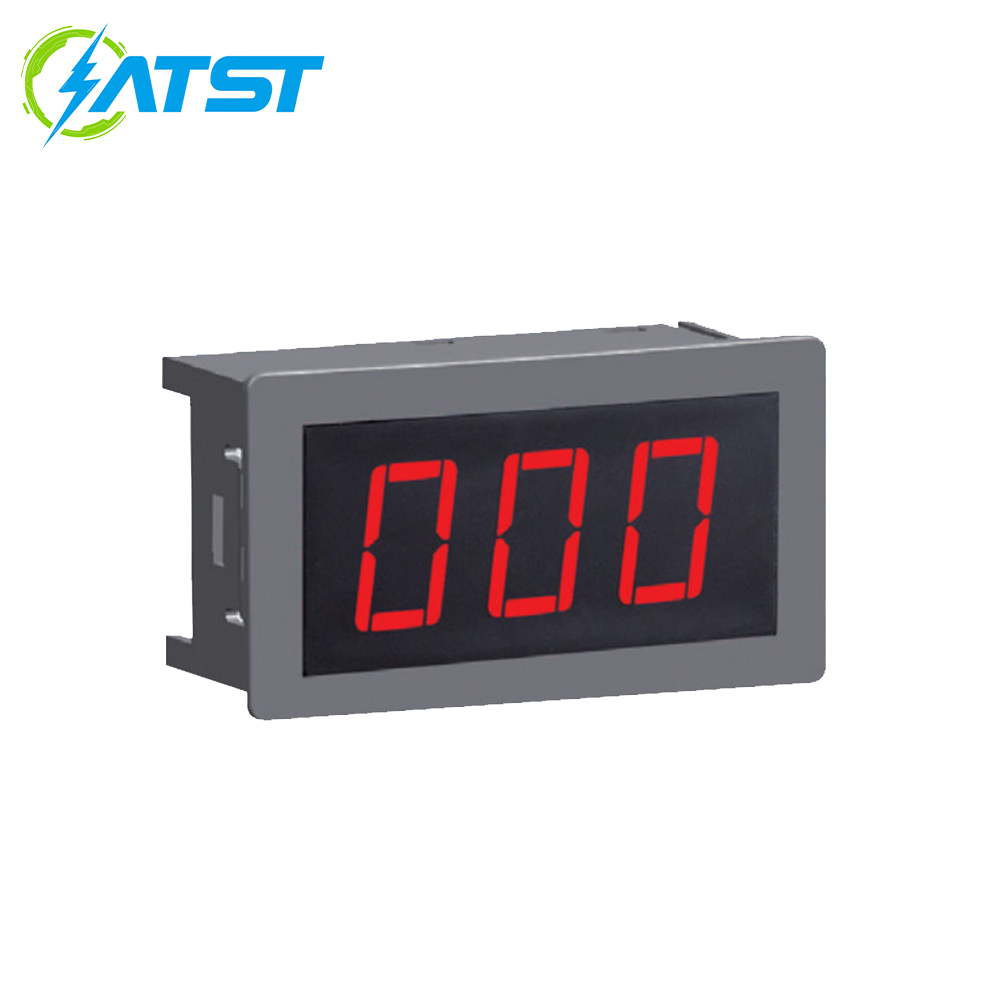

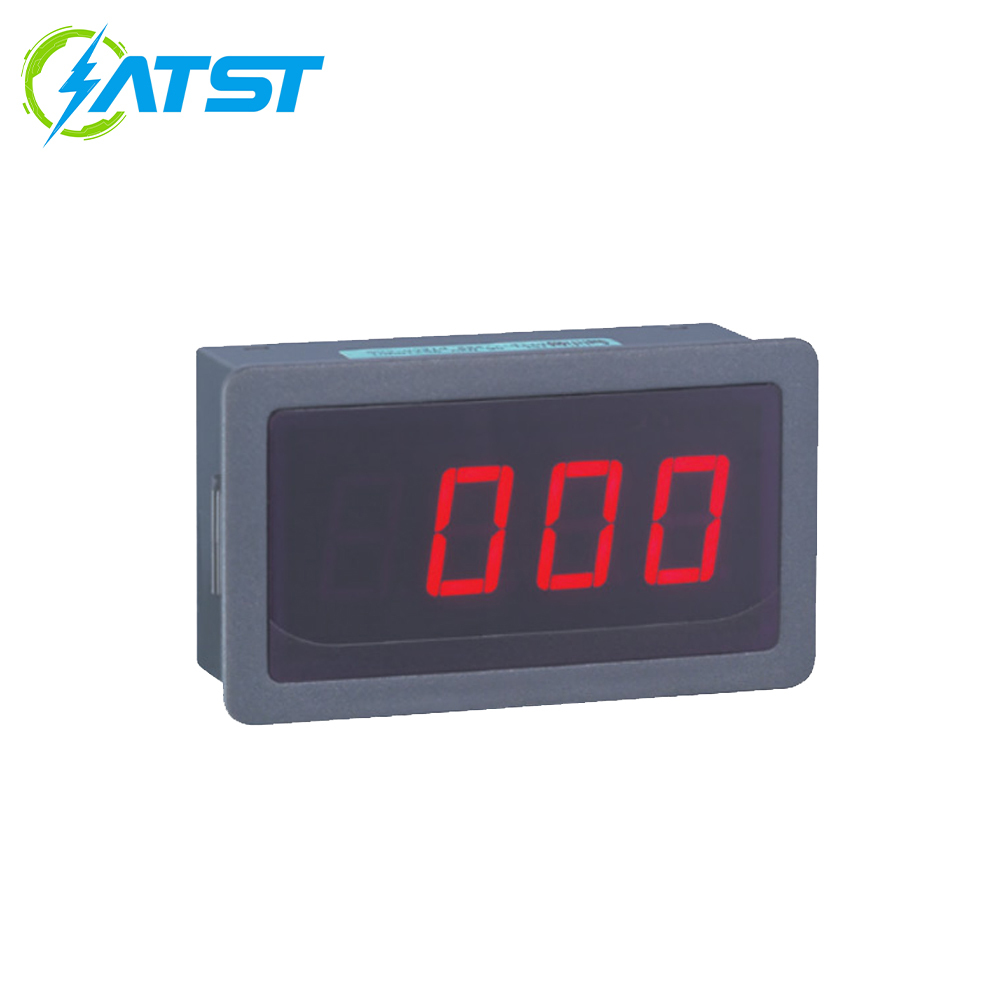

AT5ZN Series Intelligent Power-Specific Meter

Name: AT5ZN Series Intelligent Power-Specific Meter
Brand: MY SHOP

Employing a "two-in-one" technology that integrates a Digital Signal Processing (DSP) chip with an embedded microcontroller, we have independently developed the AT10F003 embedded microcontroller. This design not only simplifies the microcontroller architecture and reduces the need for external components but also ensures precise and stable measurement—thereby meeting the practical measurement and display requirements of power supply manufacturers (e.g., displaying "220" for input voltages ranging from 200 to 240).

GET A QUOTE

Description

Technical Specifications

• Digits and Display: 3 digits (999), 0.56 inches (14.2 mm) high.
• Maximum Input Overload Capability: Current: 1.2× rated value (continuous), 10× rated value (10 seconds); Voltage: 1.2× rated value (continuous), 1.5× rated value (10 seconds).
• Measurement Accuracy: ±0.5% of full scale ±5 digits (AC).
• Auxiliary Power Supply: DC 5V; AC/DC 9–12V ±10% (Isolated).
• Measurement Mode: Dual-slope integration.
• Input Mode: Single-ended input.
• Sampling Time: Approximately 0.3 seconds (Standard).
• Operating Temperature Range: 0°C to 50°C.
• Storage Temperature Range: -5°C to 60°C.
• Operating Humidity: <85% RH.
• Operating Conditions: Altitude ≤ 2000 meters; environments free of corrosive gases.
• Over-range Indication: The first digit displays "999".
• Noise Suppression: Common Mode Rejection Ratio (CMRR) > 86 dB at 50/60 Hz.
• Power Consumption: ≤ 1W (AC); ≤ 0.6W (DC).
• Dielectric Strength: AC 4kV for 1 minute (tested between internal terminals and the housing).

Product Selection

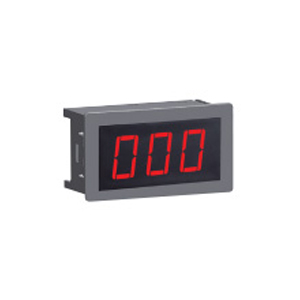

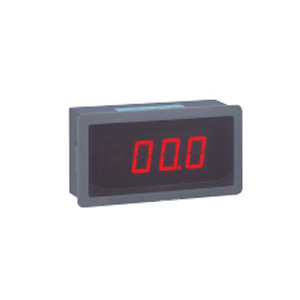

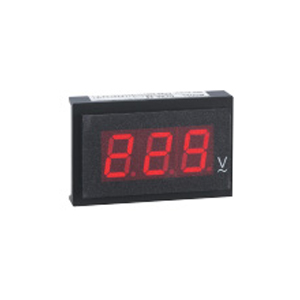

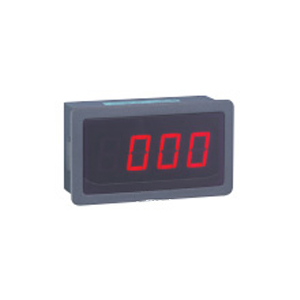

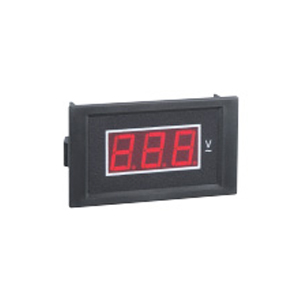

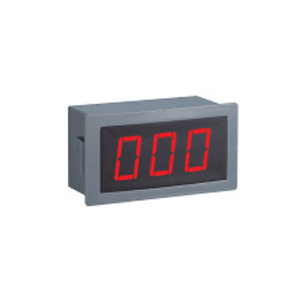

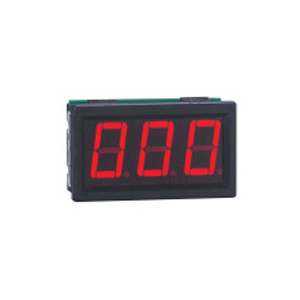

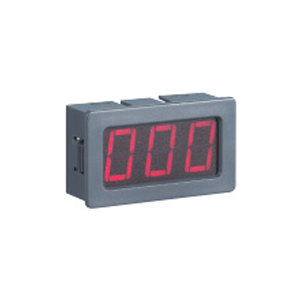

Product Appearance	Model	Operating Power	Supply	Measurement Accuracy Dimensions (W × H × D mm)
	AT5ZN-A	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	79×42.5×25.5
	AT5ZN-A2	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	56×30×22
	AT5ZN-A5	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	46×26×23
	AT5ZN-C	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	71×40×28
	AT5ZN-C1	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	71×40×28
	AT5ZN-D50	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	55×35×30
	AT5ZN-E1	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	46×26.5×20
	AT5ZN-Q3	AC/DC 9V–12V, AC 220V, AC 380V (2-wire system)	±0.5% of Full Scale ±5 Digits (AC)	48×28×23
