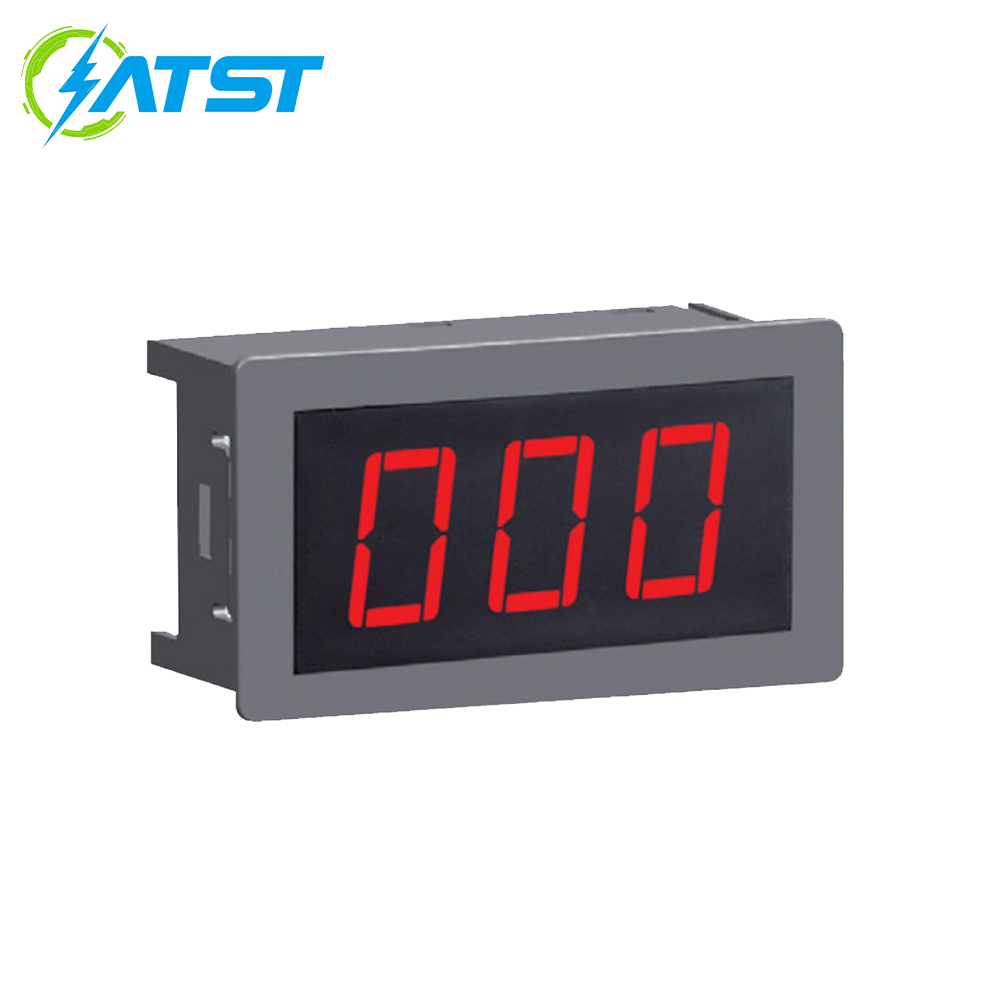

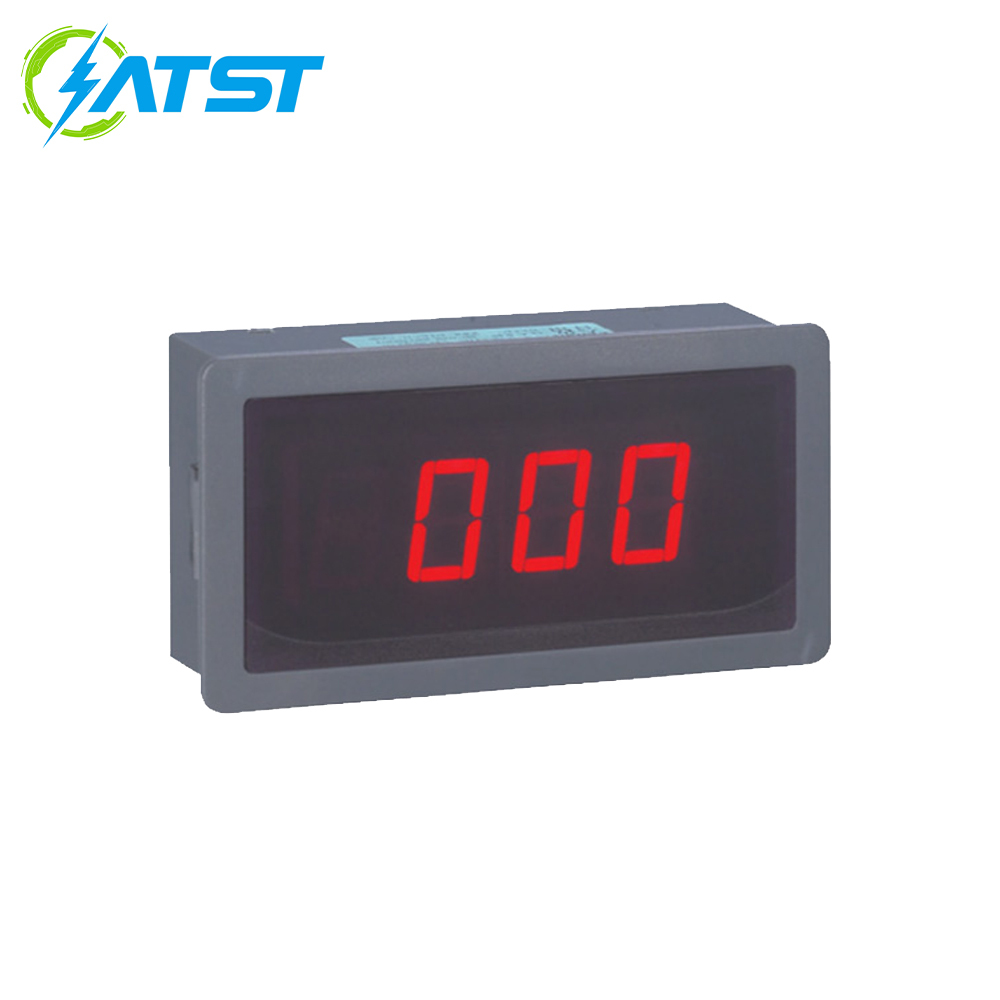

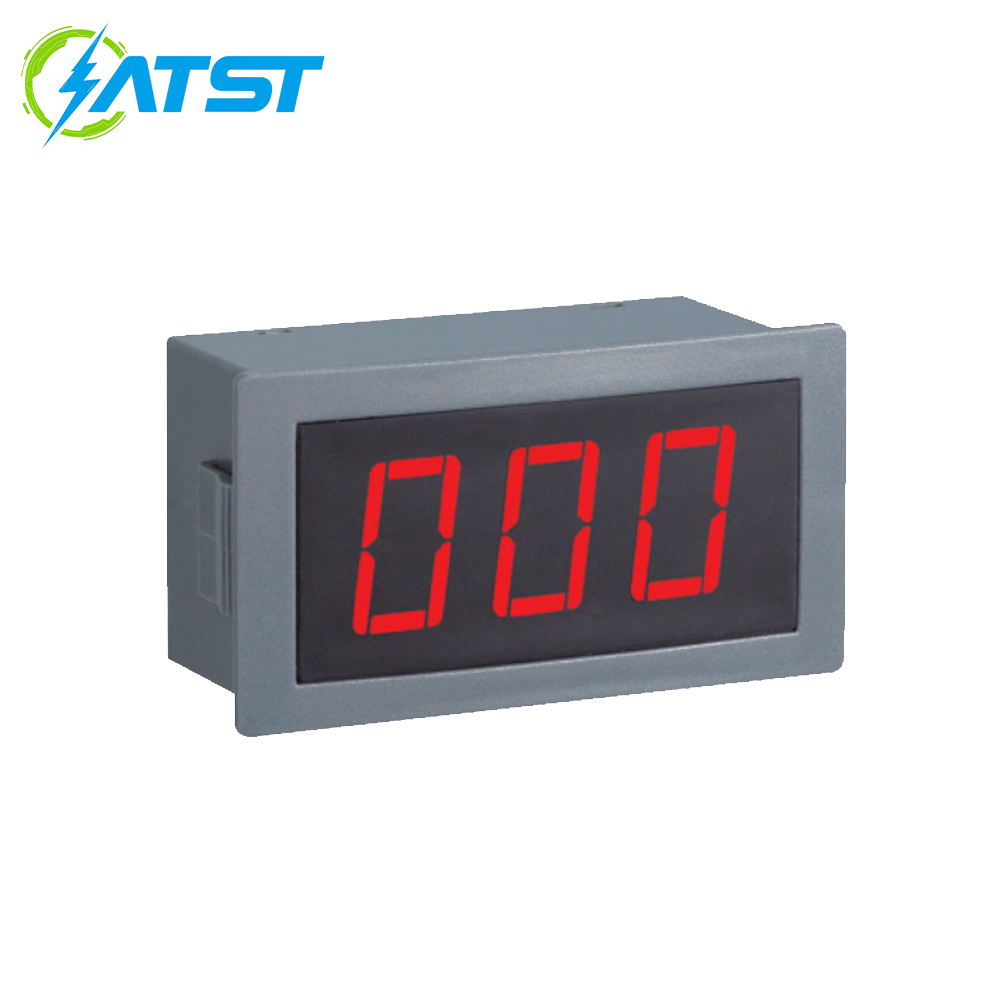

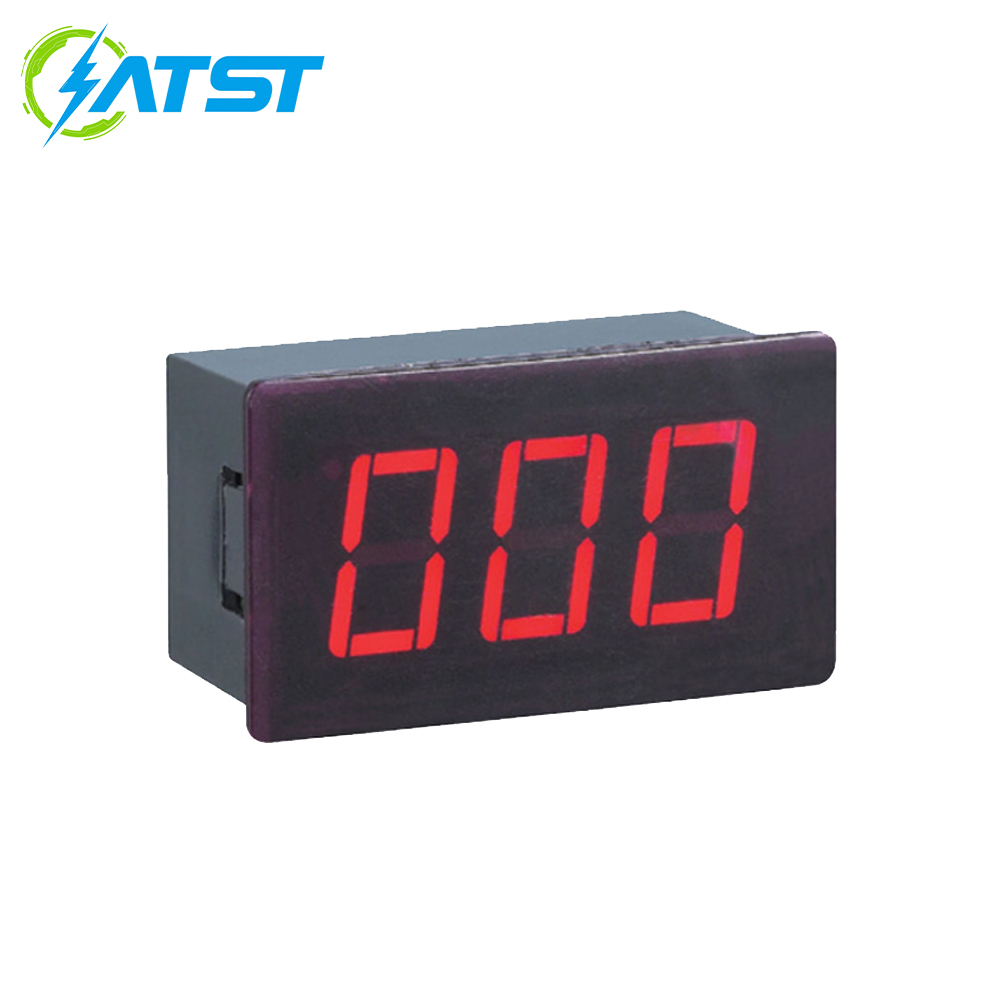

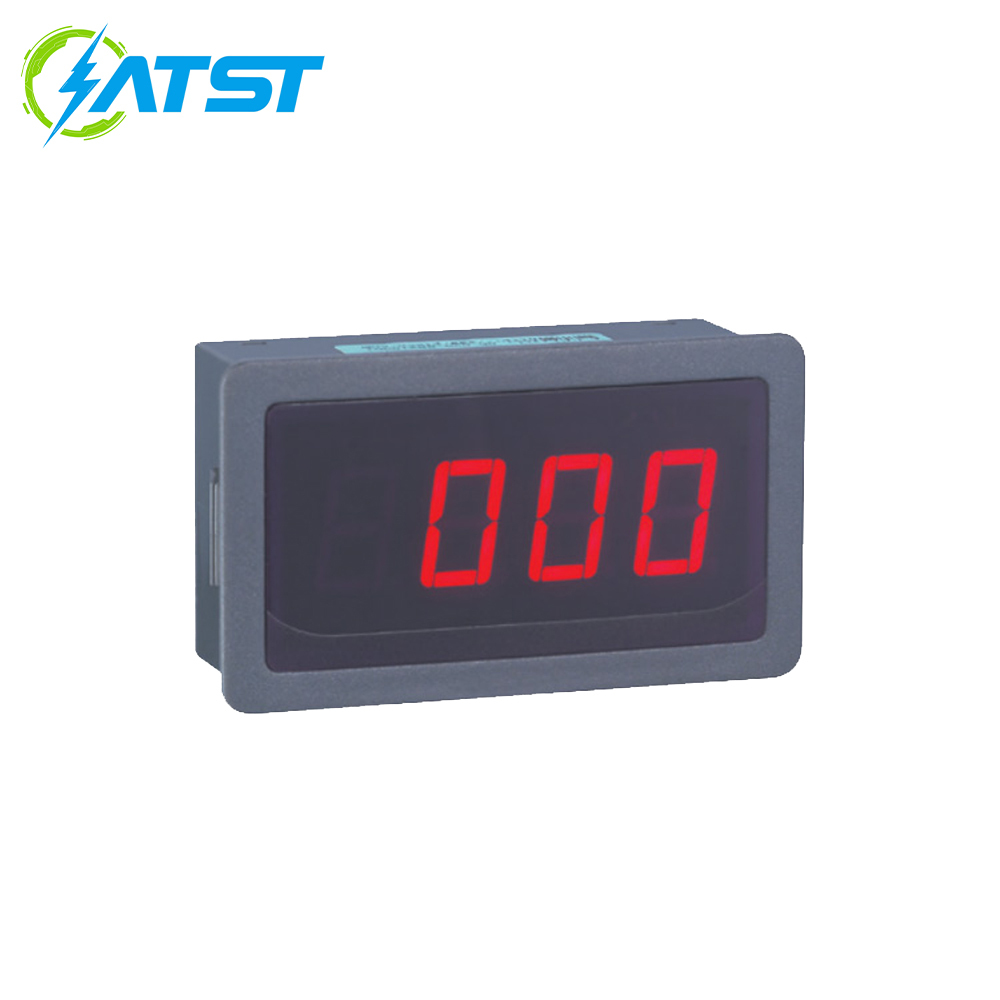

AT8ZN Series Intelligent Meters for Welding Machines

Name: AT8ZN Series Intelligent Meters for Welding Machines
Brand: MY SHOP

Leveraging a "two-in-one" technology that integrates Digital Signal Processing (DSP) chips with embedded microcontrollers, we have independently developed the AT10F003 embedded MCU. This innovation not only simplifies the microcontroller design and reduces the need for external components but also ensures precise and stable measurement capabilities. The AT8ZN series thus offers exceptional value, catering to the diverse requirements of inverter welding machine manufacturers and establishing itself as the most competitive product line in its class. Furthermore, the series features a variety of form factors across the entire range, providing developers with a wide array of options for product application and integration.

GET A QUOTE

Description

Technical Specifications

• Digits and Display: 3 digits (999); LED or LCD display.
• Maximum Input Overload Capability: Current: 1.2 × Rated Value (Continuous), 10 × Rated Value (10 seconds); Voltage: 1.2 × Rated Value (Continuous), 1.5 × Rated Value (10 seconds).
• Measurement Accuracy: ±0.2% of Full Scale ±2 Digits (DC).
• Auxiliary Power Supply: DC 5V; AC/DC 9–12V ±10% (Isolated).
• Measurement Mode: Dual-slope integration; Input Mode: Single-ended input.
• Sampling Time: Approximately 0.3 seconds (Standard).
• Operating Temperature Range: 0°C to 50°C.
• Storage Temperature Range: -5°C to 60°C.
• Operating Humidity: <85% RH.
• Operating Conditions: Altitude ≤ 2000 meters; locations free from corrosive gases.
• Over-range Indication: First digit displays "999".
• Noise Suppression Ratio: Common Mode Rejection Ratio (CMRR) > 86 dB at 50/60 Hz.
• Power Consumption: ≤ 1W (AC); ≤ 0.6W (DC).
• Dielectric Strength: AC 4kV for 1 minute (between internal terminals and enclosure).

Product Selection

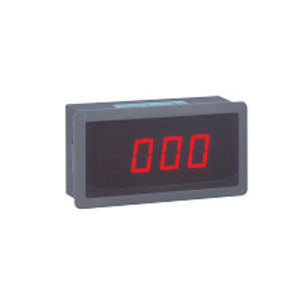

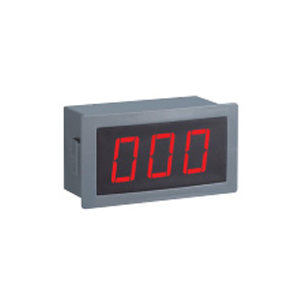

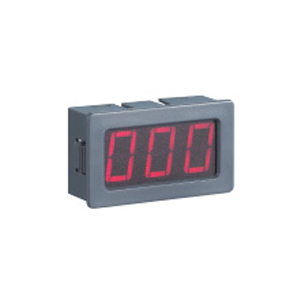

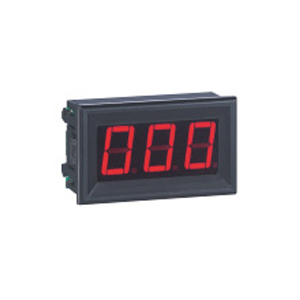

Product Appearance	Model	Operating Power Supply	Measurement Accuracy	Display Method

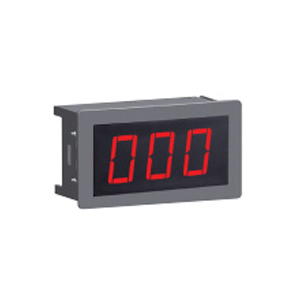

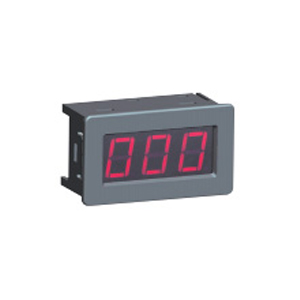

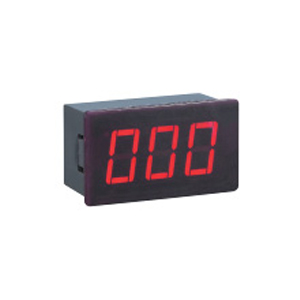

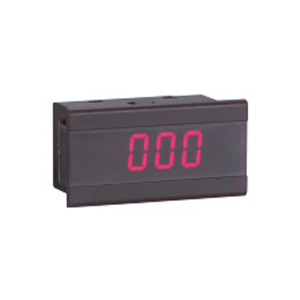

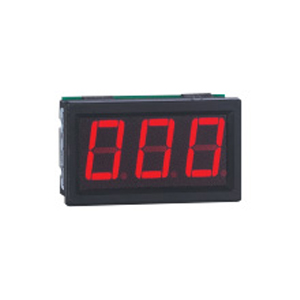

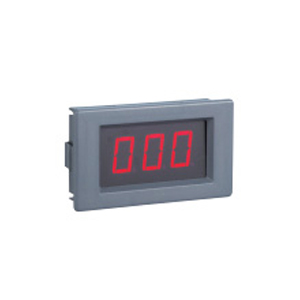

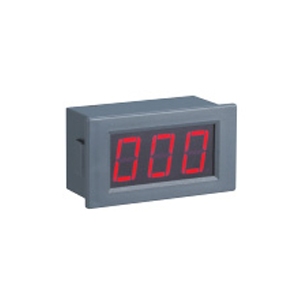

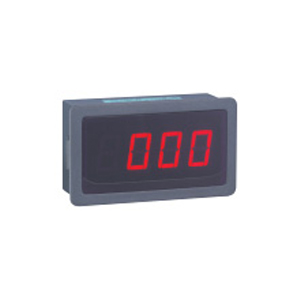

	AT8ZN-A	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-A1	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-A2	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-A3	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-A5	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-E1	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-E2	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-E3	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-Q1	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-Q2	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-Q3	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999
	AT8ZN-Q5	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	0.56-inch Red LED, maximum display: 999

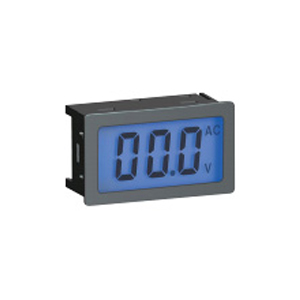

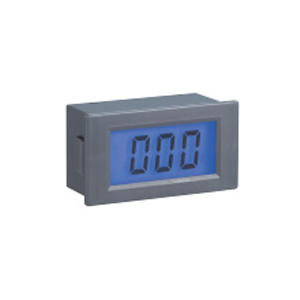

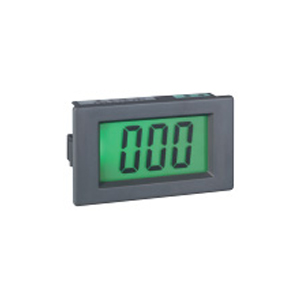

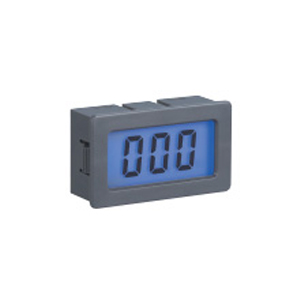

	AT8ZN-T1	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	Character height: 19 mm; LCD display; maximum display: 999.
	AT8ZN-T2	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	Character height: 13 mm; LCD display; maximum display: 999.
	AT8ZN-T3	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	Character height: 13 mm; LCD display; maximum display: 999.
	AT8ZN-T5	DC5V±5% AC/DC9V-12V	±0.2% of Full Scale ±2 Digits (DC)	Character height: 10 mm; LCD display; maximum display: 999.
