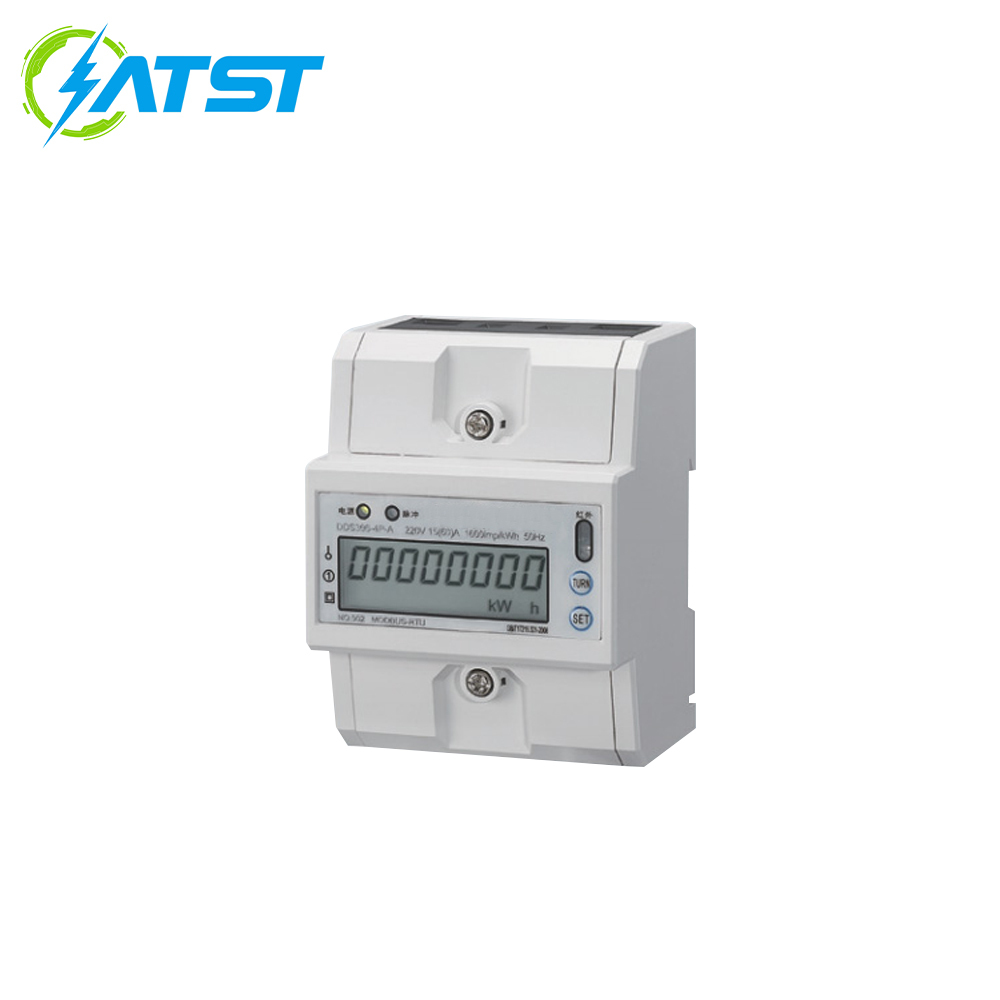

DDS396 DIN-Rail Single-Phase Energy Meter (4-Module)

Name: DDS396 DIN-Rail Single-Phase Energy Meter (4-Module)
Brand: MY SHOP

The DDS396 Series DIN-rail mounted single-phase electronic energy meters comply with the relevant technical requirements of GB/T17215.321-2008 (Class 1 and 2 Static AC Active Energy Meters). They are capable of accurately and directly measuring the active energy consumption of loads within 50Hz or 60Hz single-phase AC power grids. These meters offer a choice between a mechanical register and an LCD for displaying active energy readings, and are equipped with both far-infrared and RS485 communication modules.

GET A QUOTE

Description

Item	Parameter
Electrical Energy Accuracy Class	Class 1
Rated Voltage	220V
Rated Current	2.5(10), 5(20), 10(40), 15(60), 20(80), 30(100)
Starting current	0.04%
Insulation Performance	Power-frequency AC voltage: 2 kV for 1 minute; Impulse voltage: 6 kV.
Display	5 + 1 Digit Display (99999.1 kWh) or LCD Display
Width	6-pole width (12.5 mm module), compliant with DIN 43880 standard.
Install	35 mm standard DIN rail mounting, compliant with DIN EN 50022.
