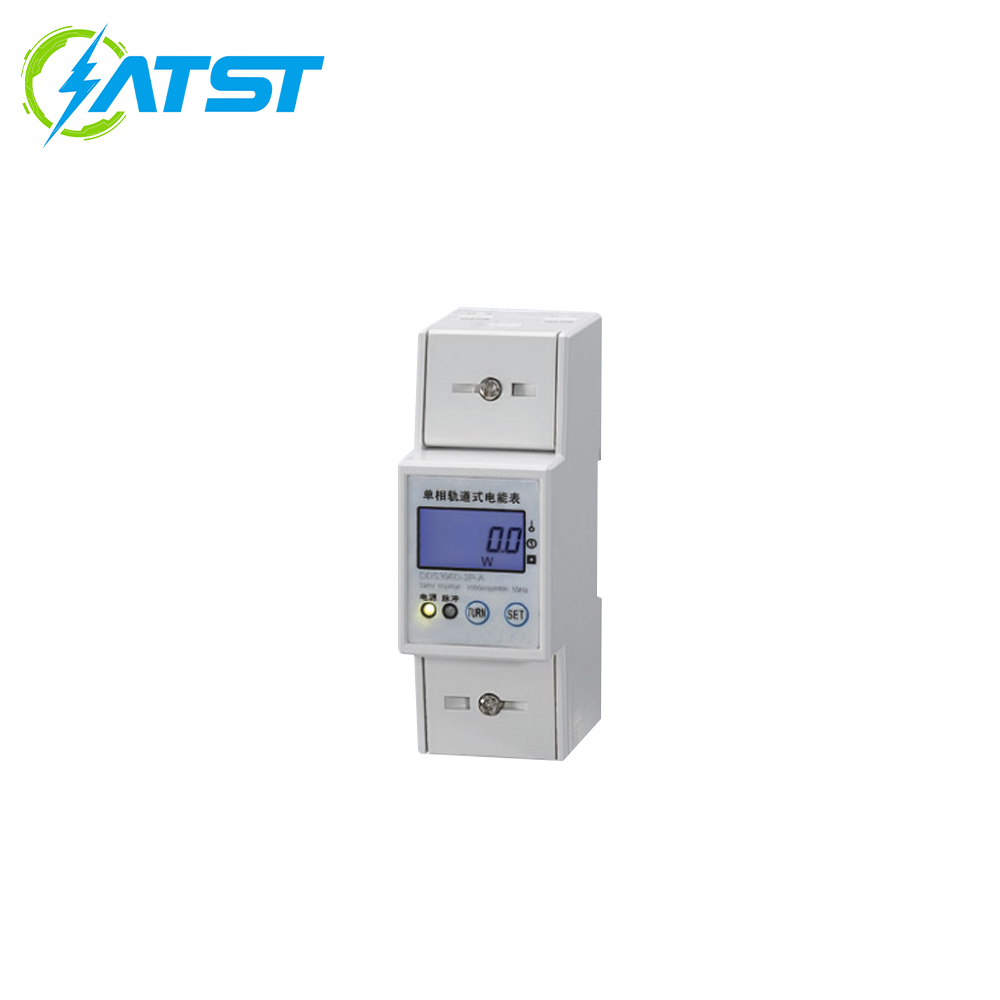

DDS396-U DIN-Rail Single-Phase Energy Meter (2-Module)

Name: DDS396-U DIN-Rail Single-Phase Energy Meter (2-Module)
Brand: MY SHOP

The DDS396-U Series DIN-rail mounted single-phase electronic energy meter accurately and directly measures the active energy consumption of loads within 50Hz or 60Hz single-phase AC power grids. This meter offers the option of displaying active energy readings via either a mechanical counter or an LCD screen. It features excellent reliability, a compact size, light weight, an aesthetically pleasing design, and ease of installation.

GET A QUOTE

Description

Item	Parameter
Electrical Energy Accuracy Class	Class 1
Rated Voltage	220V
Rated Current	2.5(10), 5(20), 10(40), 15(60), 20(80), 30(100)
Starting current	0.04%
Insulation Performance	Power-frequency AC voltage: 2 kV for 1 minute; Impulse voltage: 6 kV.
Display	5 + 1 Digit LCD Display (99999.1)
Width	2-pole width (17.5 mm module), compliant with DIN 43880 standard.
Install	35 mm standard DIN rail mounting, compliant with DIN EN 50022.
