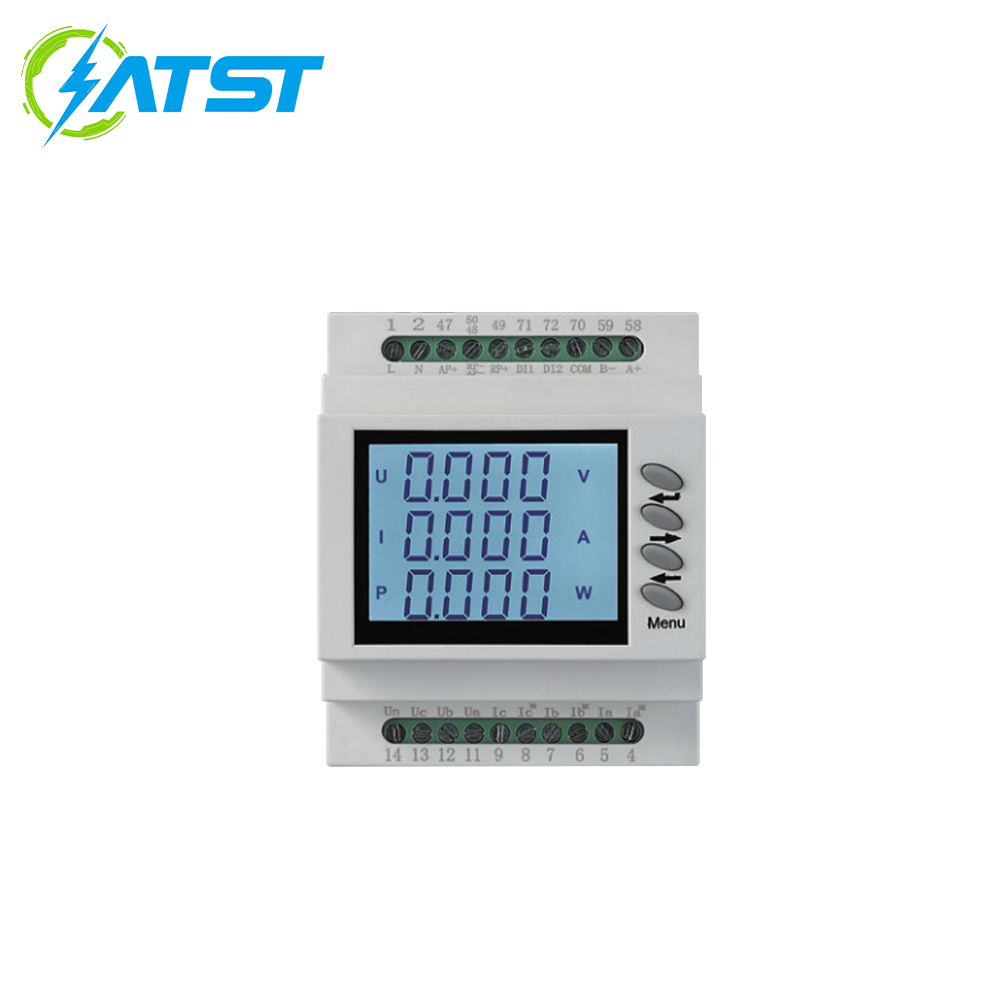

DSF394 DIN-Rail AC Energy Meter (Dedicated for EV Charging Stations)

The DSF394 series AC energy meters are designed for applications such as DC power distribution panels, EV charging stations, and telecommunication base stations. This series of instruments is capable of measuring voltage, current, power, and forward energy within AC systems. They can be utilized for local display purposes or connected to industrial control equipment and computers to form a comprehensive measurement and control system.
  • DSF394 DIN-Rail AC Energy Meter (Dedicated for EV Charging Stations)

Description

Item Parameter
Accuracy Class Class 0.5
Display Mode LED
Input – Nominal Input Voltage: AC 220/380V; Current: 5A
Input – Overload Capable of sustained normal operation at 1.2x; capable of sustaining 2x for 1 second.
Input – Power Consumption Voltage: ≤0.2 VA; Current: ≤0.1 VA
Operating Power Supply – Voltage Range DC 18–60V or AC/DC 85–265V
Operating Power Supply – Power Consumption ≤2W
Insulation Resistance ≥100MΩ
