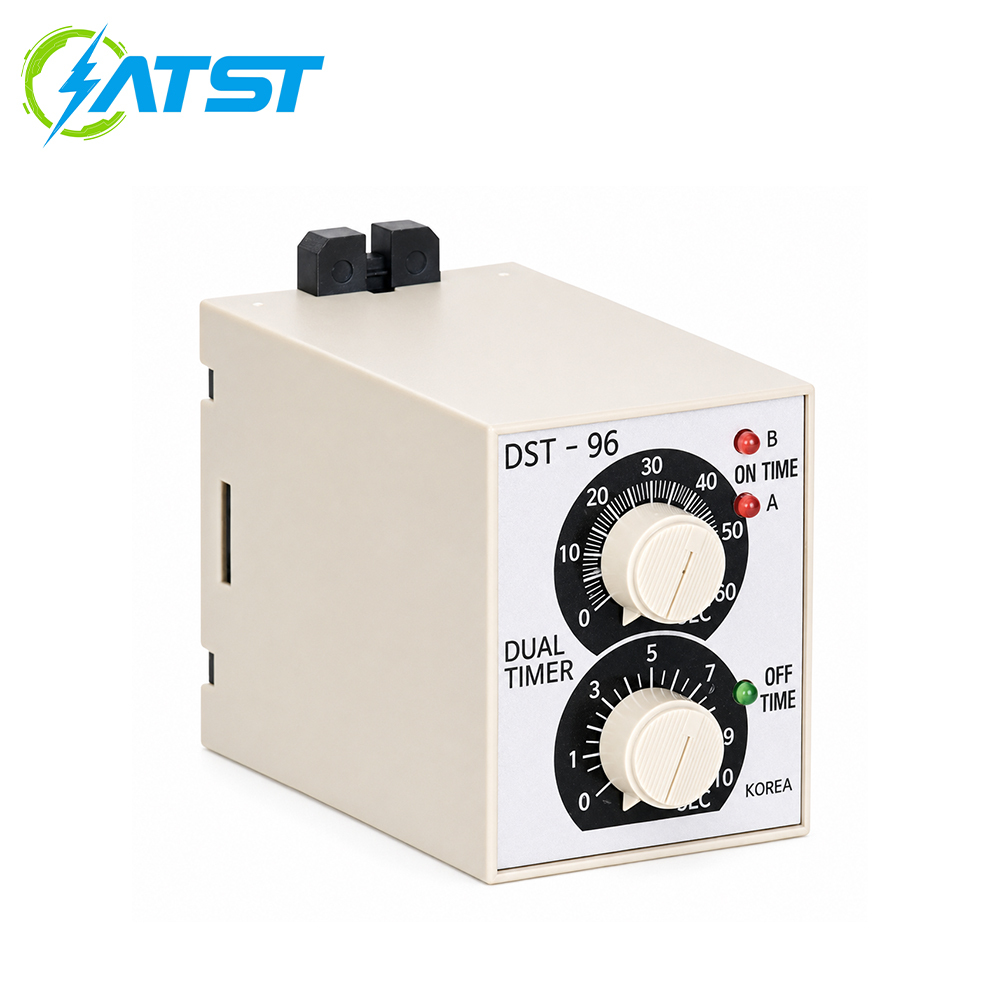

The DST-96 Dual Timer is designed for electrical control applications that require independently adjustable ON and OFF timing. With separate ON TIME and OFF TIME controls and multiple AC/DC power supply options, it provides a practical timing solution for industrial machinery, automation equipment and repetitive control circuits.
The DST-96 Dual Timer provides two independent timing adjustments for controlling the operating and stopping periods of electrical equipment. Its front panel includes separate adjustment knobs for ON TIME and OFF TIME, allowing engineers to configure repetitive operating cycles according to the requirements of the application. The DST-96 supports multiple power supply specifications, including AC110V, AC220V, DC12V, DC24V and DC110V, making it adaptable to different electrical control systems. Depending on the timer specification, the ON-time adjustment range can extend up to 30 seconds or 60 seconds, while the OFF-time range extends up to 10 seconds. The product is available in exposed and recessed mounting configurations for flexible equipment integration.
Main Features
Dual timer design with independent ON and OFF time adjustment
Separate ON TIME and OFF TIME controls
Power supply options: AC110V / AC220V
DC power options: DC12V / DC24V / DC110V
ON-time range: 0.02–30 seconds for the 30-second version
ON-time range: 0.02–60 seconds for the 60-second version
OFF-time range: 0.02–10 seconds
Easy front-panel time adjustment
Suitable for repetitive ON/OFF control applications
Available in exposed type and recessed type
Compact design for electrical control equipment
Applications
Industrial Machinery Cycle Control The DST-96 can be used in machinery that requires equipment to operate and stop repeatedly according to preset time intervals. Automated Production Equipment Independent ON and OFF timing makes the timer suitable for repetitive control sequences in automated production equipment. Motor and Auxiliary Equipment Control The DST-96 can provide timed operating and stopping intervals for motors and auxiliary devices when used as part of an appropriate electrical control circuit. Pumps and Ventilation Equipment Suitable for applications where pumps, fans or ventilation equipment need periodic ON/OFF operation rather than continuous running. Packaging and Processing Machinery The dual-timing function can support cyclic control processes in packaging, conveying and processing equipment. Electrical Control Panels With multiple AC and DC power supply options, the DST-96 can be integrated into control panels requiring adjustable repetitive timing functions. The DST-96 Dual Timer provides engineers with a simple solution for independent ON/OFF time control, making it suitable for industrial equipment, automation systems and repetitive electrical control applications.
