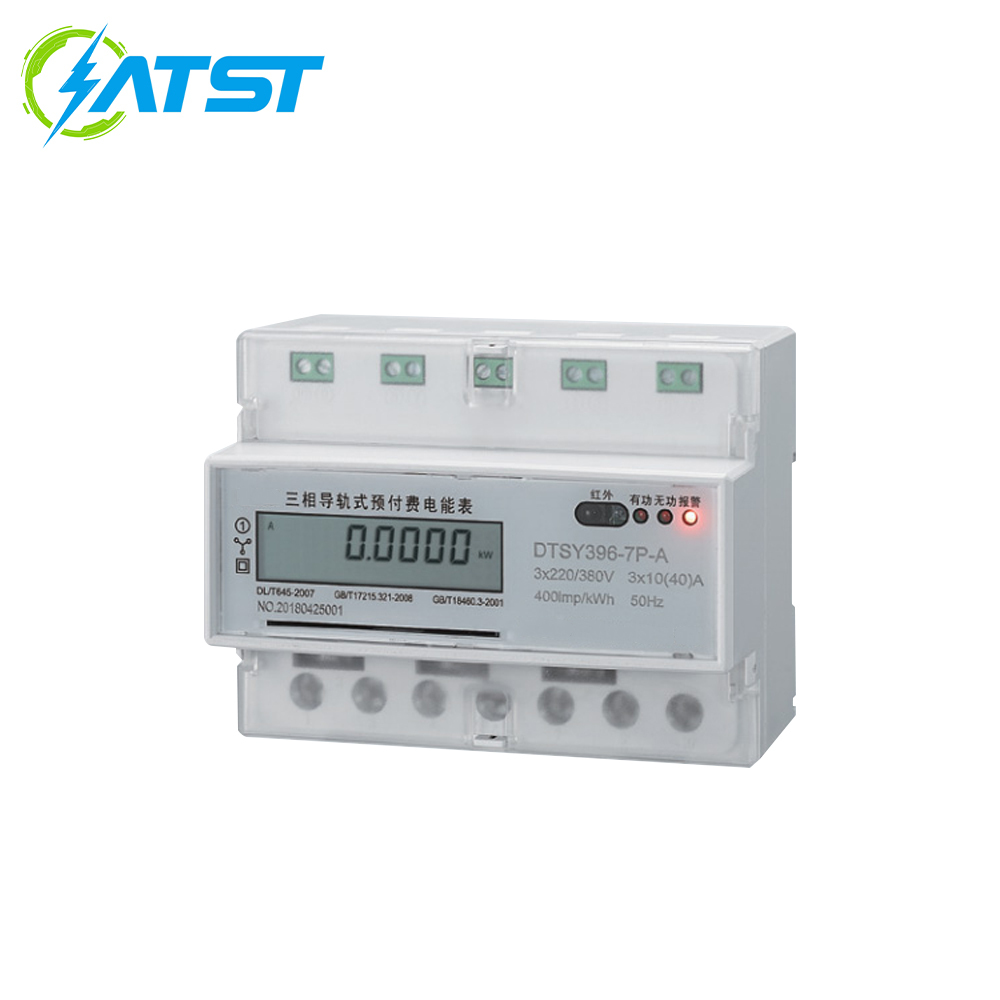

DTSY396 Three-Phase Electronic Prepayment DIN-Rail Energy Meter (7-Module)

Name: DTSY396 Three-Phase Electronic Prepayment DIN-Rail Energy Meter (7-Module)
Brand: MY SHOP

The DTSY396 features a comprehensive suite of functions, including energy metering, tariff management, load control, and the collection of electricity consumption data, thereby implementing a prepaid electricity management system. The meter is equipped with both RS485 and infrared (IR) interfaces to facilitate fully automated centralized meter reading. This device is suitable for metering three-phase AC active energy at a rated frequency of 50 Hz or 60 Hz.

GET A QUOTE

Description

Item	Parameter
Electrical Energy Accuracy Class	Class 1, Class 2
Rated Voltage	220V
Rated Current	1.5(6)A, 2.5(10)A, 5(20)A, 10(40)A, 15(60)A, 20(80)A, 30(100)A
Insulation Performance	Power-frequency AC voltage: 2 kV for 1 minute; Impulse voltage: 6 kV.
Display	LCD Display
Width	10-pole width (12.5 mm module), compliant with DIN 43880 standard.
Install	35 mm standard DIN rail mounting, compliant with DIN EN 50022.
