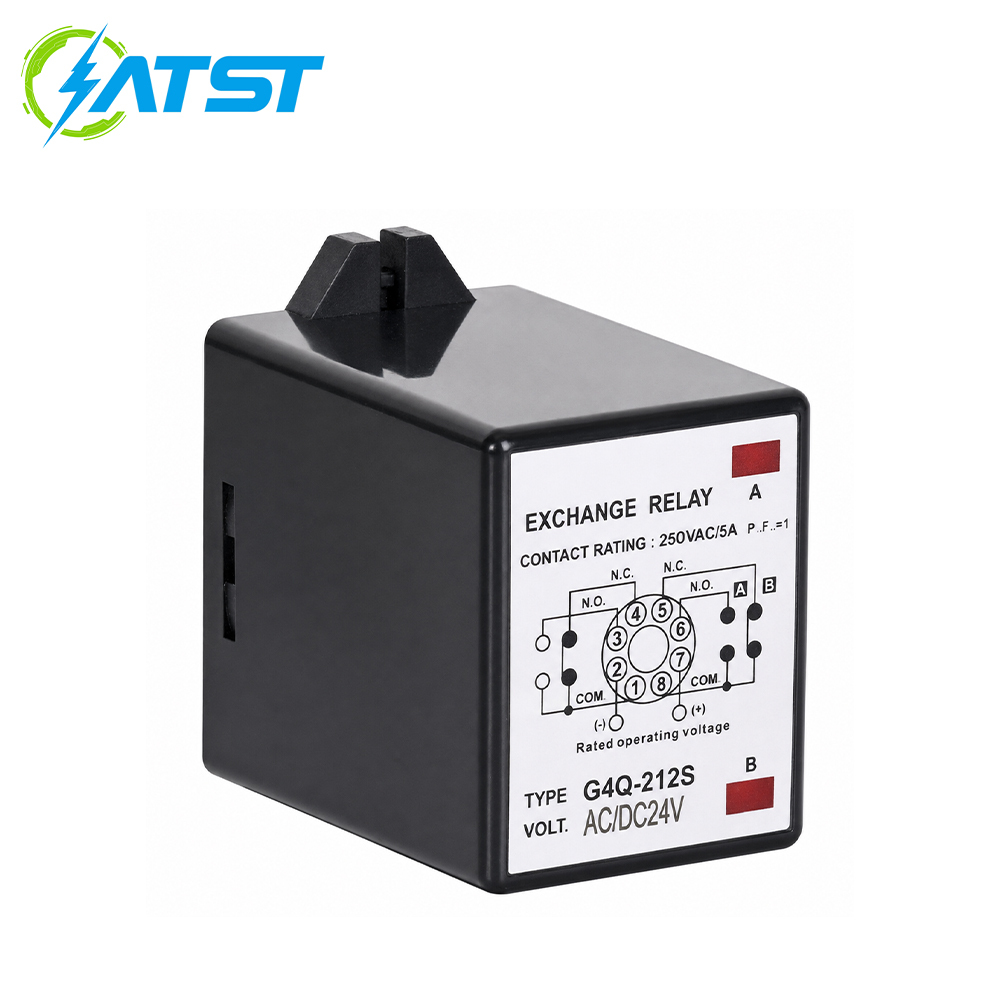

Name: G4Q-212S Other Series
Brand: MY SHOP

Description

Product Overview

The G4Q-212S Exchange Relay is an electromechanical control relay designed for switching and signal-transfer functions in industrial electrical systems.
It supports a wide range of rated coil voltages, including AC12V, AC24V, AC50V, AC100/110V, AC200/220V, DC12V, DC24V, DC48V, DC100V and DC200V, allowing engineers to select a suitable version for different control power supplies.
The relay has a rated operating current of 5A and supports contact voltages up to AC250V and DC250V. Its compact plug-in style construction makes it suitable for integration into control cabinets, industrial machinery and automated equipment.

Main Features

Exchange relay for electrical switching and control applications
Multiple AC coil voltage options:AC12V
AC24V
AC50V
AC100/110V
AC200/220V
Multiple DC coil voltage options:DC12V
DC24V
DC48V
DC100V
DC200V
Rated operating current: 5A
Contact voltage: AC250V / DC250V
Rated load:AC220V 5A / DC24V 5A for resistive load
AC220V 3A / DC24V 4A for inductive load
Maximum switching capacity:1100VA / 120W for resistive load
660VA / 100W for inductive load
Compact relay-style housing
Suitable for industrial electrical control circuits

Applications

Industrial Electrical Control Panels
The G4Q-212S can be used in electrical cabinets for switching, signal transfer and auxiliary control functions.
Industrial Machinery
Suitable for machine control circuits requiring reliable switching between control signals and electrical loads.
Automation Control Systems
The relay can be integrated into automated equipment to interface control signals with contactors, indicators and other electrical components.
Motor Control Circuits
The G4Q-212S can support auxiliary switching functions in motor starter and motor control systems.
Pumps and Fans
Suitable for auxiliary relay control in pump, fan and ventilation equipment.
Production and Packaging Equipment
The relay can be incorporated into manufacturing, packaging and processing machinery where repeated electrical switching is required.
The G4Q-212S Exchange Relay combines multiple AC/DC coil voltage options, 5A switching capability and compact construction, making it suitable for a wide range of industrial control and automation applications.

Technical Date

Rated voltage	AC12, AC24, AC50, AC100(110),AC200(220), DC12,DC24, DC48,DC100,DC200
Rated current on duty	5A
Contact voltage	AC250V, DC250V
Rated load	AC220V 5A, DC24V 5A(Resistive load) AC220V 3A, DC24V 4A(lnductive load)
Maximum switching capacity	1100VA, 120W(Resistive load) 660VA, 100W(Inductive load)

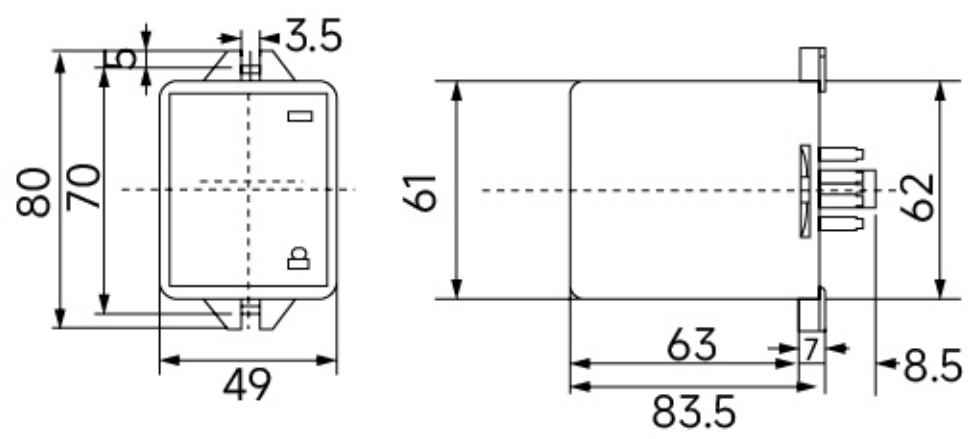

Dimensions
