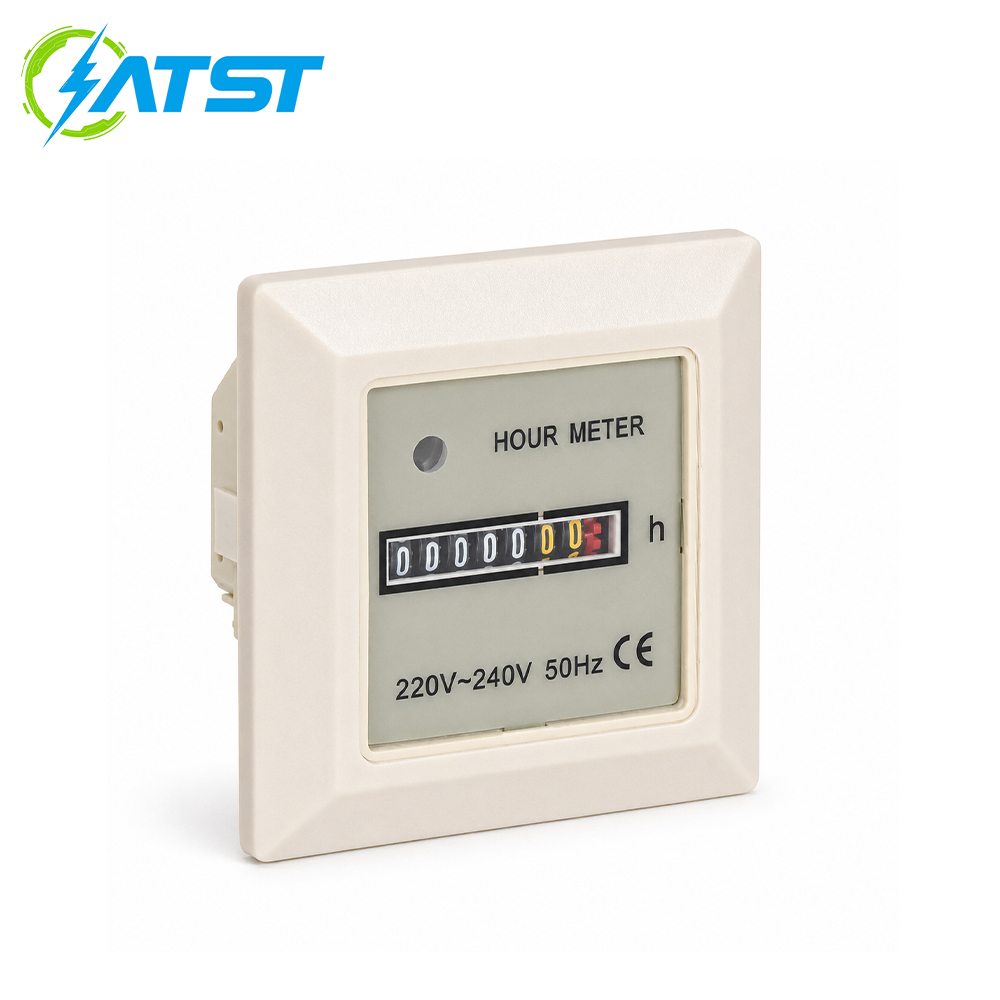

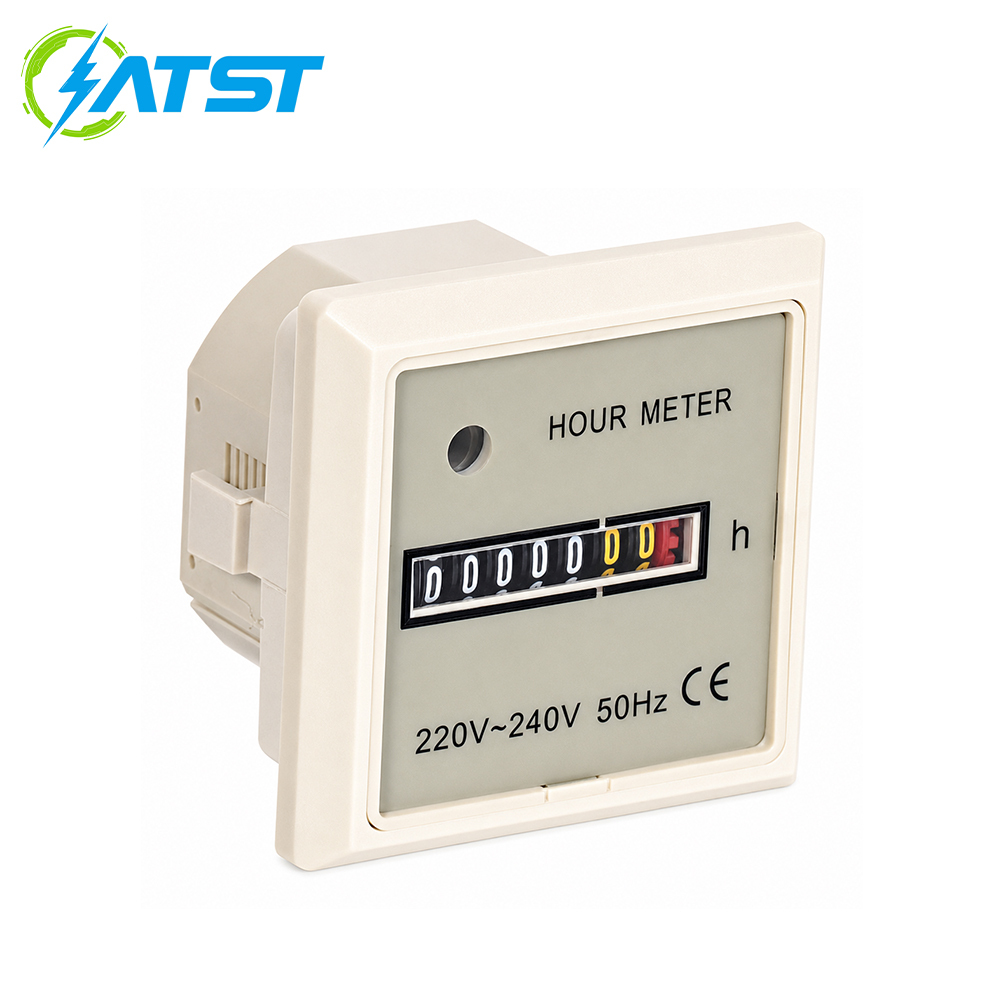

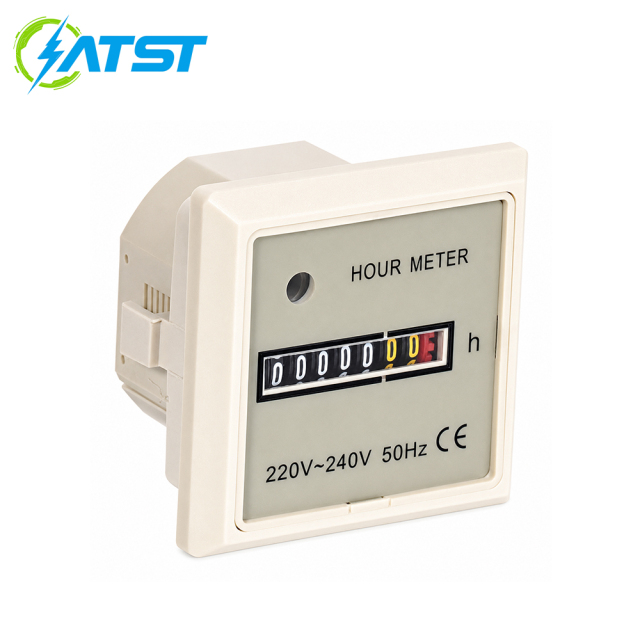

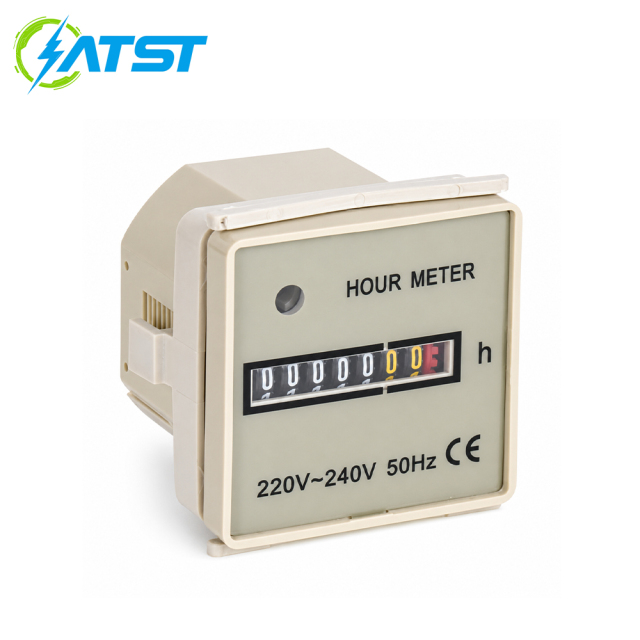

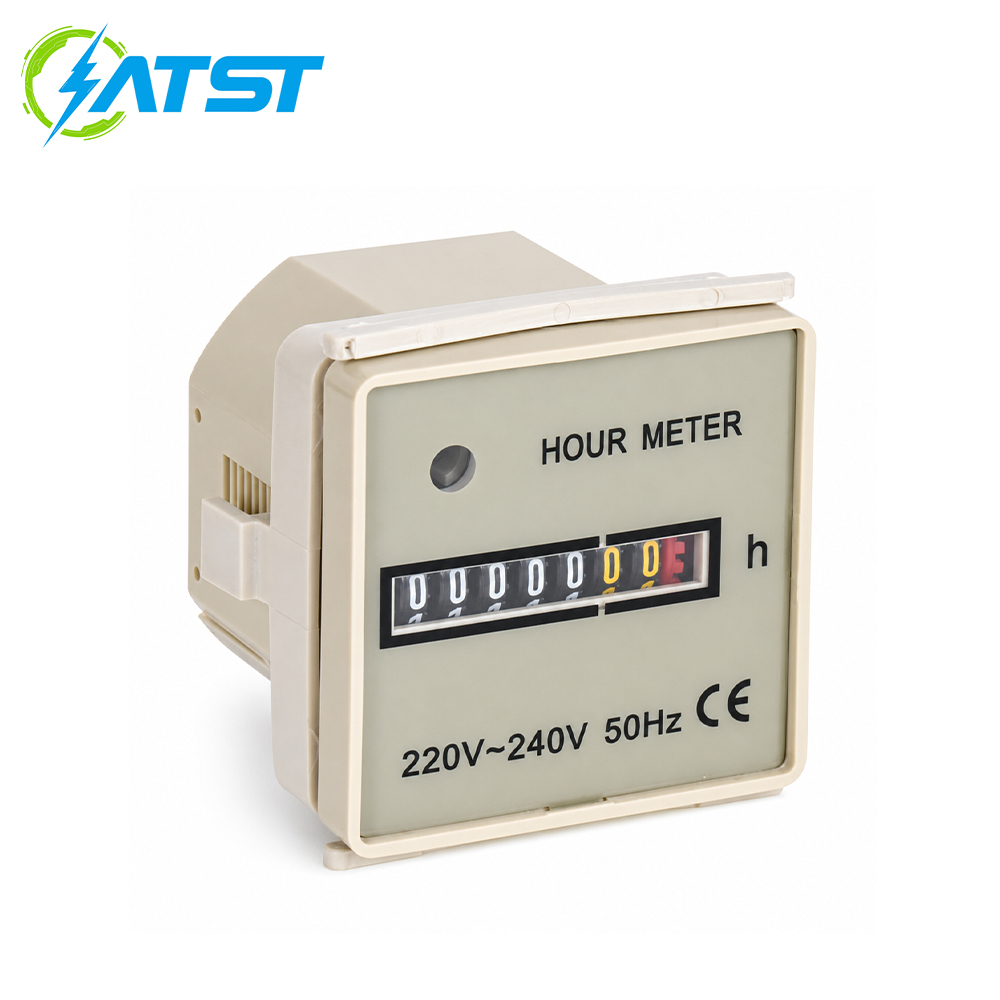

Product Overview
Based on ATST Electric’s core concept of “Precise Control, Safe and Reliable”, HM-2 Hour Meter is designed for recording the total operating time of electrical equipment. It accurately accumulates working hours when the device is powered, helping users monitor equipment usage and schedule maintenance effectively.
HM-2 is widely used in industrial and commercial systems where runtime tracking is essential for equipment management, maintenance planning and operational efficiency improvement. It provides a simple and reliable solution without complex programming or configuration.
With compact structure and standard panel/DIN mounting design, HM-2 can be easily integrated into control panels, distribution boards and equipment cabinets. It is suitable for long-term operation in harsh industrial environments.
Main Features
1. Accurate time accumulation: Continuously records total operating hours of connected equipment.
2. High reliability design: Stable counting mechanism ensures long-term measurement accuracy.
3. Compact structure: Small size suitable for installation in control panels and electrical cabinets.
4. Easy installation: Simple wiring and mounting design for fast deployment.
5. Wide application compatibility: Suitable for AC powered industrial equipment.
6. Maintenance support function: Helps track equipment runtime for preventive maintenance planning.
7. Durable industrial design: Built for continuous operation in electrical and mechanical environments.
Application Scenarios
1. Motor runtime monitoring: Used for tracking operating hours of industrial motors and production equipment.
2. Pump systems: Suitable for water pumps, irrigation pumps, drainage pumps and circulation systems.
3. Generator sets: Used for recording total running hours of backup and standby generators.
4. HVAC systems: Applied in air conditioners, ventilation fans and cooling systems for maintenance scheduling.
5. Industrial machinery: Suitable for production lines, compressors and mechanical equipment usage tracking.
6. Commercial equipment: Used in elevators, escalators and building equipment management systems.
7. Maintenance management systems: Helps engineers plan preventive maintenance based on accumulated operating time.
Technical Date
| Working voltage | DC10-60V, AC24/36/48/110/220V |
| Working mode | Mechanical |
| Timing method | Power-on timing |
| Face frame size | 48x48mm,72x72mm |
| Counting range | 0~99999.99H |
| Frequency | 50Hz, 60Hz |
| Power consumption | 0.5W |

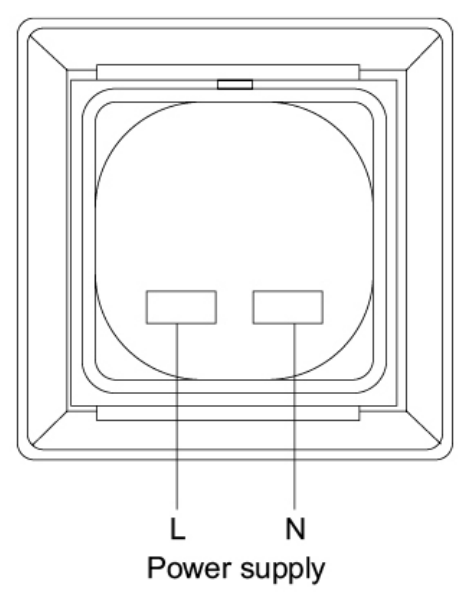

Wiring Diagram

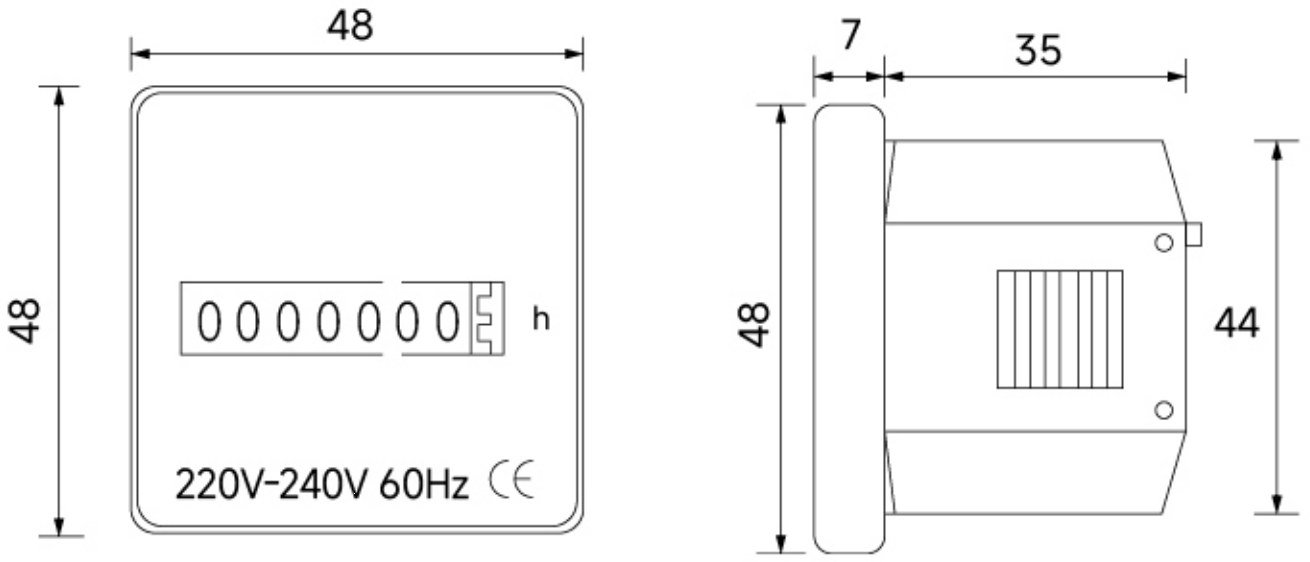

Dimensions
