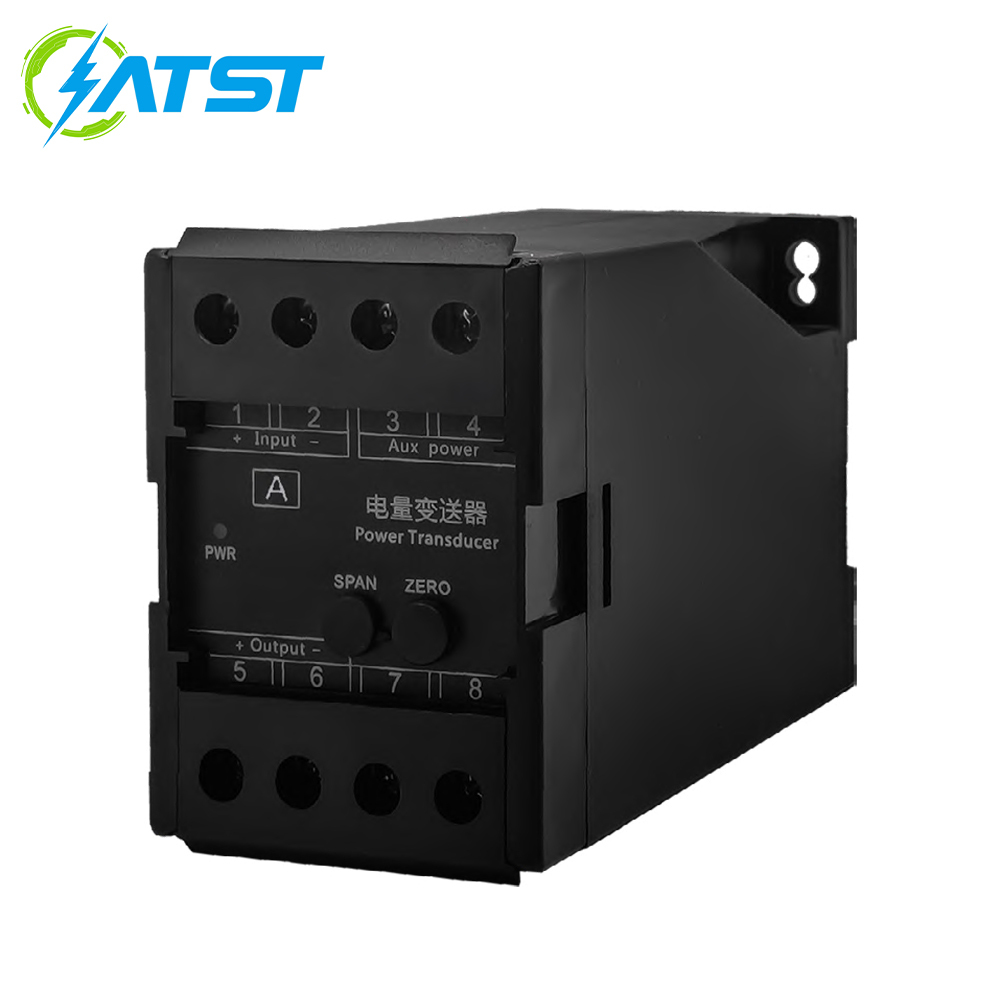

HYB-A1 is the core product of the single-phase AC current transmitter in the B series of Heyi Electric, designed specifically for achieving high-precision and high reliability isolated transmission of industrial field current signals. This product can input AC currents such as 0~1Aac, 0~5Aac, 0~10Aac, 0~20Aac, and linearly convert them into standard DC signals (such as 0~20mAdc, 4~20mAdc, 0~5VDC, 0~10Vdc) or digital signal outputs. It is suitable for automation monitoring and control systems in industries such as power, petroleum, coal, metallurgy, and railways.

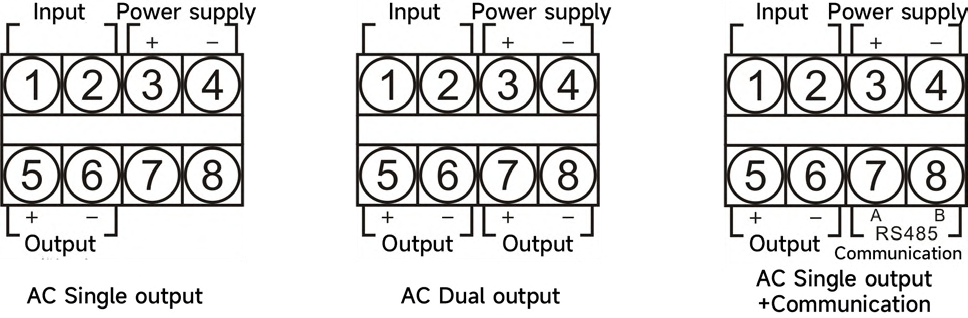

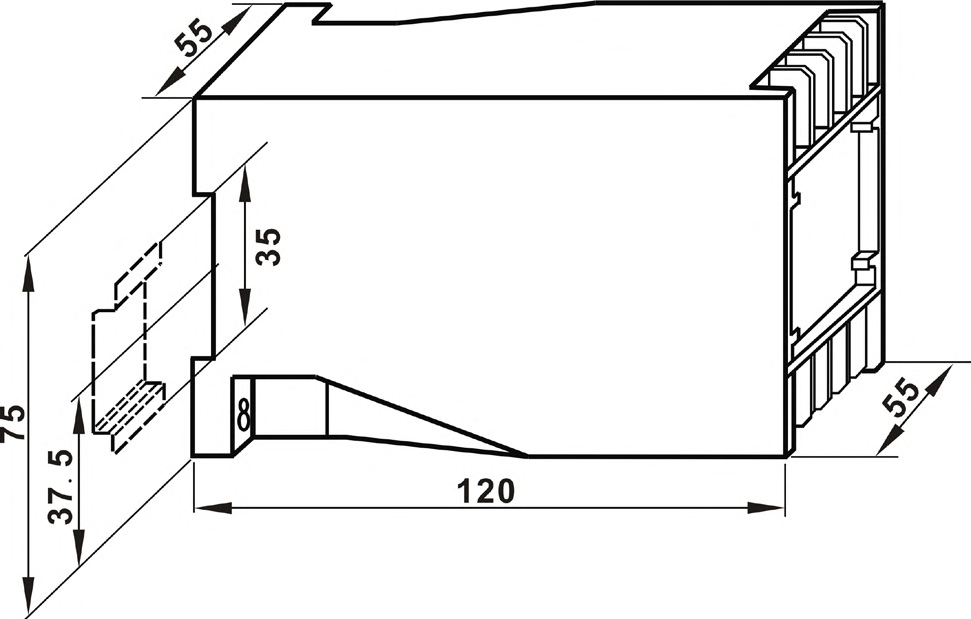

HYB-A1 adopts advanced average conversion technology with a measurement accuracy of up to 0.2 level, ensuring precise signal acquisition and transmission. Its core structure is based on ABS flame-retardant material shell, which has excellent fire resistance and durability. The product design complies with the rail installation standard (35mm DIN rail or cabinet fixed installation), with dimensions of 120mm (L) × 55mm (W) × 75mm (H), and is flexible and easy to install. Internally, it adopts a four port isolation design for input, output, power supply, and housing, with a withstand voltage strength of AC2kVrms/min and an insulation resistance greater than 100M Ω @ DC500V, effectively suppressing on-site interference and ensuring stable system operation. Strong adaptability to work environment, supporting storage temperature of -20~70 ℃ and operating conditions of 0~50 ℃/<80% humidity, and compatible with AC/DC 80~270V wide range power input.
Main Features
1. High precision measurement: accuracy level reaches 0.2%, response time ≤ 400ms, ensuring real-time and accurate data. 2. Strong and durable: The ABS flame-retardant material shell weighs about 300g, with a compact structure and resistance to impact and corrosion. 3. Easy installation: Supports 35mm standard guide rail installation or cabinet fixation, adapting to various on-site layout requirements. 4. Wide compatibility: Various input ranges, optional output current or voltage signals, wide power supply range (AC/DC 80~270V). 5. Safe and reliable: With a four port isolation design, it has strong overload capacity (up to twice the nominal value within 10 seconds) and built-in surge and short circuit protection. 6. Easy to calibrate: The front panel provides ZERO (zero point) and SPAN (full range) calibration potentiometers for quick on-site calibration (note: calibration needs to be performed by professionals).
Application Scenarios
1. Power monitoring system: used for current monitoring and data acquisition in power plants and substations. 2. Industrial automation: Motor current and load monitoring in fields such as petrochemicals, coal mining, and metallurgical manufacturing. 3. Railway electrification: current measurement and isolation protection of traction power supply system and signal power supply. 4. Energy efficiency management: Cooperate with energy meters, PLC or DCS systems to achieve current monitoring and energy efficiency analysis of electrical equipment. 5. Equipment protection: As a current signal isolation conversion unit, it is connected to relay protection, fault recording and other devices to enhance the system's anti-interference ability.
