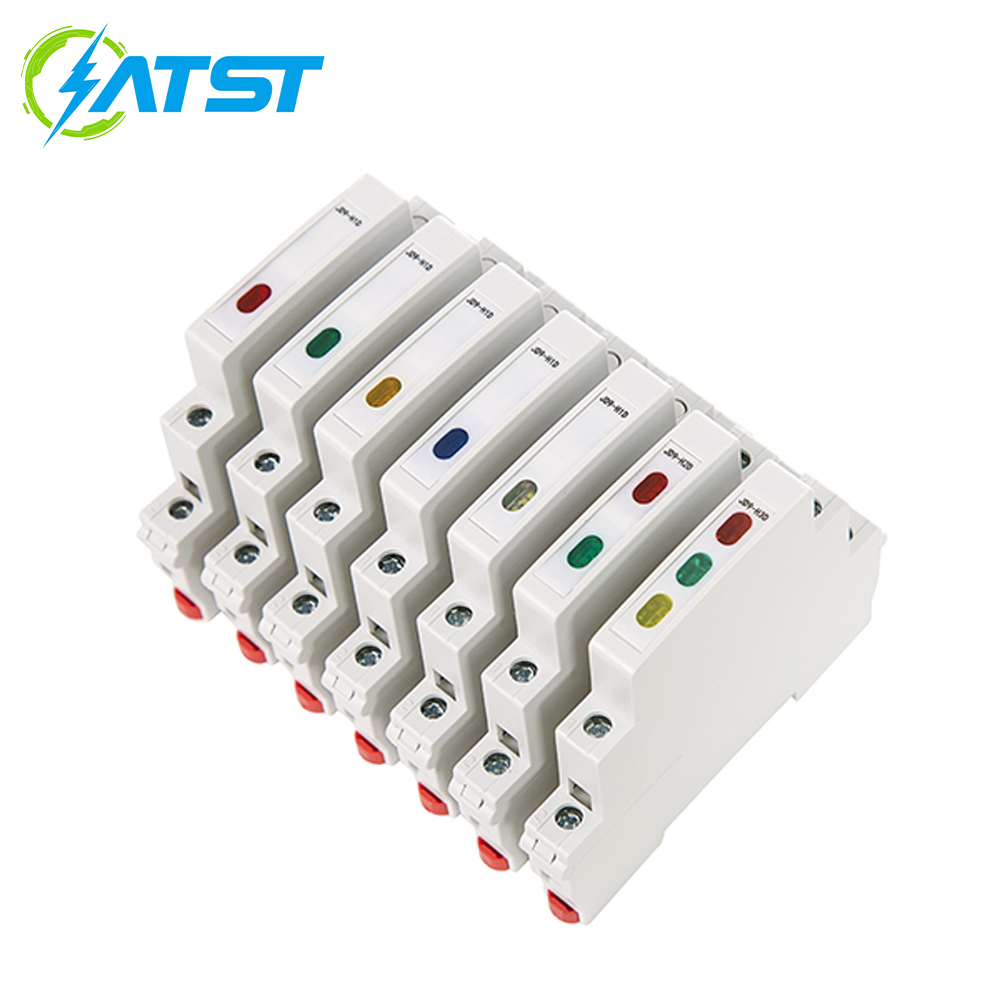

JD9-H1D/H2D/H3D Indicator Light

Name: JD9-H1D/H2D/H3D Indicator Light
Brand: MY SHOP

This LED indicator light delivers bright and reliable status indication for industrial applications. Designed for easy panel mounting, it is widely used in control panels, switchgear, and distribution boards.

With durable construction and long-life LED technology, this panel indicator light / signal lamp ensures low power consumption, high stability, and maintenance-free operation.

GET A QUOTE

Description

Scope of Application

The JD9 indicator light is suitable for use in circuit control systems operating on AC 50Hz/60Hz with a rated voltage of up to 230V, or DC with a voltage of up to 230V. It serves as an indicator for telecommunication, electrical, and other circuits, providing signals for status indication, pre-setting, fault alerts, and other signaling purposes.

Main Parameters and Technical Specifications

Technical Parameters	Parameter Value
Rated Working Voltage	6.3VAC/DC、12VAC/DC、24VAC/DC、110VAC/DC
Rated Working Current	≤20mA
Working Life	≥30000h
Connection Wire	≤6mm²
Tightening Torque	0.8N·m
Protection Grade	IP20

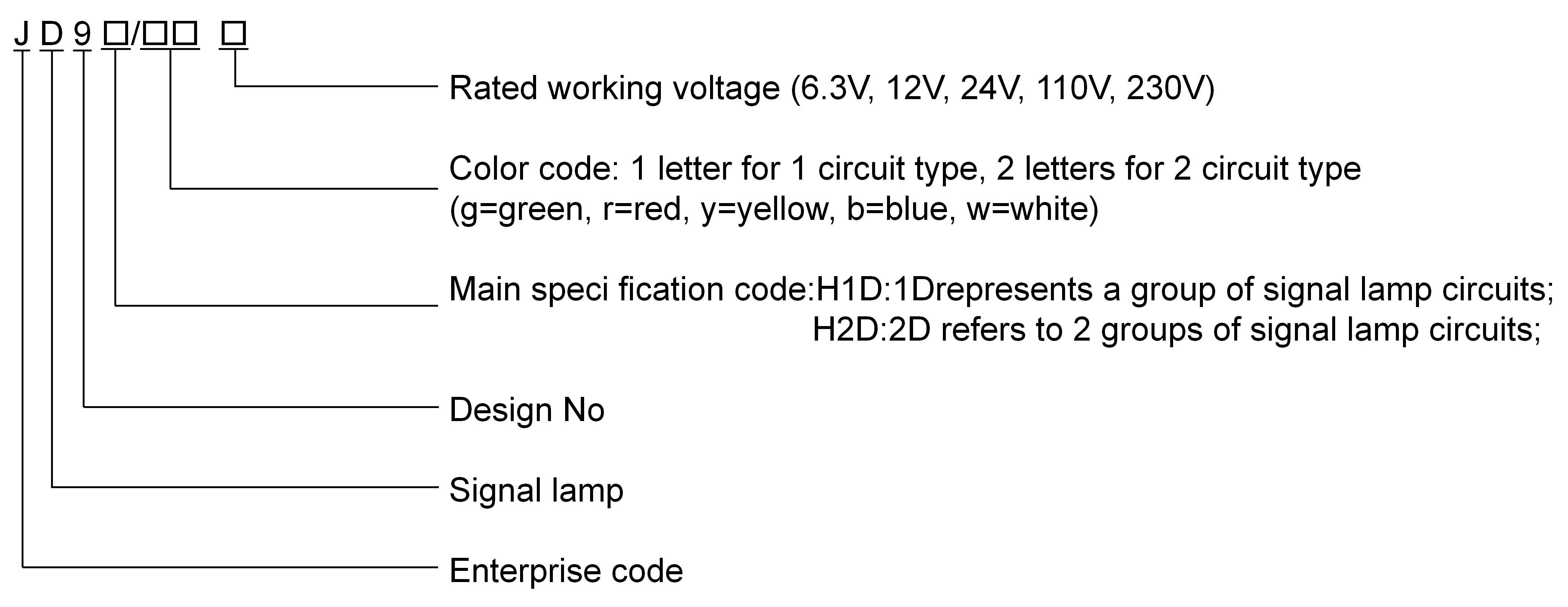

Model and Meaning

Other

Normal Operating and Installation Conditions
a. Ambient Temperature: -5°C to +40°C; the average value over a 24-hour period shall not exceed 35°C.
b. Altitude: ≤ 2000 m.
c. Installation Category: II, III.
d. Pollution Degree: 2.

Installation Method: Mounted on a TH35-7.5 type steel mounting rail; the inclination of the mounting surface relative to the vertical plane shall not exceed 5°.

Classification:
a. By Product Type: Light-Emitting Diode (LED) Type.
b. By Number of Indicator Circuits: 1. Single-circuit; 2. Dual-circuit.
c. By Color Combination: a. Green (G); b. Red (R); c. Yellow (Y); d. Blue (B); e. White (W).
