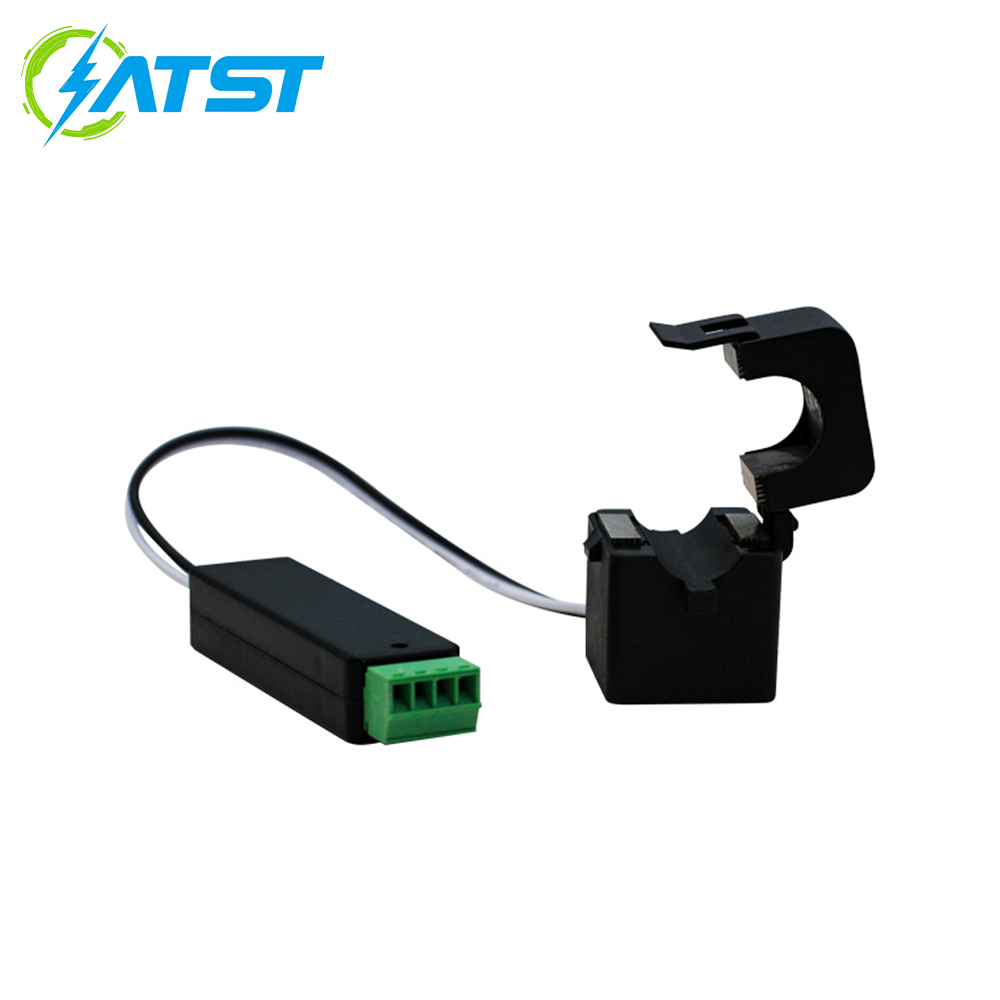

The KCT-L series true RMS current sensor is a high-precision open-loop current measurement device based on the Hall effect principle, integrating true RMS measurement, industrial grade electrical isolation, 4-20mA standard analog output, and split hinge structure. Specially designed for complex industrial environments and new energy applications, it can accurately measure AC, DC, and pulse currents, ensuring reliable monitoring and energy efficiency management of the system.

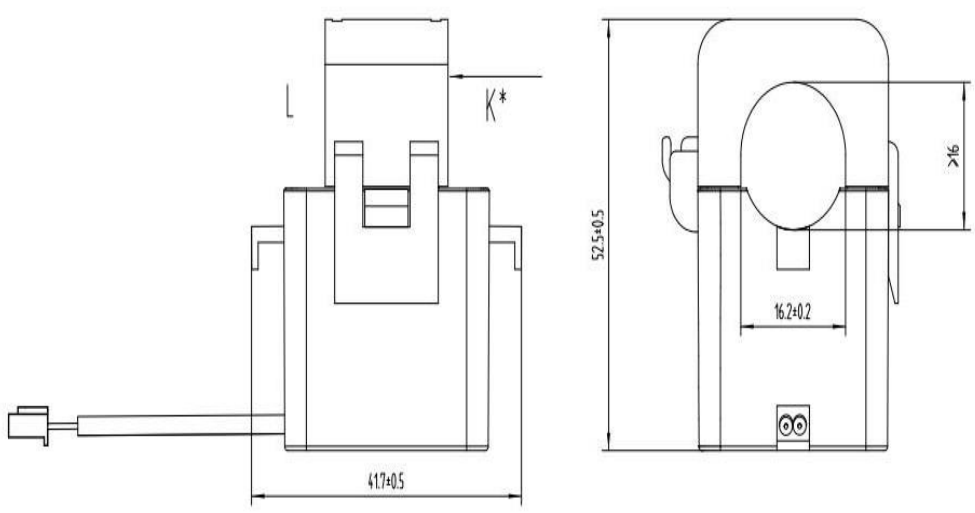

The KCT-L series is a detachable Hall effect current sensor that uses open-loop measurement principle to achieve electrical isolation between the primary and secondary circuits, with a maximum isolation voltage of 5kV. This series of sensors supports multiple rated current measurement ranges (50A to 600A) and 4-20mA analog output, with a power supply voltage of+12V or+24V and a power consumption of only 35mA, suitable for integration with various automation equipment and power monitoring systems. The product has a built-in integrator function (some models) that can calculate the accumulated charge of current over time, supporting energy statistics and predictive maintenance scenarios. Its split hinge design facilitates installation and replacement without cutting off the circuit, reducing maintenance costs and downtime.
Main Features
1. True RMS measurement By adopting the Hall effect open-loop measurement principle, accurate measurement of non sinusoidal and non-standard waveforms can be achieved, ensuring the output of true current values under nonlinear load conditions. 2. High precision and good linearity Provides linearity output up to ± 1% FS, zero current output voltage stable at 4 ± 0.1mA, and small drift of ± 0.005mA/° C within the operating temperature range (-40 ° C to+85 ° C), ensuring long-term reliable measurement. 3. Hall effect electrical isolation The 5kV isolation withstand voltage achieves safe isolation between the measurement circuit and the high voltage side, suitable for preventing signal interference and electrical shock in complex industrial environments. 4.4-20mA standard industrial output The current corresponds linearly with the output signal, conforms to industrial standard interfaces, and can be directly integrated with PLC, DCS, SCADA systems, and other control equipment. 5. Design of hinge interface The split type mechanical structure supports convenient cable loading and unloading, especially suitable for on-site system modification or compact installation scenarios with limited space, which helps simplify installation and reduce costs. 6. Rapid response and wideband design Response time ≤ 200ms, bandwidth up to 20-20000Hz, capable of capturing rapidly changing current signals, suitable for monitoring applications in frequency converters, motor drives, and power electronic devices.
Application Scenarios
1. Industrial Automation and Control Suitable for real-time monitoring of current in equipment such as motors, pumps, compressors, etc., combined with integrator function to achieve energy metering and predictive maintenance strategies. 2. Inverters and frequency conversion equipment Can be used for current and power measurement of photovoltaic inverters, UPS, and variable frequency drive devices, achieving overload protection and operational optimization. 3. New energy and power grid monitoring Widely used in energy storage management and grid connection devices for photovoltaic power plants and wind power generation systems, ensuring the safety and efficiency of charging and discharging processes. 4. Battery management and electric vehicle system Suitable for monitoring the charging and discharging of battery packs in electric vehicles or energy storage stations, the integrator function can be used to accumulate electrical energy and optimize battery life management. 5. Building energy efficiency and data centers It can be integrated into building intelligent power distribution systems, air conditioning units, rack power distribution units, etc., supporting refined electricity analysis and energy consumption optimization strategies.
