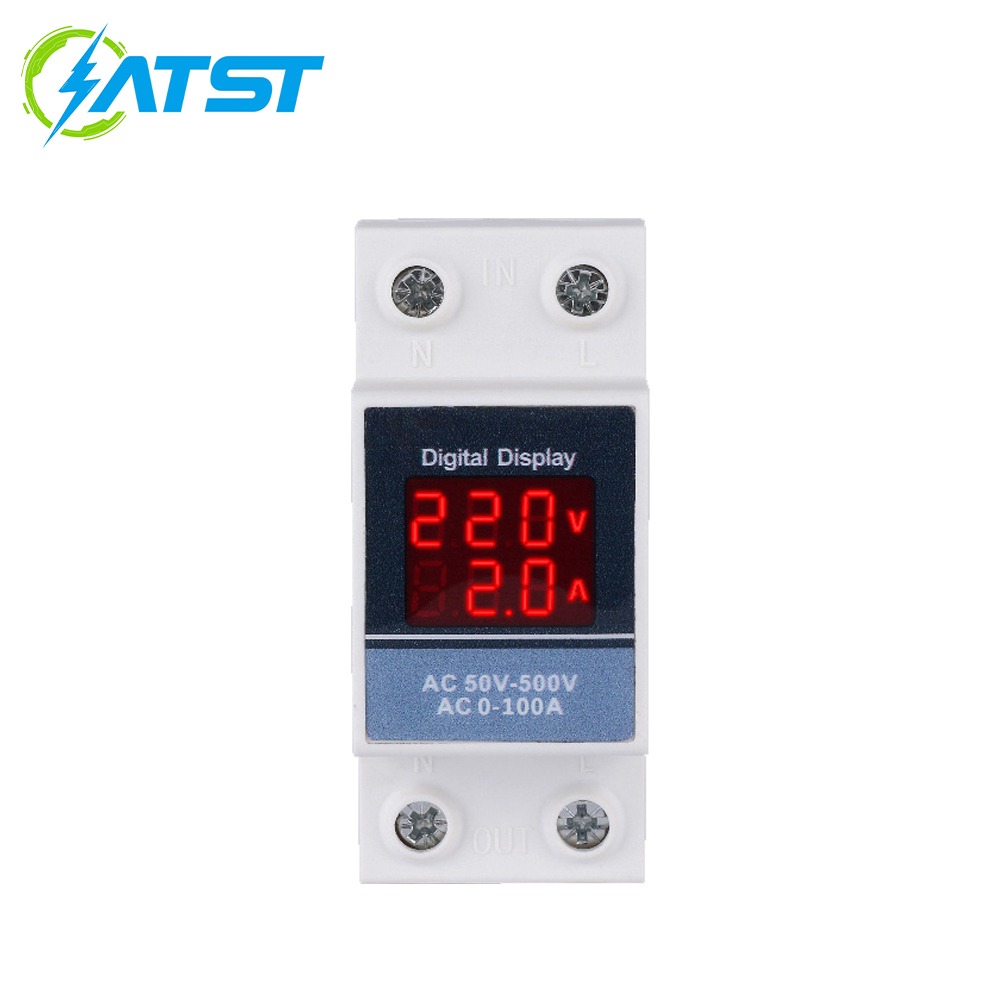

Name: KDM1-63
Brand: MY SHOP

Description

Product Overview

The rated working voltage of KDM1-63 is AC 380V/220V, and the rated current covers the full range of specifications from 10A to 63A. It adopts a transparent shell design, which allows for intuitive observation of the internal contact status, facilitating daily maintenance and troubleshooting. The product is equipped with high-precision current and voltage monitoring modules, which support real-time display of circuit current and voltage parameters. It also has overload long delay and short circuit instantaneous protection functions, and the protection characteristics meet the requirements of GB14048.2 standard.
As a new generation of intelligent distribution components, KDM1-63 integrates RS485 communication interface, supports Modbus RTU communication protocol, and can achieve interconnection and intercommunication with upper computer devices such as PLC and SCADA systems. It supports remote data reading, protection parameter setting, and fault alarm. Made with industrial grade electronic components, it has wide temperature operating characteristics (-40 ℃~+70 ℃), an average fault free working time of ≥ 100000 hours, a protection level of IP20, and is suitable for complex distribution environment requirements.

Main Features

1. Dual function integration: Integrating transparent circuit breakers and intelligent digital display functions, it provides overload and short circuit protection, as well as real-time monitoring of circuit electrical parameters. A set of equipment solves the dual needs of distribution safety and energy management.
2. High reliability design: manufactured according to a service life standard of more than ten years, providing a five-year free warranty service, industrial grade component selection and rigorous environmental testing to ensure long-term stable operation.
3. Visual maintenance: The transparent shell design allows for direct observation of the internal contact status, without the need for disassembly to determine equipment operation, greatly improving maintenance efficiency.
4. Intelligent communication capability: Equipped with RS485 communication interface, supporting Modbus RTU protocol, realizing remote monitoring and data transmission, and adapting to the networking requirements of intelligent distribution systems.
5. Wide temperature environment adaptation: -40 ℃~+70 ℃ wide working temperature range, meeting the stable operation requirements in complex environments such as high altitude, low-temperature workshops, and high-temperature machine rooms.
6. Convenient installation and deployment: Standard DIN35mm rail type installation, no additional fixed brackets required, can be quickly completed by a single person, saving cabinet space and construction time.

Application scenarios

1. Industrial workshop power distribution: provides short-circuit overload protection and current monitoring for production line motors and assembly line equipment, real-time monitoring of equipment operation status, and prevention of production stagnation caused by circuit failures.
2. Commercial building power distribution: applied to lighting, air conditioning, elevators and other circuits in shopping malls and office buildings, to achieve power distribution safety protection and sub metering of electrical energy, and optimize energy management solutions.
3. Data center computer room: provides precise current monitoring and fast short-circuit protection for key equipment such as server cabinets and UPS power supplies, ensuring the continuity and safety of data center power supply.
4. New energy system: In distributed photovoltaic and energy storage systems, it serves as a protection and monitoring component for DC/AC circuits, collecting real-time circuit parameters to ensure stable system operation.
5. Residential power distribution for civilian use: used for the main circuit or high-power electrical circuit of household distribution boxes, providing overload and short circuit protection while displaying real-time electrical current, improving home electrical safety.
6. Temporary engineering power distribution: In temporary power distribution scenarios such as construction sites and outdoor construction, quickly build a safe and reliable power distribution system that combines protection and monitoring functions to reduce construction electricity risks.

Technical Parameter

Supply Voltage / Frequency Range	AC 50V~500V/50~60Hz
Discrepancy Range	± 2%
Operating Voltage Range	AC 50-500V
Rated Insulation Voltage	660V
Current Display Range	AC 1~100A	AC 1~63A
Degree of Protection	IP20
Environmental Protection Rating	3
Altitude	≤2000m
Sample rate	About 1 time/s
Ambient Temperature	- 50~55℃
Humidity	50% and 40°C Condensation free
Storage Temperature	- 30℃ ~70℃

Product Dimensions
