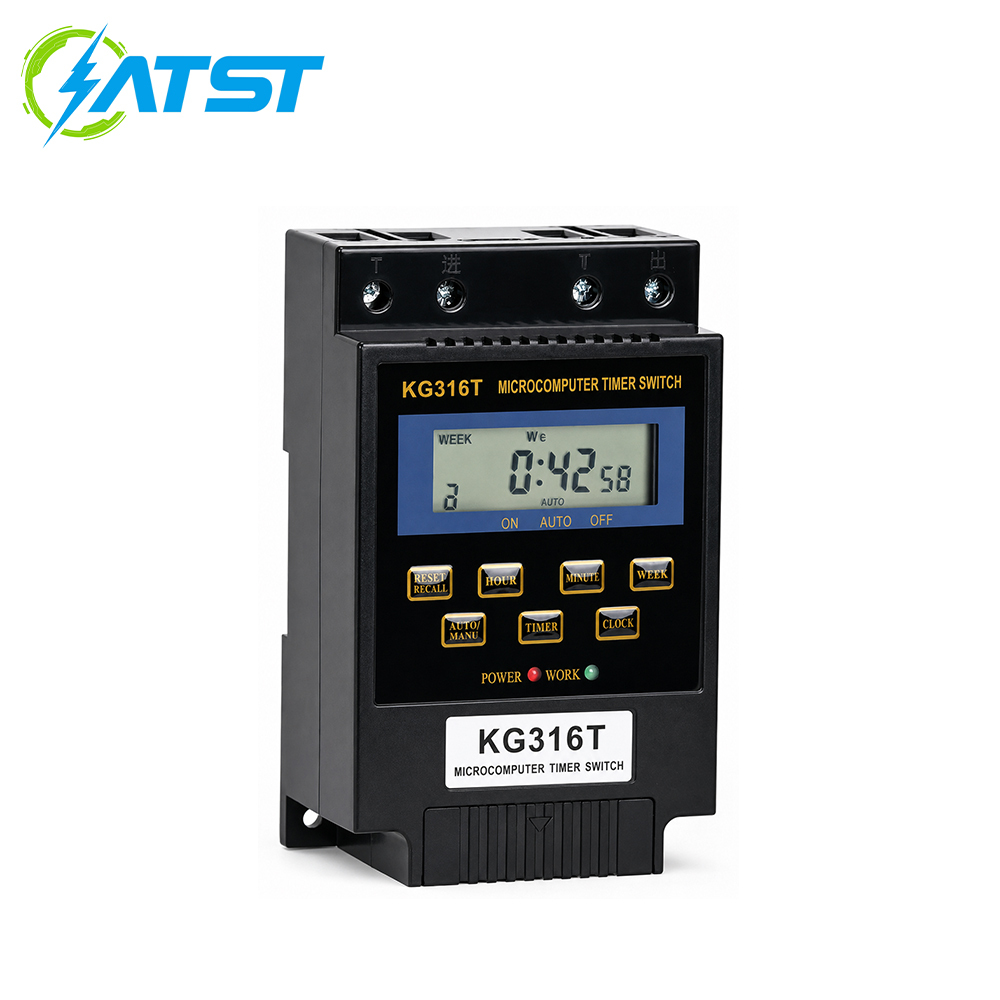

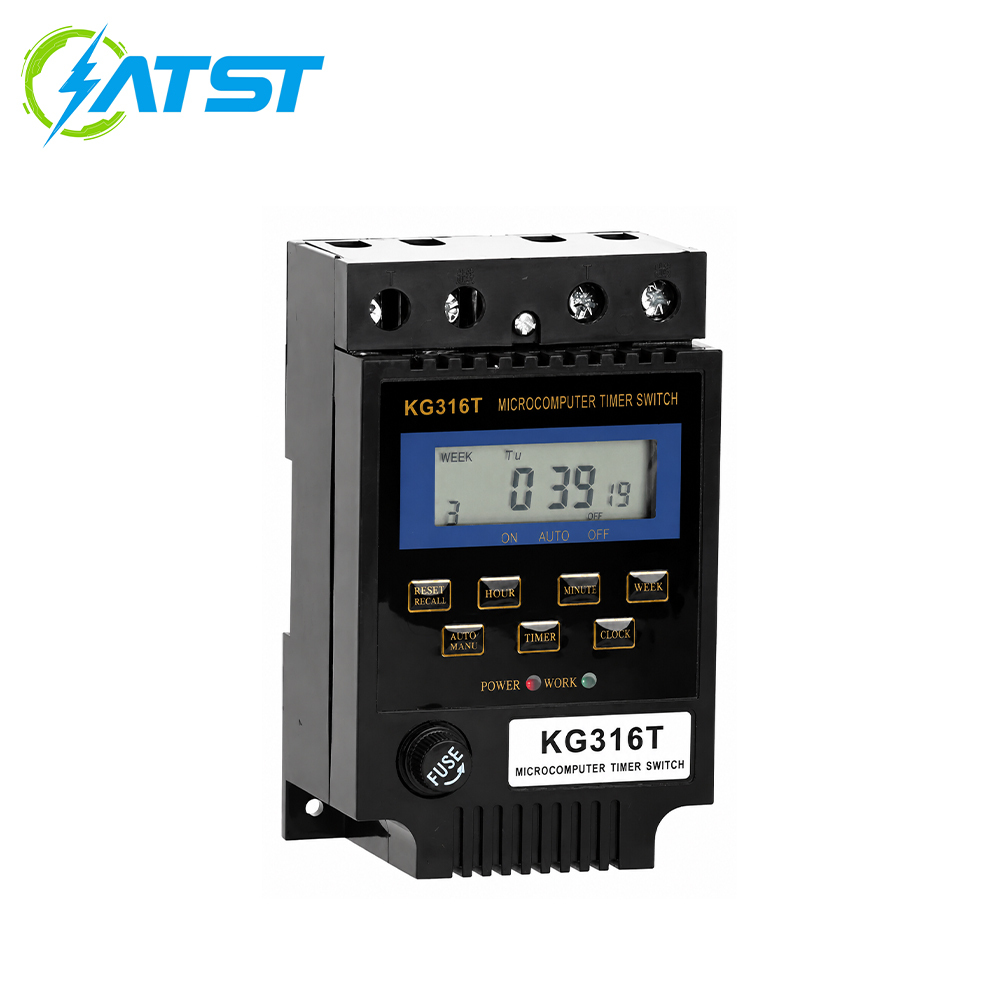

KG316T Microcomputer Time Control Switch

Product Overview

Based on ATST Electric’s core concept of “Precise Control, Safe and Reliable”, KG316T Microcomputer Time Control Switch is an advanced digital timing device designed for automatic control of electrical loads in distribution systems. It enables users to set flexible daily or weekly operation schedules, ensuring connected equipment operates only during required time periods.

Compared with standard single-channel time switches, KG316T provides enhanced programming flexibility with dual-channel control capability, allowing independent or combined operation of different loads. This makes it suitable for more complex electrical control scenarios in commercial, industrial and infrastructure applications.

With LCD display, keypad programming, DIN rail installation and stable output contacts, KG316T offers reliable performance in control cabinets, distribution boards and automation systems. Its power reserve function ensures program retention during power interruptions, improving system reliability in real-world applications.

Main Features

1. Microcomputer control system: Digital timing technology ensures precise automatic switching according to preset programs.

2. Dual-channel independent control: Supports two programmable channels for separate or combined load management, improving system flexibility.

3. 24-hour and 7-day timing modes: Enables both daily cycle and weekly scheduling for different operational requirements.

4. 28 groups ON/OFF programs: Multiple timing combinations allow complex scheduling for different devices and time periods.

5. LCD display and keypad operation: Clear interface simplifies program setting, checking and modification.

6. Multiple rated current options: Available in 16A, 25A and 30A versions to support various electrical loads.

7. Manual override function: Allows temporary manual switching without affecting preset programs.

8. Power reserve function: Maintains time and program memory during short-term power loss.

9. DIN rail installation: Compact modular structure suitable for control cabinets and distribution panels.

Application Scenarios

1. Lighting automation systems: Used for street lighting, billboard lighting, building lighting, factory lighting and public area lighting control.

2. Pump and water systems: Suitable for irrigation systems, drainage pumps, water supply pumps and circulation systems requiring scheduled operation.

3. Ventilation and HVAC control: Applied in exhaust systems, cooling fans, ventilation equipment and air handling systems.

4. Industrial automation systems: Suitable for production equipment, auxiliary machines and control cabinet applications requiring programmable timing.

5. Commercial building management: Used in hotels, shopping malls, offices and public facilities to optimize energy usage and reduce manual operation.

6. Agricultural systems: Applied in greenhouse control, breeding systems and agricultural irrigation automation.

7. Infrastructure projects: Suitable for municipal lighting, tunnel lighting, parking systems and other large-scale timed electrical control systems.

Technical Date

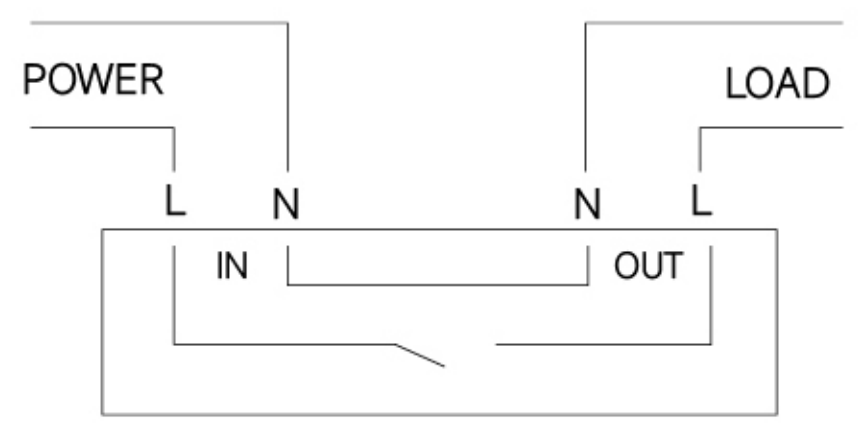

Wiring Diagram

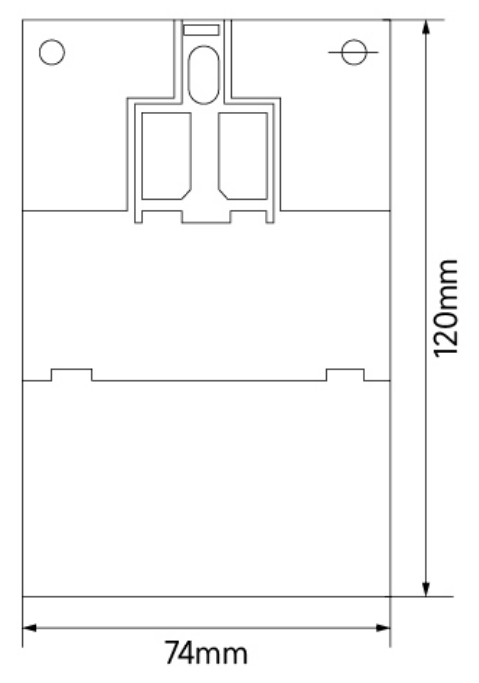

Dimensions
