LVB-110W2 Oil-immersed Inverted type current transformer

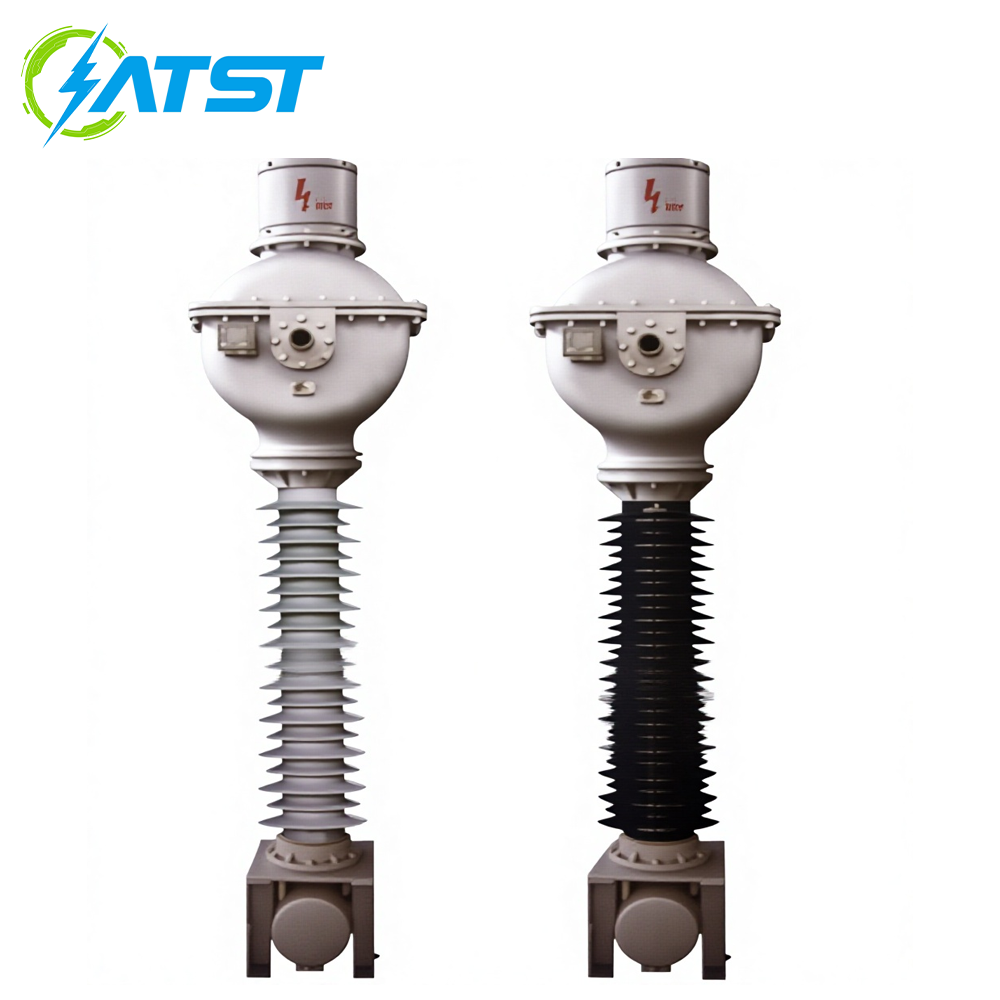

Name: LVB-110W2 Oil-immersed Inverted type current transformer
Brand: MY SHOP

The Model LVB-110W2 inverted current transformer is suitable for use in 50 Hz, 110 kV power systems for current and energy measurement, as well as for relay protection applications.
This product primarily consists of an oil conservator, a base with a high-strength porcelain bushing (or silicone rubber bushing), a corrugated expansion unit, a primary winding, and a secondary winding.

GET A QUOTE

Description

Description
LVB-110W2 Oil-immersed Inverted Type Current Transformer is designed for 110kV high-voltage power systems. It is used to accurately transform primary current into standardized secondary current for metering, protection, and control applications. The inverted structure combined with oil-immersed insulation ensures enhanced reliability, safety, and long service life in outdoor environments.

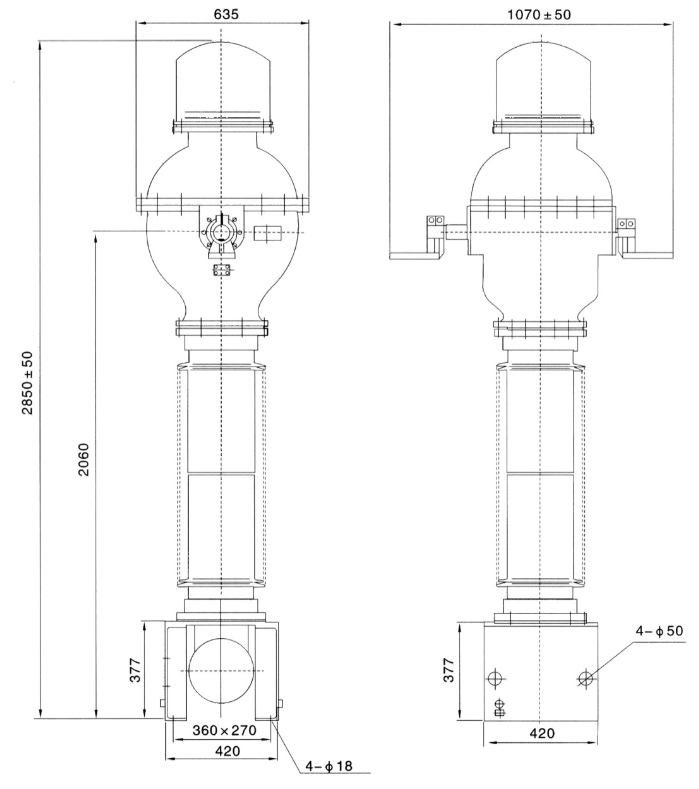

Structural Features
The transformer adopts an inverted structure with the primary conductor located at the top and the secondary windings housed in the lower grounded tank, effectively reducing insulation stress. Combined with an oil-immersed and fully sealed design, it provides excellent dielectric performance, efficient heat dissipation, and high operational stability, ensuring reliable performance under harsh environmental conditions.

Applications
1.110kV high-voltage substations
2.Power transmission and distribution systems
3.Energy metering systems
4.Relay protection systems

Technical Data

Rated voltage of system(kv)	Rated primary current(A)	Rated secondary current(A)	Class combination	Measure the level rated secondary load and instrument security factor(Fs)	Measure the level rated secondary load and the accuracy limit factor(ALF)	Short-time thermal current(kA/3s)	Rated dynamic current(kA)	Creepage distance(mm)	Rated insulation level(kA)	Partial discharge level (pC)	oil weight Total weight(kg)

110	2x300~2x1500	5(1)	5P/5P/5P/0.2S 5P/5P/5P/5P/0.5/0.2	30~50VA FS≤5 (or)FS≤10	30~60FVA 5P15~5P30	50	125	≥3150	126/200/480	≤5	60/340
