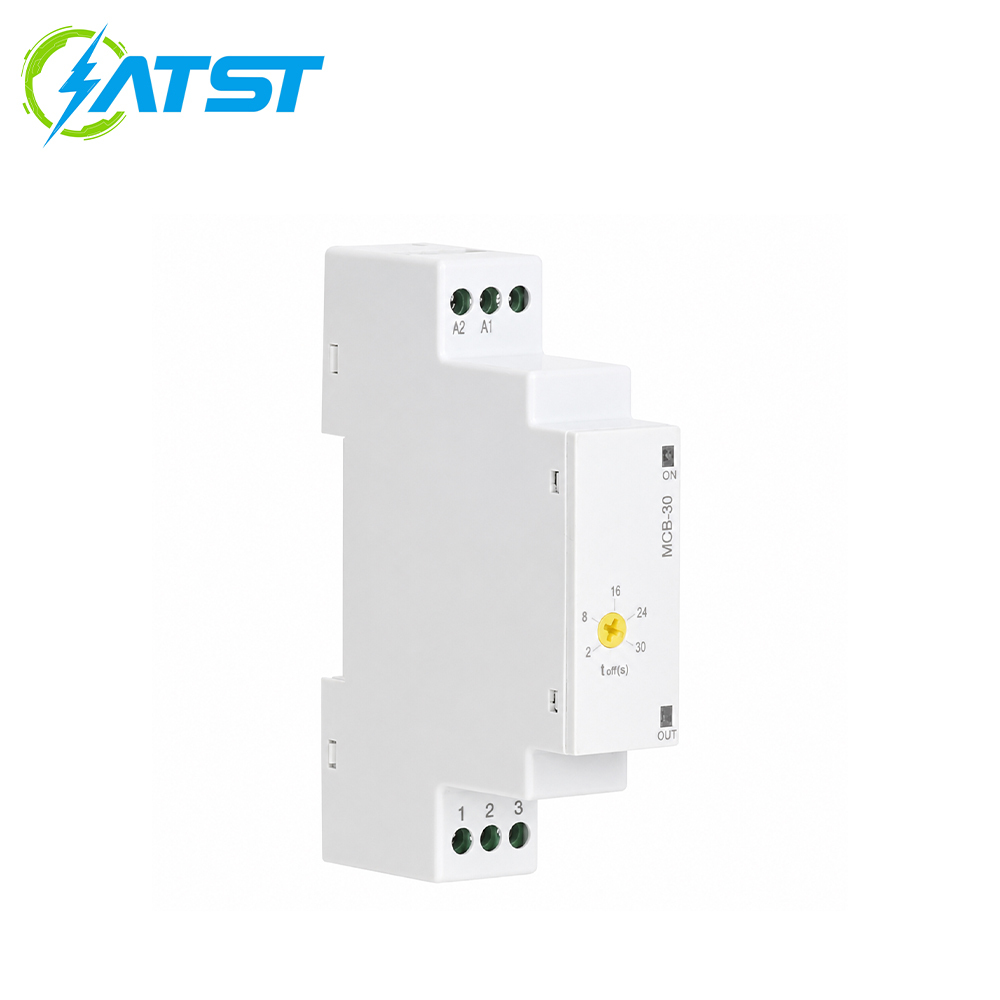

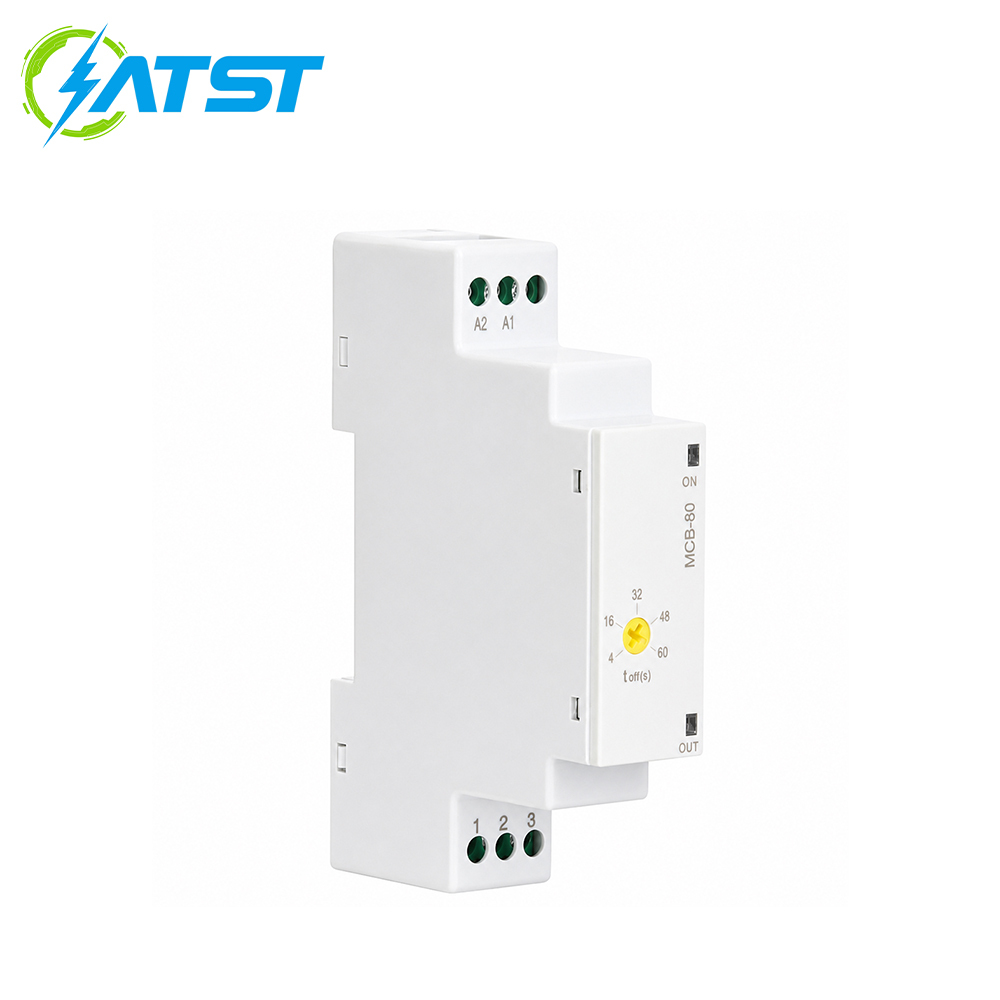

Product Overview
Based on ATST Electric’s core concept of “Precise Control, Safe and Reliable”, MCB-30/MCB-60 Time Relays provide a practical solution for applications requiring accurate time-delay control and automatic switching functions.
The relay controls electrical circuits according to preset time parameters, allowing equipment to achieve delayed start, delayed stop and sequential operation. By adding time-based control functions to traditional electrical circuits, MCB-30/MCB-60 helps improve system automation, reduce manual operation and enhance equipment coordination.
With reliable relay output, compact structure and convenient installation, MCB series time relays can be easily integrated into control cabinets, electrical panels and industrial automation systems. They are suitable for applications requiring stable and repeatable timing control.
Main Features
1. Accurate time-delay control: Provides stable timing operation for automatic switching and equipment sequence control.
2. Reliable relay switching: Ensures consistent switching performance for industrial and commercial electrical systems.
3. Flexible control applications: Suitable for delayed start, delayed stop and automatic circuit control requirements.
4. Compact structure: Space-saving design allows convenient installation inside electrical cabinets and control panels.
5. Easy wiring and commissioning: Clear terminal design helps electricians complete installation and maintenance efficiently.
6. Stable long-term operation: Designed for continuous use in automation and electrical control environments.
7. Improved system automation: Reduces manual operation and helps equipment work according to preset timing requirements.
8. Wide application compatibility: Suitable for motors, pumps, lighting systems and various electrical loads.
Application Scenarios
1. Industrial automation equipment: Used for machine sequencing, production line control and automatic operation processes.
2. Motor control systems: Suitable for delayed start and stop control of motors, pumps, fans and other electrical equipment.
3. Electrical control cabinets: Installed in automation panels and distribution cabinets for time-based control functions.
4. HVAC systems: Applied in ventilation equipment, air conditioning systems and cooling equipment requiring delayed operation.
5. Lighting control systems: Used for automatic lighting switching and energy-saving control applications.
6. Machinery equipment: Suitable for packaging machines, processing equipment and auxiliary industrial systems.
7. Building automation systems: Applied in access control, security equipment and facility management systems requiring timing control.
Technical Date
| Rated voltage (Un) | 24-240VAC/DC |
| Rated frequency | 50/60Hz |
| Output contact | 1 C/O, 8A, 2000VA, Cosφ=1 |
| Delay time(toff) | 2-30 sec (MCB-30), 4-60 sec (MCB-60) |
| Ambiant temperature | -5~+50°C |

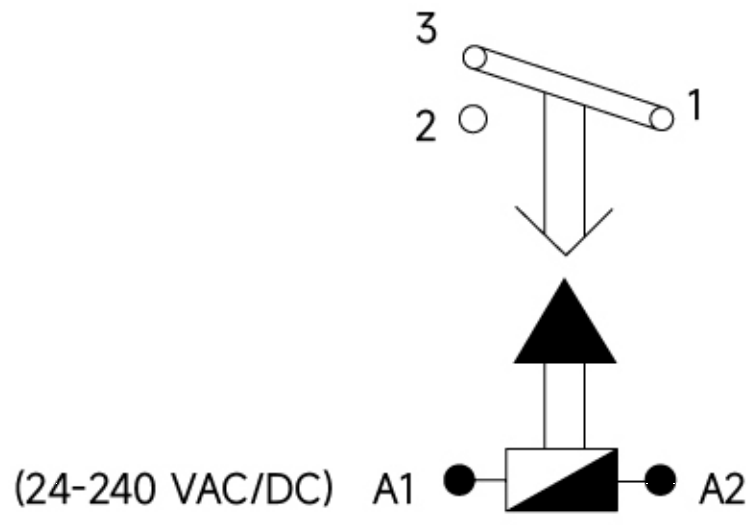

Wiring Diagram

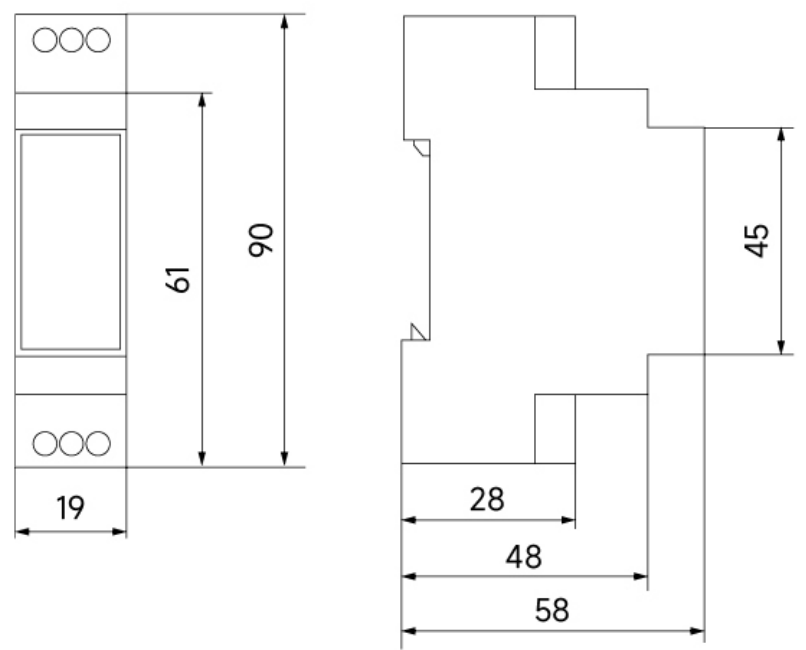

Dimensions
