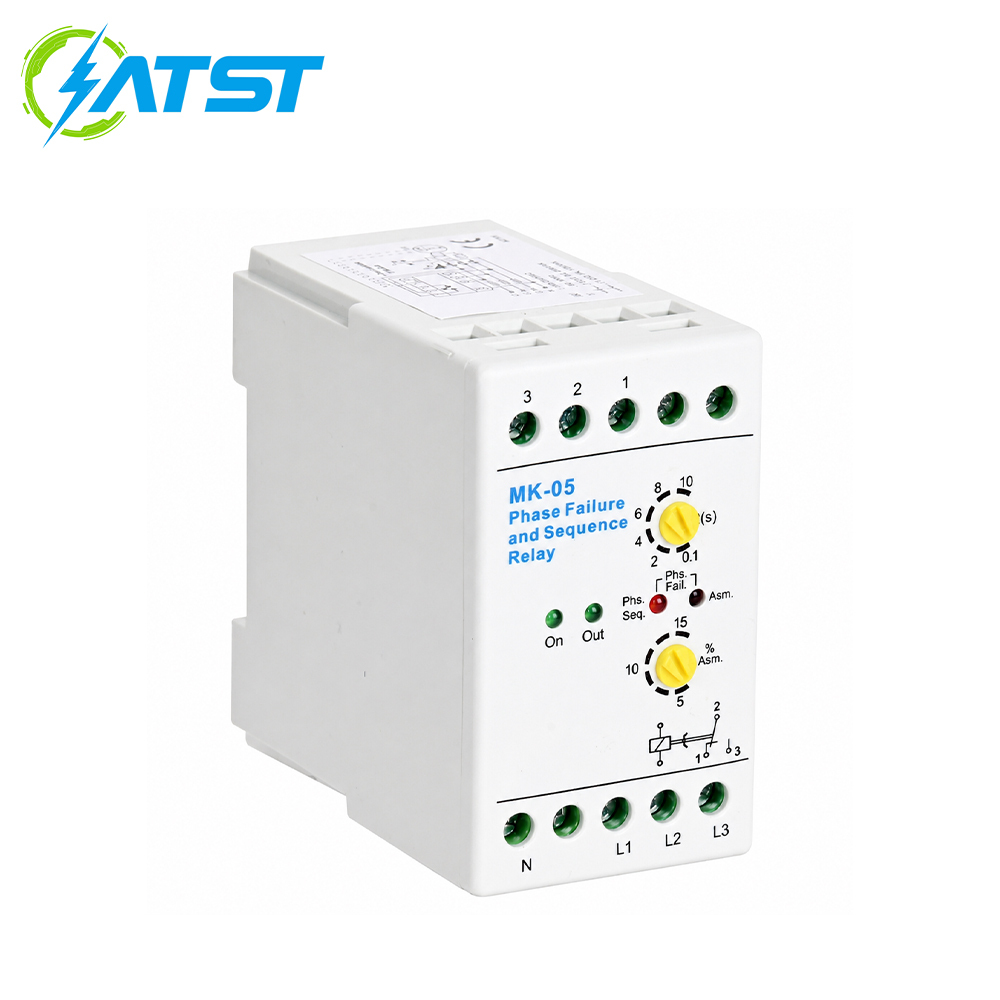

Name: MK-05 PHASE FAILURE DEVICES
Brand: MY SHOP

Description

Product Overview

Based on ATST Electric’s core concept of “Precise Control, Safe and Reliable”, MK-05 Phase Failure Device provides an effective protection solution for three-phase electrical equipment.
The device continuously monitors the three-phase power supply status and detects phase loss conditions that may affect equipment operation. When a phase failure occurs, MK-05 provides a protection signal to control the connected equipment, helping prevent motor overheating, abnormal operation and potential damage caused by unstable power conditions.
Three-phase motors and industrial equipment require stable power supply to maintain normal operation. MK-05 helps improve system reliability by providing automatic phase failure protection without requiring complex control systems.
With compact design, convenient installation and reliable protection performance, MK-05 can be integrated into motor control panels, distribution cabinets and industrial automation systems for various three-phase applications.

Main Features

1. Phase failure detection: Monitors three-phase power conditions and identifies phase loss faults to protect connected equipment.
2. Reliable equipment protection: Helps prevent motor damage, overheating and abnormal operation caused by missing phase conditions.
3. Continuous power monitoring: Provides real-time supervision of three-phase electrical status during equipment operation.
4. Automatic protection response: Outputs a control signal when phase failure occurs to improve system safety.
5. Compact modular structure: Space-saving design allows easy installation in electrical cabinets and control panels.
6. Simple wiring and commissioning: Clear terminal design makes installation and maintenance more convenient for electricians.
7. Stable long-term operation: Designed for continuous operation in industrial and commercial electrical environments.
8. Wide application compatibility: Suitable for motors, pumps, compressors and other three-phase electrical equipment.

Application Scenarios

1. Motor protection systems: Used for three-phase motors to prevent damage caused by phase loss and unstable power supply.
2. Pump control systems: Suitable for water pumps, circulation pumps, drainage pumps and industrial pumping equipment.
3. Compressor systems: Applied in air compressors and refrigeration equipment to improve motor operation safety.
4. Industrial automation equipment: Used in production lines, machine tools and automated machinery requiring reliable three-phase protection.
5. HVAC systems: Suitable for fans, cooling equipment and air conditioning systems equipped with three-phase motors.
6. Electrical control cabinets: Installed in motor control centers, distribution panels and automation cabinets for equipment protection.
7. Building and infrastructure equipment: Applied in elevators, ventilation systems and other three-phase electrical facilities requiring reliable power protection.

Technical Date

Operating range(△ U)	220VAC, 3 phase + neutral: 4 wires star connection 120VAC
Rated frequency(f)	50/60Hz
Output contacts	1 C/O with 8A, 2000VA(For resistive load)
Tripping time	0.1-10 sec(adjustable)
Ambiant temperature	-5~+50°C

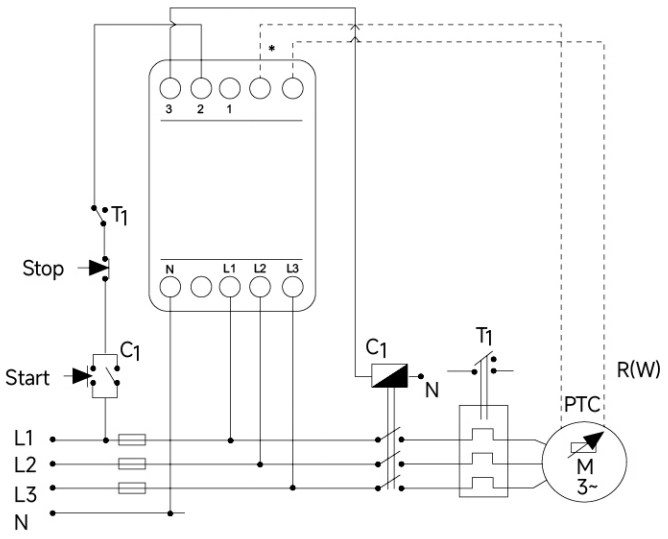

Wiring Diagram

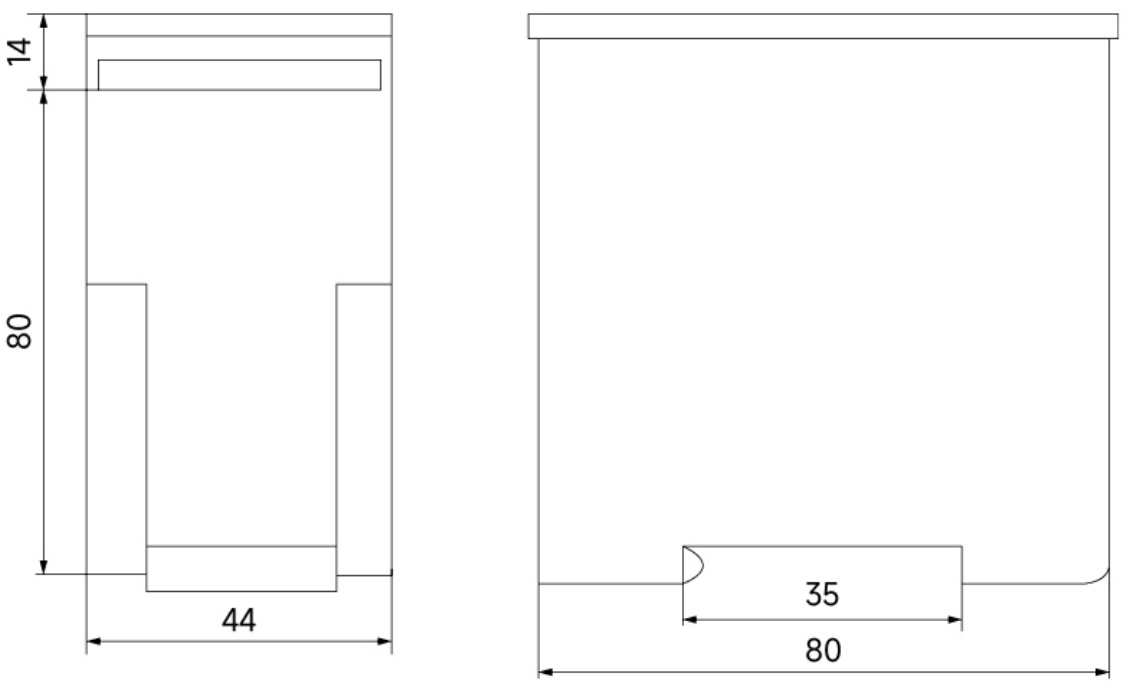

Dimensions
