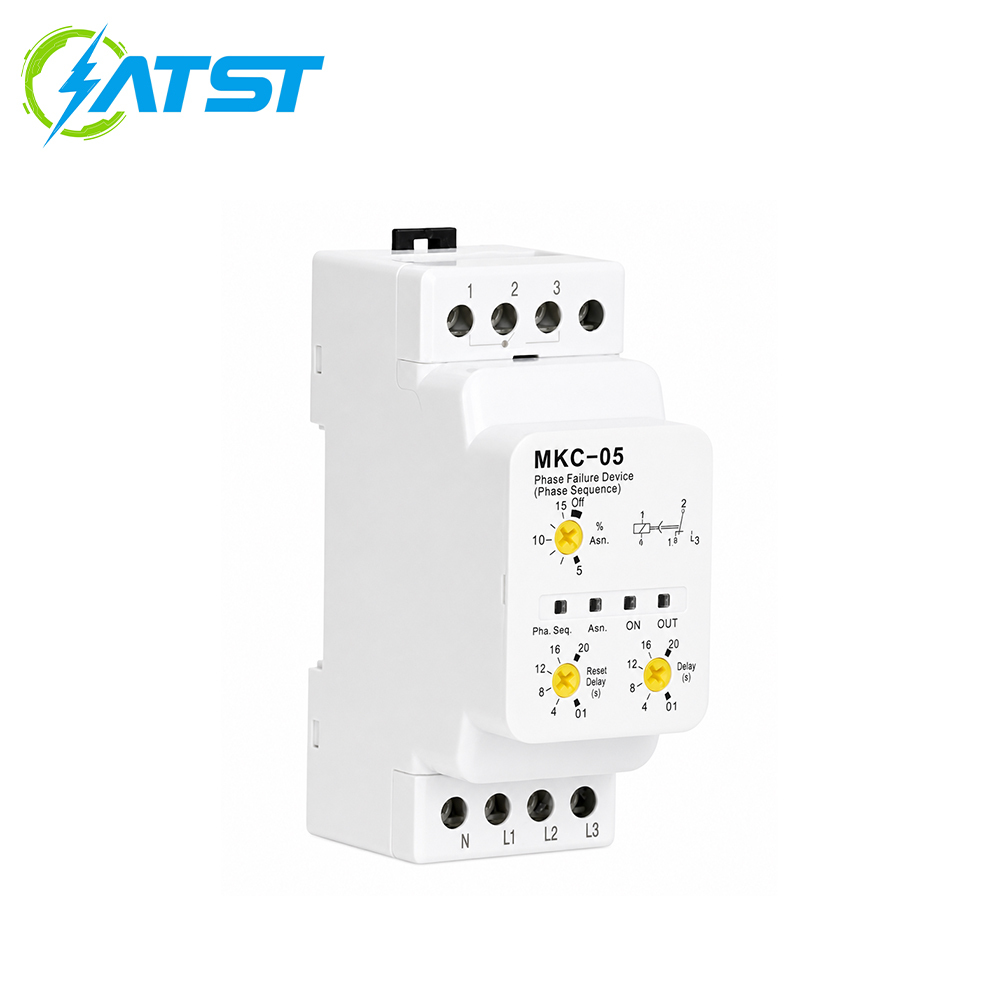

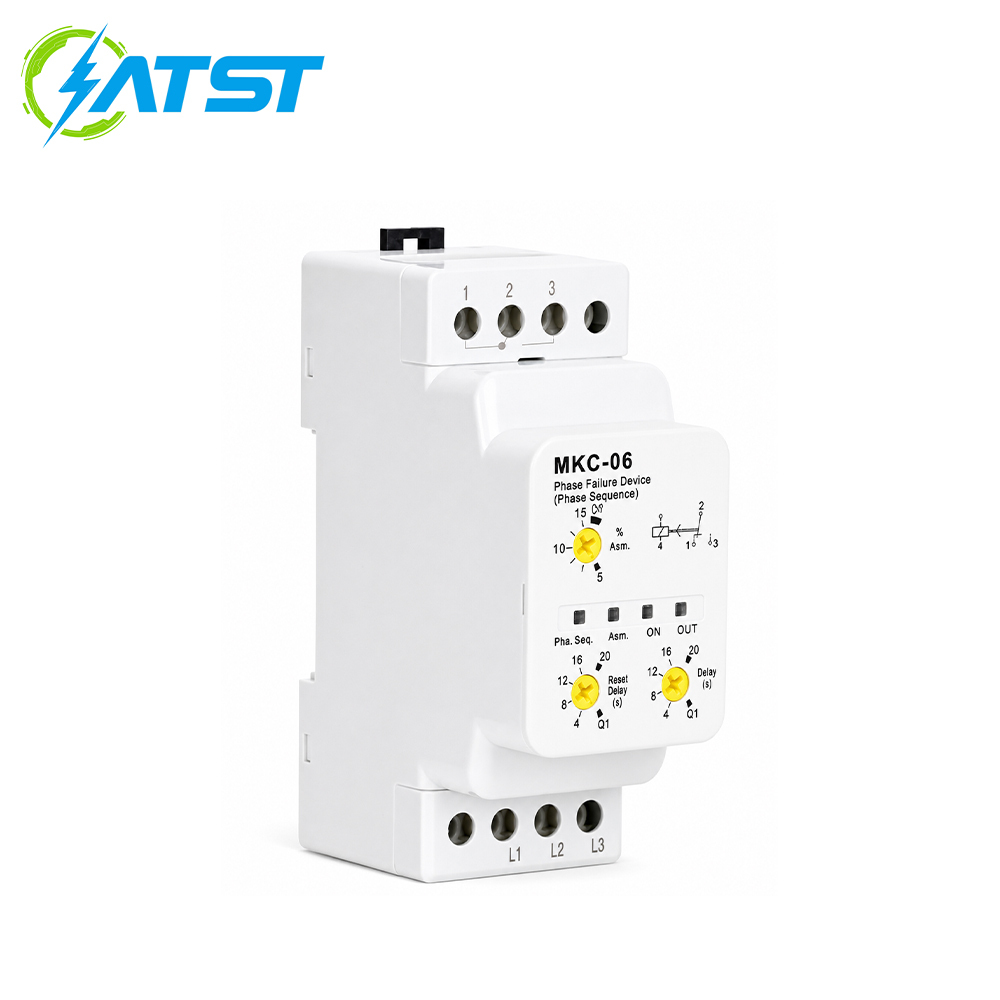

Product Overview
Based on ATST Electric’s core concept of “Precise Control, Safe and Reliable”, MKC-05/MKC-06 Phase Failure Devices are developed to provide reliable protection for three-phase electrical equipment.
The devices continuously monitor the condition of the three-phase power supply and detect abnormal situations such as phase loss. When a phase failure occurs, the protection device provides a control signal to disconnect or stop the connected equipment, helping prevent motor overheating, abnormal operation and potential equipment damage.
MKC-05/MKC-06 are designed for applications where stable three-phase power is essential. With compact structure and convenient installation, they can be easily integrated into electrical cabinets, motor control panels and automation systems, providing an effective protection solution for industrial equipment.
Main Features
1. Phase failure detection: Monitors three-phase power status and quickly identifies missing phase conditions.
2. Reliable equipment protection: Helps prevent motor damage, overheating and abnormal operation caused by phase loss.
3. Continuous power monitoring: Provides real-time supervision of three-phase electrical conditions during equipment operation.
4. Fast protection response: Sends a control signal when a phase fault occurs to improve system safety.
5. Compact modular design: Space-saving structure allows easy installation in control panels and electrical cabinets.
6. Simple wiring and maintenance: Clear terminal design makes installation and troubleshooting more convenient.
7. Stable long-term operation: Designed for continuous use in industrial and commercial electrical environments.
8. Wide application compatibility: Suitable for motors, pumps, compressors and various three-phase electrical equipment.
Application Scenarios
1. Motor protection systems: Used for three-phase motors to prevent damage caused by phase loss and unstable power supply.
2. Pump control systems: Suitable for water pumps, circulation pumps, drainage pumps and industrial pumping equipment.
3. Compressor equipment: Applied in air compressors and refrigeration systems to improve motor operation safety.
4. Industrial automation equipment: Used in production lines, machine tools and automated machinery requiring reliable power monitoring.
5. HVAC systems: Suitable for fans, cooling equipment and air conditioning systems with three-phase motors.
6. Electrical control cabinets: Installed in motor control centers, distribution panels and automation cabinets for equipment protection.
7. Building and infrastructure facilities: Applied in elevators, ventilation systems and other three-phase electrical equipment requiring reliable protection.
Technical Date
| Supply voltage (Un) | 230VAC(MKC-05), 400VAC(MKC-06) |
| Power consumption | 30VA/2W (50Hz.) |
| Supply frequency | 48~63Hz |
| Operating Temperature | -20°C~+55°C |
| Storage Temperature | -40°C~+70°C |
| Output Type | 1 Change-over(CO) Contact, 8A, 250V, 2000VA(Cos
φ=1) |
| Asymmetry Adjustment Range(asm. %) | 5%...15% (With/Without Neutral) Can bedisabled |
| Hysteresis | 30% of the adjusted asymmetry value |
| Delay-Off(Delay) | 0.1~20sec |
| Delay-On(Reset Delay) | 0.1~20sec |
| Voltage Adjustment Accuracy | ±3% |
| Repetition Accuracy(Voltage) | ±0.5% |
| Accuracy of the Set Times | -5~+55°C |
| Accuracy of the Set Times | ±5%+100msec |
| Repetition Accuracy(Time) | ±3% |

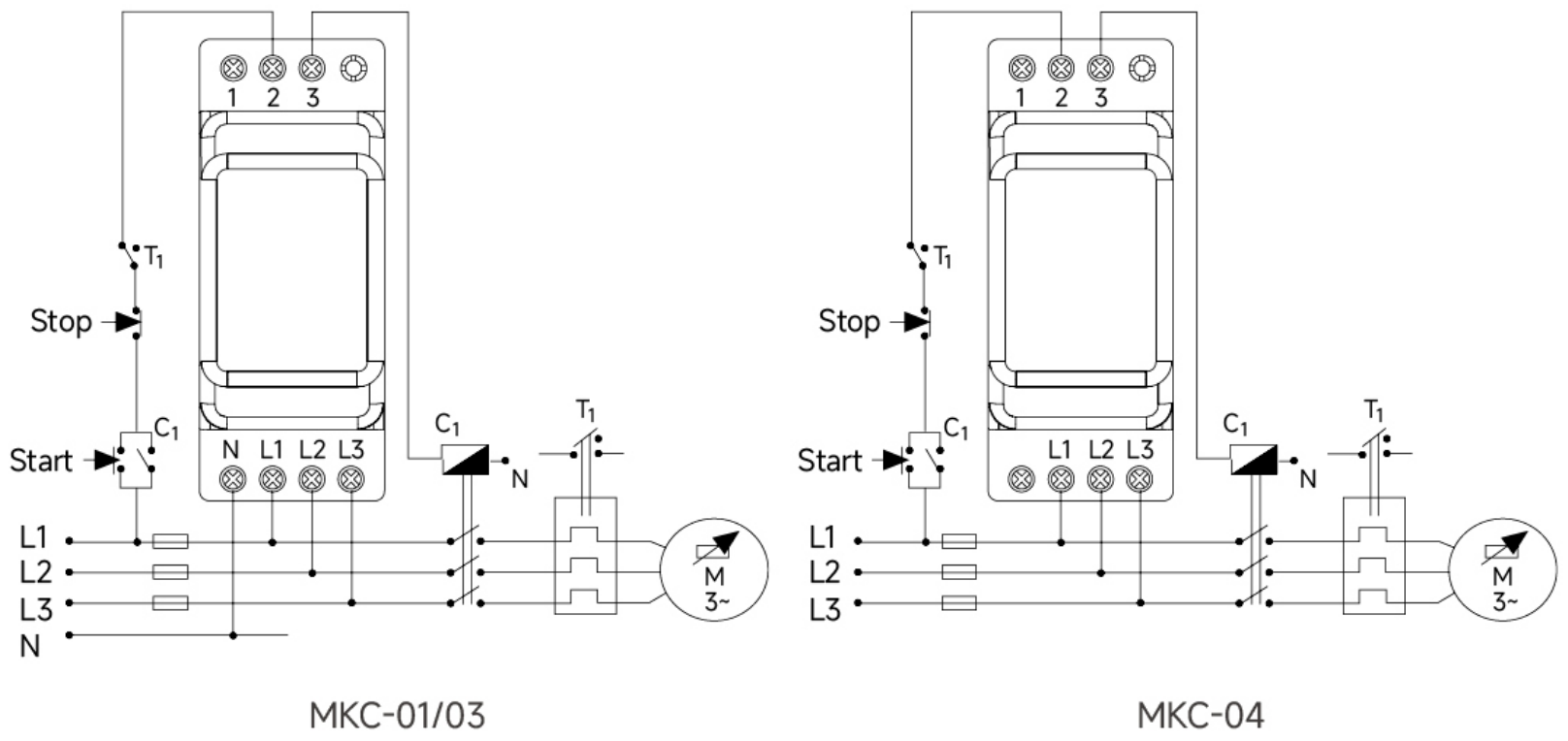

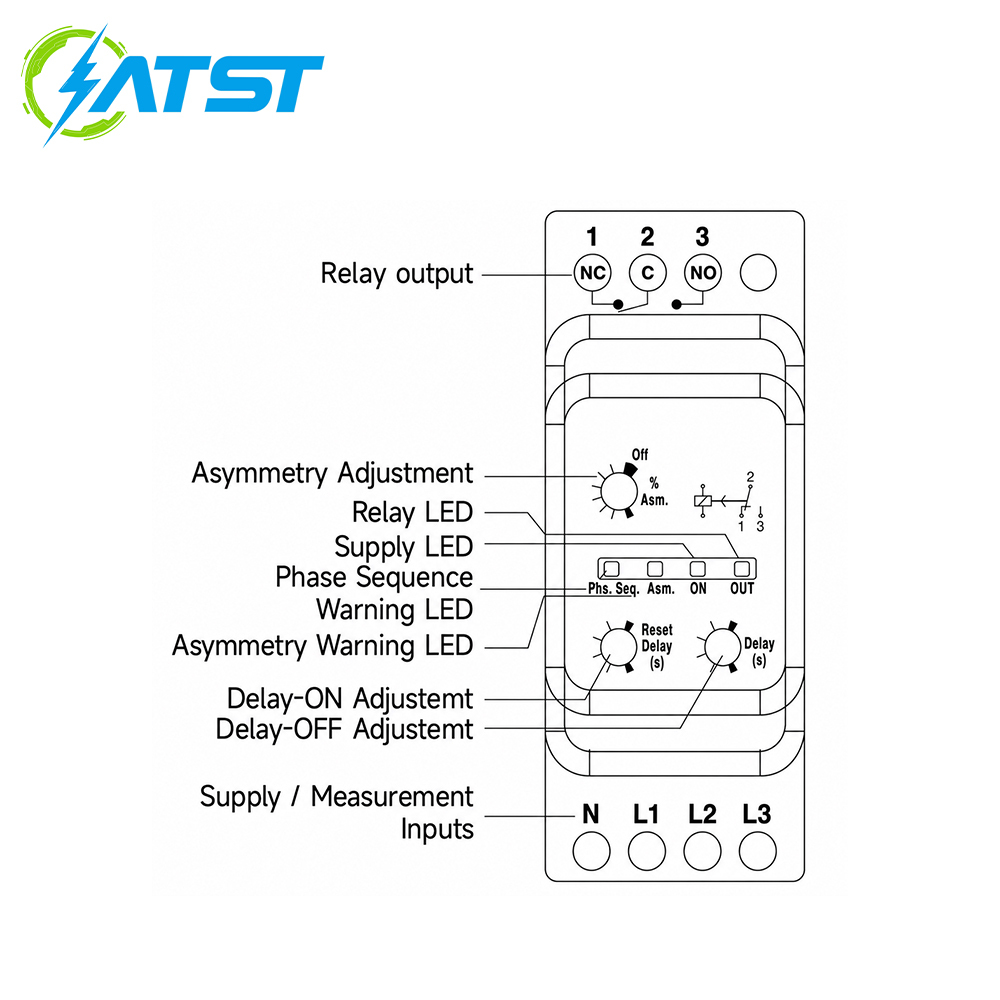

Wiring Diagram

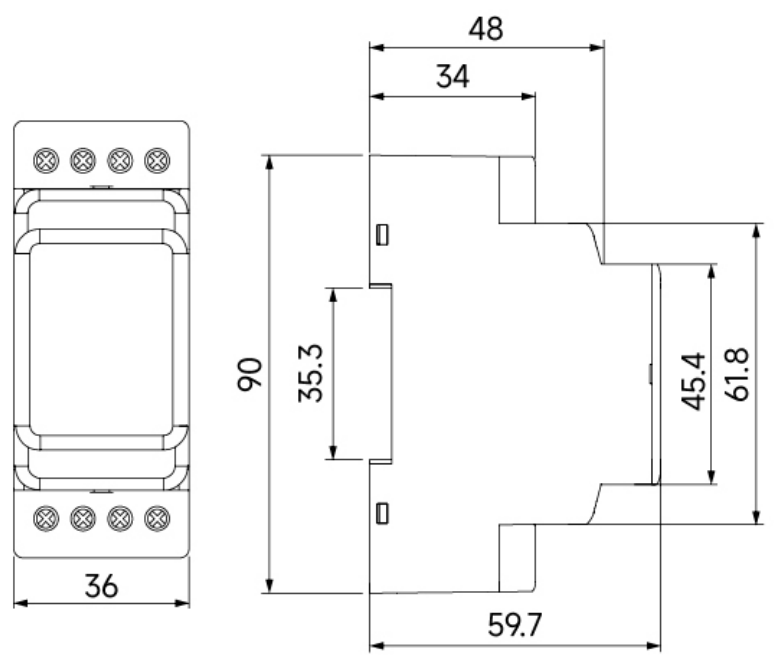

Dimensions
