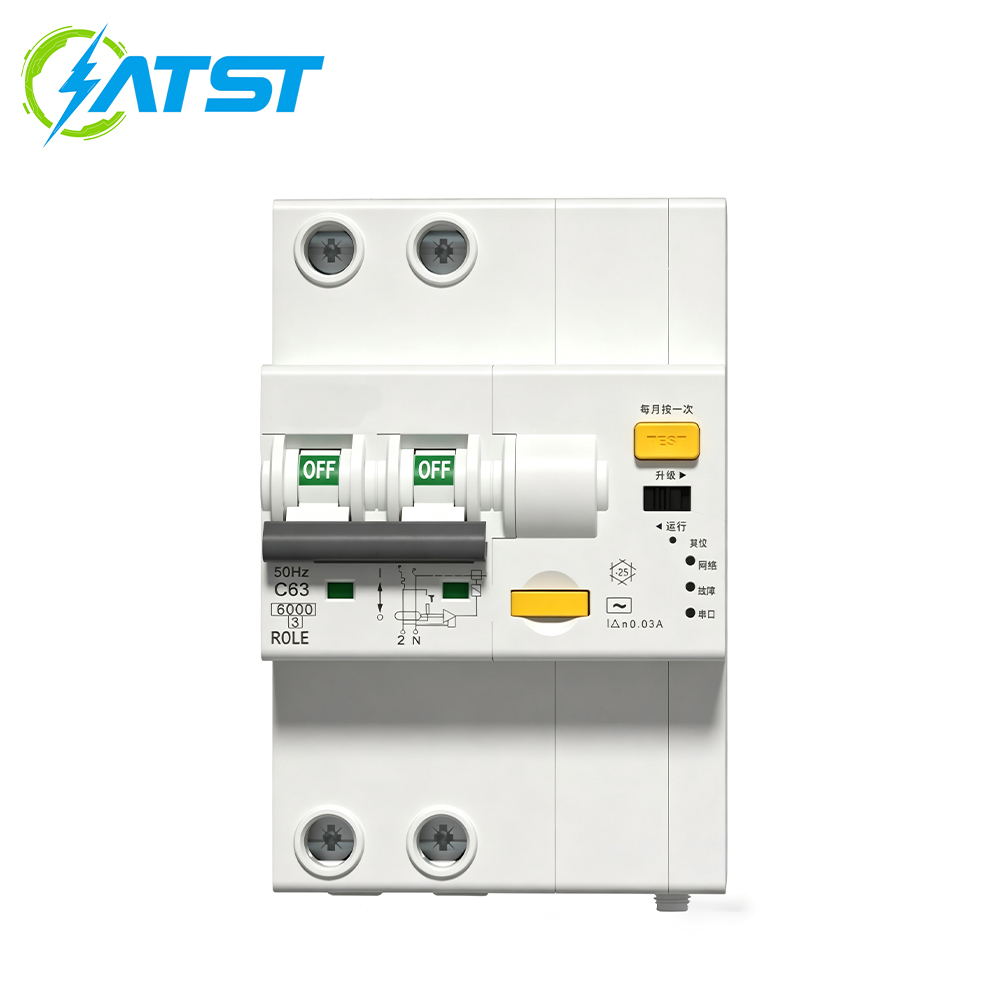

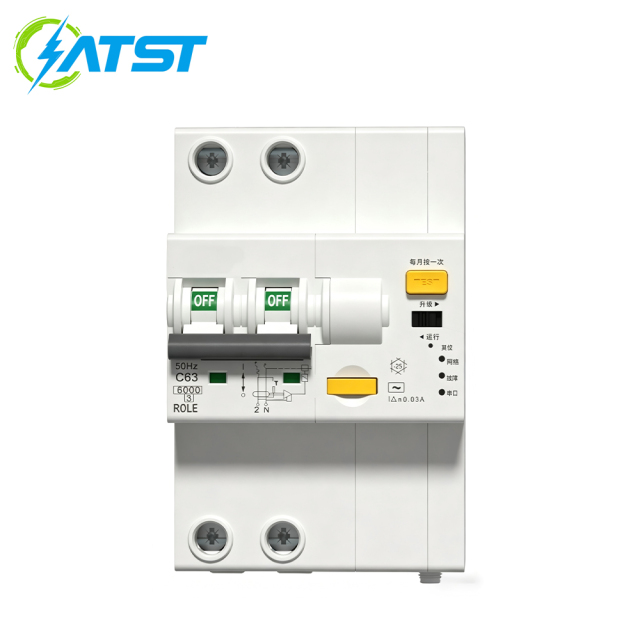

Name: R0-2P Smart Circuit Breaker
Brand: MY SHOP

Description

Product Overview

The R0-2P adopts a 2P modular design and is compatible with standard DIN rail installation, making it a new generation of intelligent circuit breakers for the mid to low end market. The product is equipped with a high-performance microprocessor, which retains basic protection functions such as overload, short circuit, and leakage, while adding real-time power monitoring and remote control capabilities. It supports Wi Fi/Bluetooth dual protocol communication and can achieve remote switching, fault alarm, and power consumption statistics through a mobile app or cloud platform. Its simple operating interface and stable performance meet the basic needs of users for intelligent upgrading of distribution systems.

Main Features

1. Complete basic protection functions
Equipped with three core protection functions of overload, short circuit, and leakage, supporting custom protection thresholds and action delays to meet the differentiated protection needs of different loads; The power-off memory function ensures that parameters are not lost and automatically operates according to the original strategy after power is restored.
2. Real time monitoring and remote control
Equipped with high-precision energy metering modules, real-time monitoring of key parameters such as voltage, current, and power; Supports Wi Fi/Bluetooth dual protocol communication, and can achieve remote power on/off, fault alarm, and power consumption statistics through a mobile app or cloud platform.
3. Simple and user-friendly interface
Adopting a combination design of LCD display screen and physical buttons, the operation is simple and intuitive; Support local parameter settings and fault queries for quick on-site troubleshooting.
4. High reliability design
Adopting UL94 V-0 flame retardant shell, capable of withstanding high temperatures up to 1300 ℃; The contact system has undergone 50000 mechanical life tests and has an IP20 protection level. It supports operation in a wide temperature range of -10 ℃ to 50 ℃, meeting the requirements of general industrial and commercial scenarios.
5. High cost-effective solutions
On the premise of ensuring basic functions, optimize product design and cost control, provide users with cost-effective intelligent distribution solutions, and lower the threshold for intelligent upgrades.

Application Scenarios

1. Commercial buildings and office spaces
Applied to power distribution circuits for office lighting, air conditioning, printers, and other loads, achieving remote switching and power consumption statistics, improving office efficiency and energy management level.
2. Smart homes and villas
As the core protection terminal of the household power distribution system, it enables remote control of household appliance switches, fault alarms, and electricity consumption statistics, improving the convenience and safety of home life.
3. Small computer rooms and data centers
Provide basic protection and remote monitoring for small servers, network devices, and other loads, ensuring stable device operation and reducing maintenance costs.
4. Retail stores and chain supermarkets
Applied to power distribution circuits for loads such as store lighting, cash register systems, refrigeration equipment, etc., to achieve remote switching and electricity statistics, improving store operation efficiency and energy management level.
5. Educational and medical institutions
Provide basic protection and remote monitoring for classroom lighting, laboratory equipment, medical instruments, and other loads to ensure stable operation of equipment and improve the quality of teaching and medical services.

Technical parameters

Poles	2P
Mounting poles	4P
Rated current	10A、16A、25A、32A、40A、50A、63A
Rated corking voltage and frequency	220/230VAC 50Hz
Breaking capacity	6KA
Type	TypeB ·TypeC ·TypeD
Standby power consumption	<3W
Communication	Cloudintelligence 4G □
	WeChat Mini Program 4G □
	TuyaWIFl □
	Rs485 ☑
Rs485 interface baud rate	9600bps
Measurement accuracy	Voltage and current accuracy of 1%, energy accuracy of 2%
Frequency range	2.412GHZ~2.4384GHZ
Leakage time	≤0.1S
Tripping time	≤0.1S
Short circuit time	≤0.04S
International Standard	GB/T16917.1-2014
Control mode	Integrated manualand automatic control
Installation requirements	The installation location's altitude should not exceed 3000m
Temperature requirements	The lower limit of ambient air temperature should not belower than -20° C, and the upper limit should not exceed +70° C
IP rating	IP20
Product size	110mm72mm75mm
Configurable parameters	power statistics ☑
	Over-voltage protection ☑
	Over-current protection ☑
	overload protection ☑
	phase loss protection ☑
	phase loss protection ☑
	over-temperature protection ☑
	leakage protection □
	leakage detection □
	grounding detection □

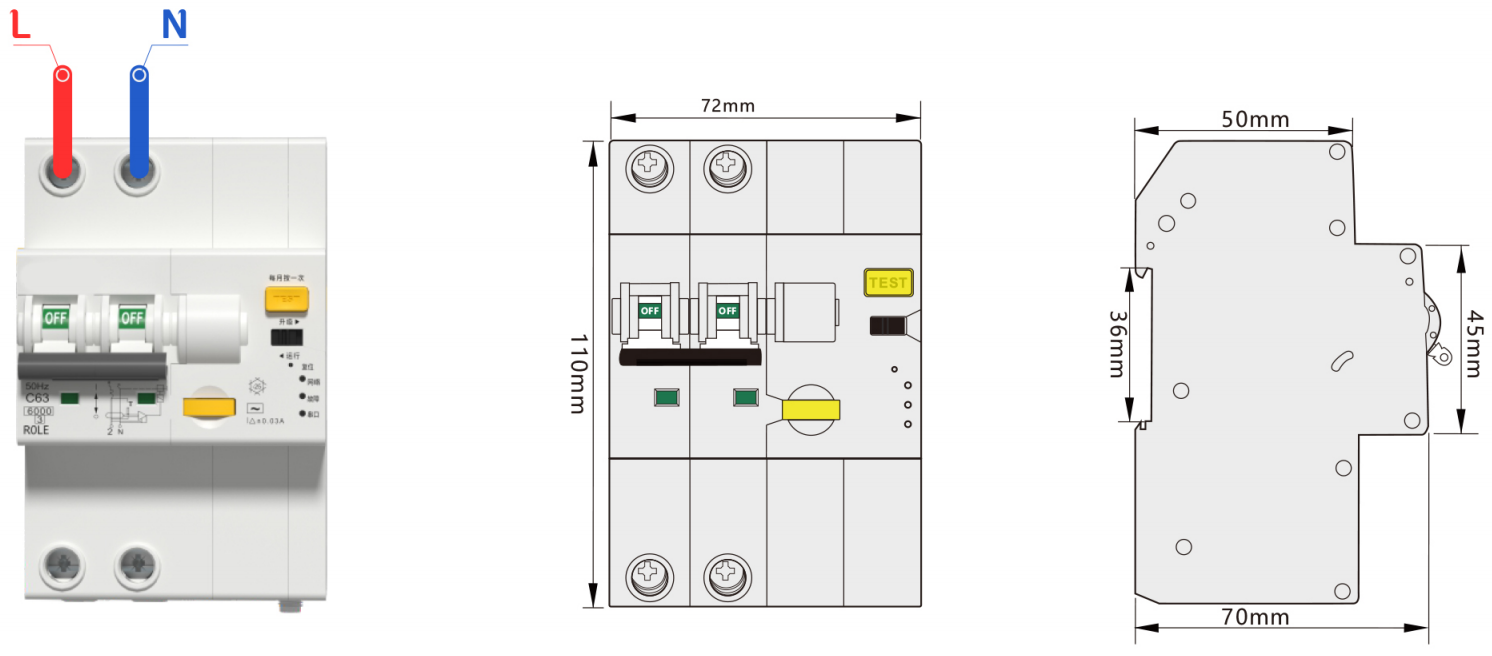

Product wiring and dimensional diagram

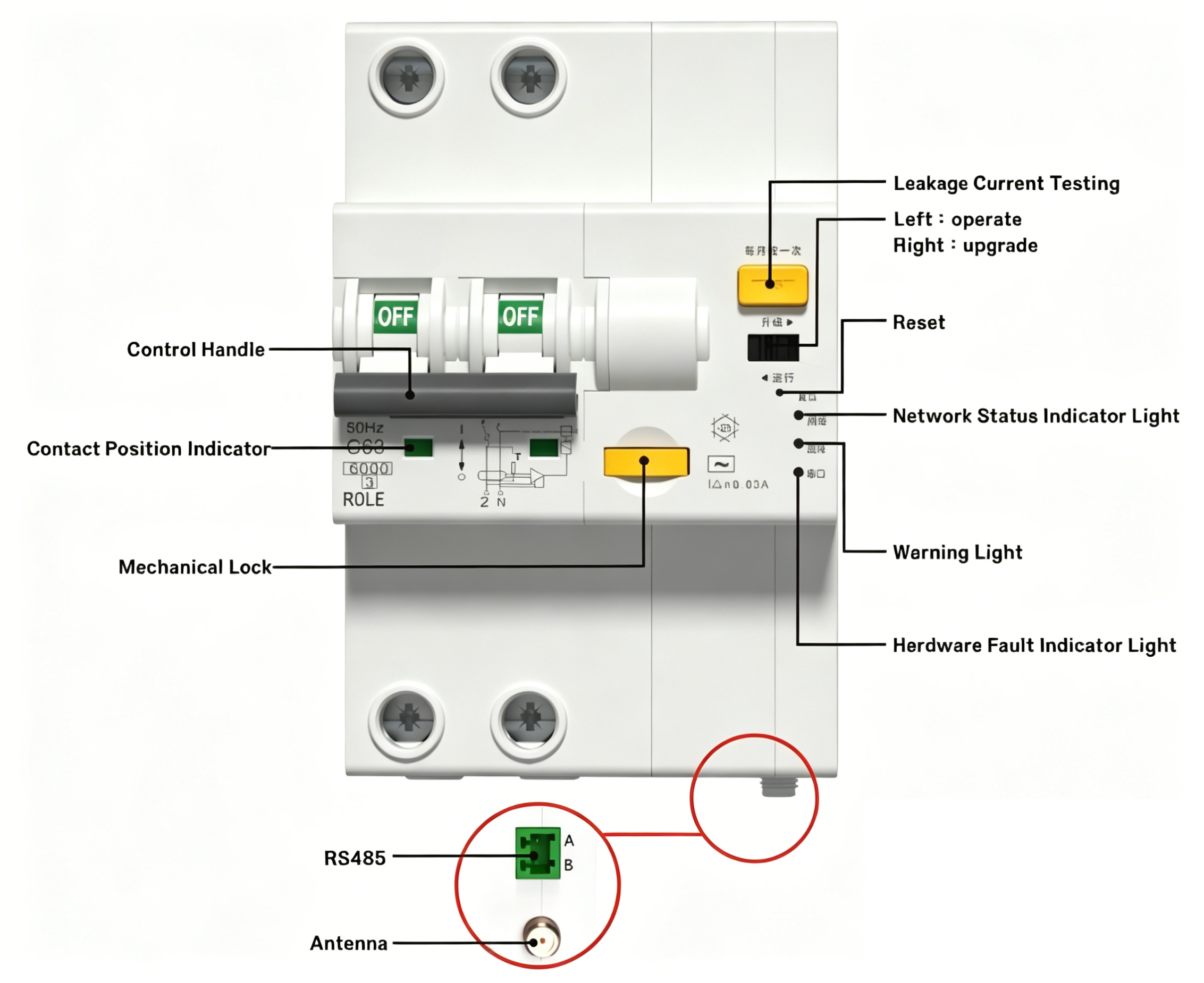

Panel diagram
