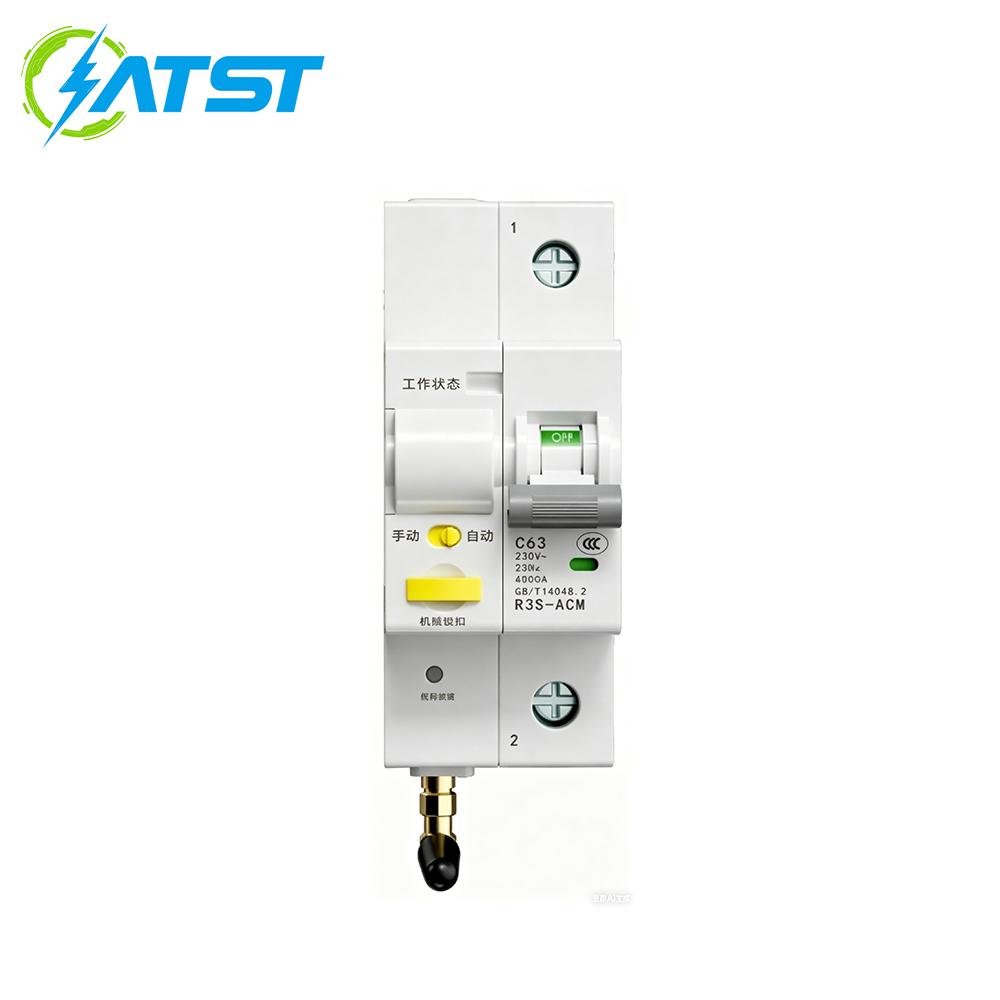

R3S-AC-C-1P is an intelligent distribution terminal specially built for single-phase core loads. It integrates AI fault prediction, edge computing and multi protocol communication capabilities to achieve a leap from "passive protection" to "active operation and maintenance". It provides a safe, efficient, and intelligent full lifecycle distribution management solution for single-phase core loads in data centers, industrial manufacturing, commercial complexes, and other scenarios, with SMART Chip as the core.

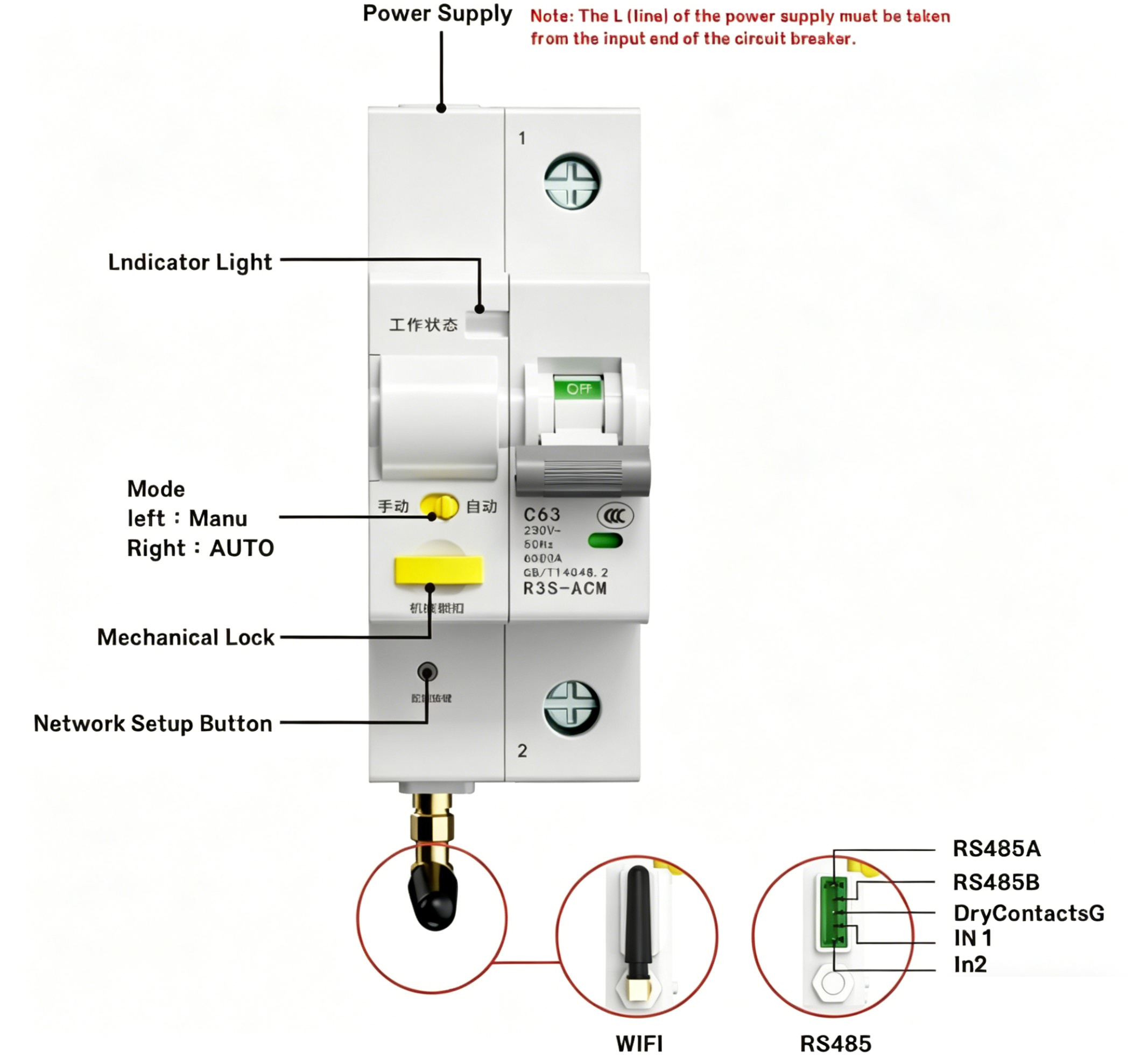

R3S-AC-C-1P is developed based on the ASCT intelligent platform and adopts a 1P modular design, suitable for standard DIN rail installation. The product is equipped with a dual core intelligent chip, which integrates comprehensive protection functions such as overload, short circuit, and leakage. It supports AI driven fault warning and self-healing control, and can identify hidden faults such as contact wear and insulation degradation 72 hours in advance. Its 0.5 level high-precision energy metering module supports time and rate statistics, with real-time display of key parameters on the local LCD screen. It is also compatible with protocols such as Matter, LoRa, NB IoT, etc., achieving local scene automation and remote monitoring coordination, meeting the requirements of single-phase distribution circuits with strict requirements for power supply reliability and data security.
Main Features
1. AI fault prediction and self-healing control Built in edge AI analysis engine, by monitoring current harmonics, temperature trends, and switch action characteristics, it can provide early warning of hidden faults, support automatic adjustment of protection thresholds or trigger preventive tripping, and reduce the risk of unplanned downtime. 2. Comprehensive electrical protection system Equipped with six major protection functions including overload, short circuit, leakage, overvoltage, undervoltage, and phase loss, supporting custom protection curves and action delays; The power-off memory function ensures that parameters are not lost and automatically operates according to the original strategy after power is restored. 3. High precision measurement and visualization interaction 0.5 level precision electric energy metering, real-time monitoring of 12 parameters including voltage, current, power, etc; The local LCD screen supports multi-dimensional data query, triggering sound and light alarms in case of faults, facilitating quick on-site troubleshooting. 4. Edge intelligence and multi protocol collaboration Native support for Matter protocol to achieve local scene automation, compatible with wide area communication such as LoRa and NB IoT, supports remote monitoring, parameter tuning, and firmware OTA upgrades. 5. Industrial grade high reliability design UL94 V-0 flame retardant shell, capable of withstanding high temperatures up to 1300 ℃; The contact system has undergone 100000 mechanical life tests and has an IP54 protection level, supporting operation in a wide temperature range of -20 ℃ to 60 ℃.
Application Scenarios
1. Data center and IDC data center Provide AI predictive protection for core single-phase loads such as server cabinets, UPS bypass, and precision air conditioning, achieve fault warning and rapid isolation, and ensure business continuity; Cabinet level energy consumption statistics help optimize PUE. 2. Industrial manufacturing and production lines The power supply circuit used for key equipment such as CNC machine tools, automated production lines, fans, and water pumps optimizes energy consumption through real-time data monitoring, while preventing voltage fluctuations and harmonic interference from causing damage to equipment and improving production efficiency. 3. Commercial complexes and hotels The main circuits of central air conditioning, elevators, lighting, etc. applied to commercial complexes support intelligent load scheduling under the time of use electricity pricing strategy, reducing operating costs; The local LCD screen facilitates quick troubleshooting by maintenance personnel and improves service efficiency. 4. New energy and energy storage systems As a grid connected protection unit for photovoltaic inverters and energy storage converters, it achieves bidirectional current monitoring and fault isolation, and adapts to the bidirectional energy flow requirements of new power systems; The high-precision metering function supports spontaneous self use and grid connected electricity statistics, meeting the requirements of power grid dispatching. 5. Smart Park and Industrial Internet As an edge sensing node, it accesses the industrial Internet platform, collects terminal power distribution data, supports the energy efficiency analysis, equipment health management and predictive maintenance of the park, and realizes the visual, intelligent and energy-saving upgrade of the power distribution system.
Technical parameters
Poles
1P
Mounting poles
2P
Rated current
10A、16A、25A、32A、40A、50A、63A、80A、100A
Rated corking voltage and frequency
220/230VAC 50Hz
Breaking capacity
6KA
Type
TypeC ·TypeD
Standby power consumption
<3W
Communication
Cloudintelligence 4G □
WeChat Mini Program 4G □
TuyaWIFl □
TuyaZIGBEE □
Rs485 ☑
Tripping time
≤0.1S
Short circuit time
≤0.04S
International Standard
GB/T14048.2-2020
Control mode
Integrated manualand automatic control

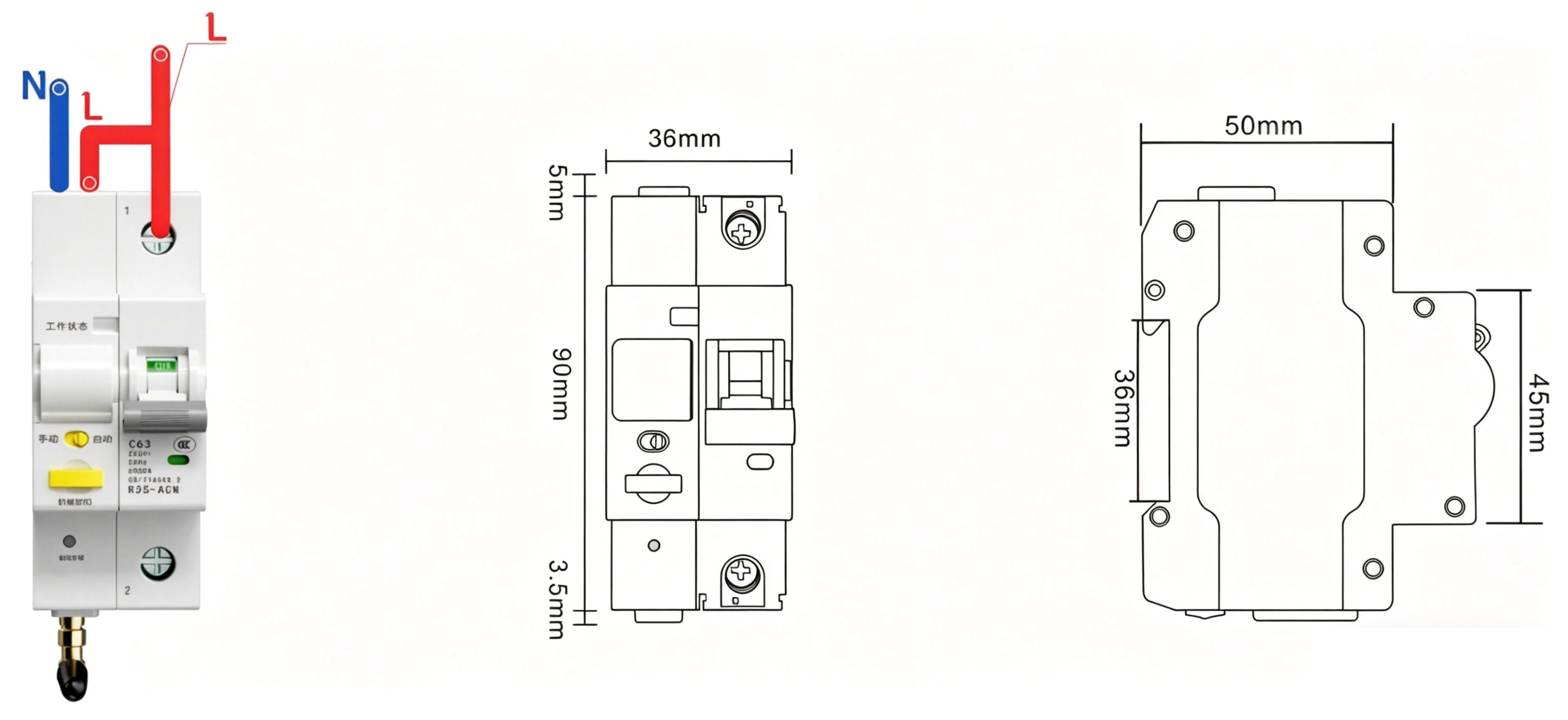

Installation requirements
The installation location's altitude should not exceed 3000m
Temperature requirements
The lower limit of ambient air temperature should not belower than -20° C, and the upper limit should not exceed +70° C
