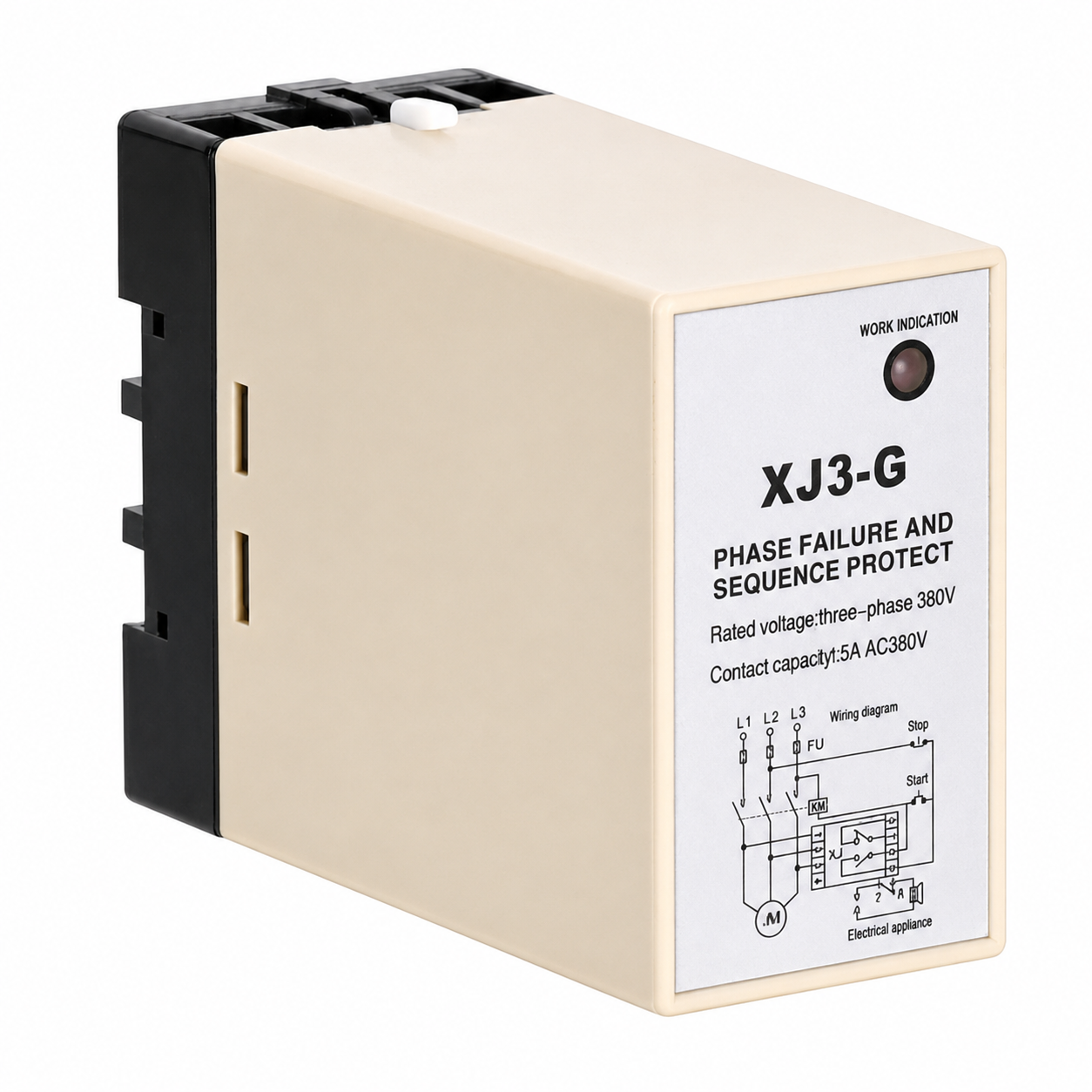

The XJ3-G Phase Failure Relay is designed for monitoring three-phase AC 380V electrical systems and providing protection against phase disconnection and phase errors. With 1NO + 1NC output contacts, long mechanical life and flexible mounting options, it is suitable for industrial control panels, motor control systems and three-phase electrical equipment.
The XJ3-G Phase Failure Relay provides continuous phase-condition monitoring for three-phase AC 380V power systems. It is designed to detect abnormal phase conditions such as phase disconnection and phase error, helping control systems respond before electrical equipment continues operating under unsuitable supply conditions. The relay provides 1 normally open and 1 normally closed contact, allowing convenient integration with contactors, motor starters and other control components. With a mechanical life of up to 1 × 10⁶ operations, an operating temperature range of −5°C to +40°C, and support for both device-type and guide-rail installation, the XJ3-G is suitable for industrial electrical control and equipment protection applications.
Main Features
Designed for three-phase AC 380V systems
Phase disconnection protection
Phase error protection
Output contacts: 1NO + 1NC
Mechanical life: 1 × 10⁶ operations
Ambient operating temperature: −5°C to +40°C
Supports device-type installation
Supports guide rail installation
Suitable for integration with contactors and control circuits
Compact design for electrical cabinets and industrial equipment
Applications
Three-Phase Motor Control Systems The XJ3-G can be integrated into motor starter and contactor circuits to monitor three-phase supply conditions and help prevent motors from continuing to operate when phase abnormalities occur. Industrial Electrical Control Panels Suitable for control cabinets where three-phase supply monitoring is required for machinery, production equipment and auxiliary electrical systems. Pumps and Compressors The relay can support phase-condition protection for three-phase pumps, compressors and other motor-driven equipment used in industrial facilities. Manufacturing Equipment XJ3-G can be used in production machinery and automated equipment requiring reliable three-phase supply monitoring. Power Distribution and Control Cabinets Suitable for installation in low-voltage control and distribution cabinets to supervise phase conditions in AC 380V circuits. HVAC and Building Equipment The relay can also be used in three-phase fans, pumps and other building electrical equipment where phase disconnection or incorrect phase conditions may affect reliable operation. The XJ3-G Phase Failure Relay provides a practical solution for three-phase AC 380V phase monitoring, combining phase disconnection and phase error protection with flexible contact outputs and convenient installation for industrial electrical control applications.
